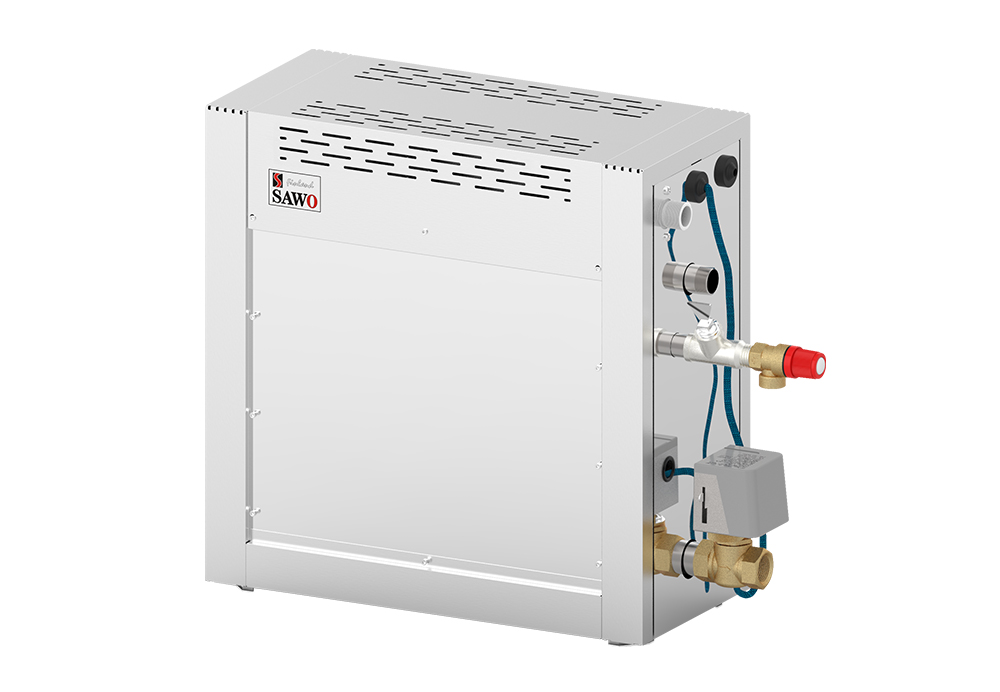

STN Steam Generator

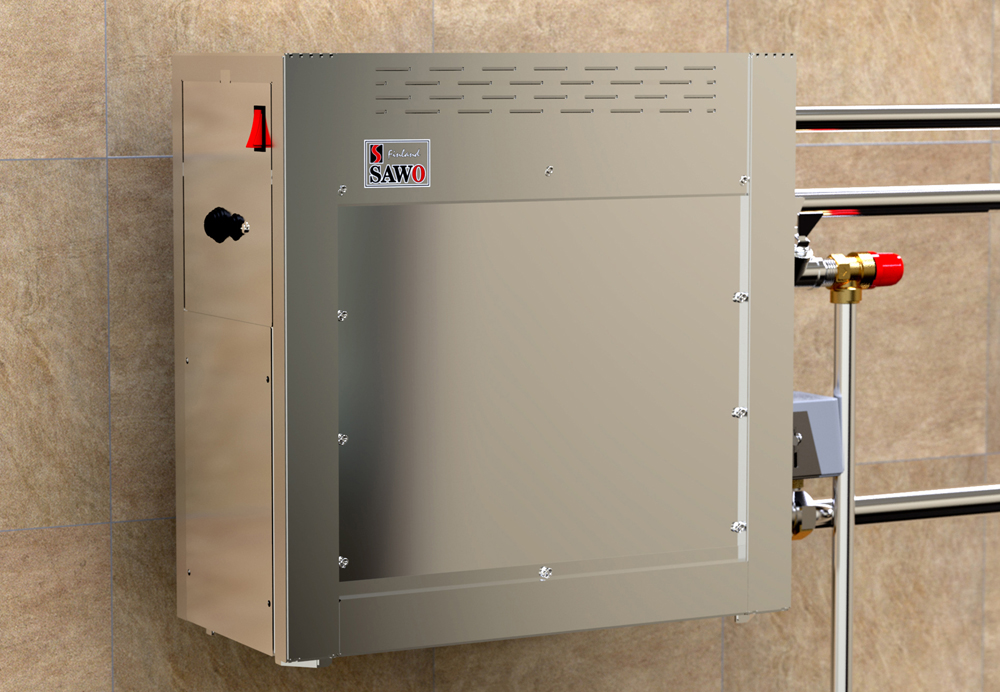

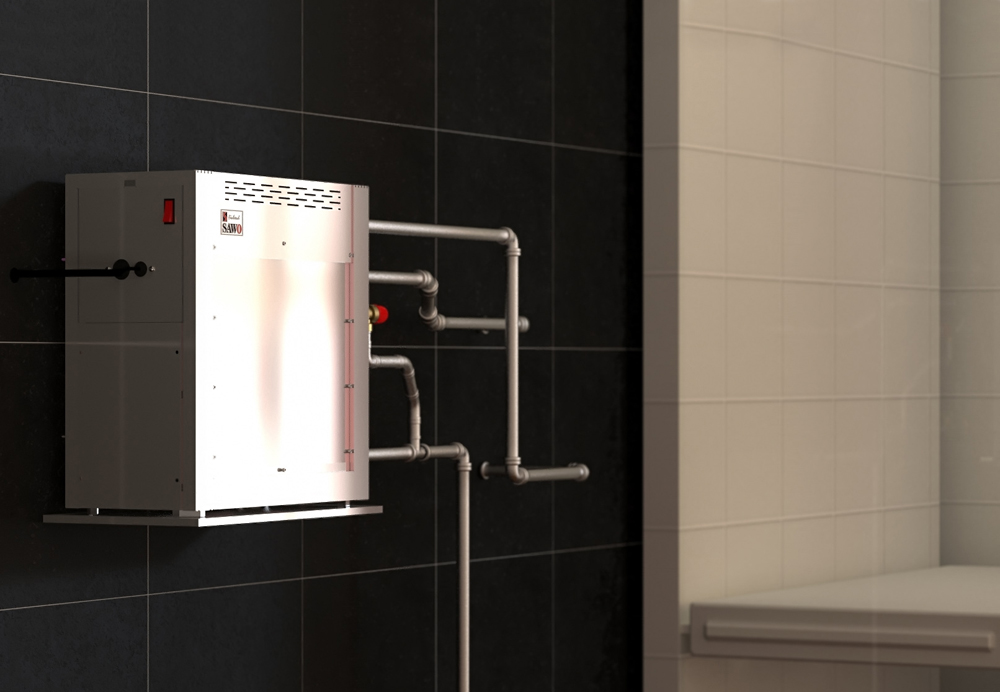

The STN steam generators are the successor of STPs. Same as its predecessor, it is made from stainless steel sheet inside and outside providing long-lasting strength and durability. This redesigned steam generator is now with 3/4 inch steam pipe, a dedicated pipe for the overpressure steam valve, steam pipe installation can now be either left or right as the wall mounting is reversible, are among the updates.

Still packed with a temperature sensor, snap-in connection control unit, steam head and autodrain. Compatible with Stainless Steel Touch control, Classic control and Classic 2.0 control.

STN steam generators are available as 2 heating elements (3-5kW), 3 heating elements (4.5-7.5kW) and 6 heating elements (9-15kW). Kilowatt ratings of steam generators depend on the size of the steam rooms.

Steam Generators:

Technical Data

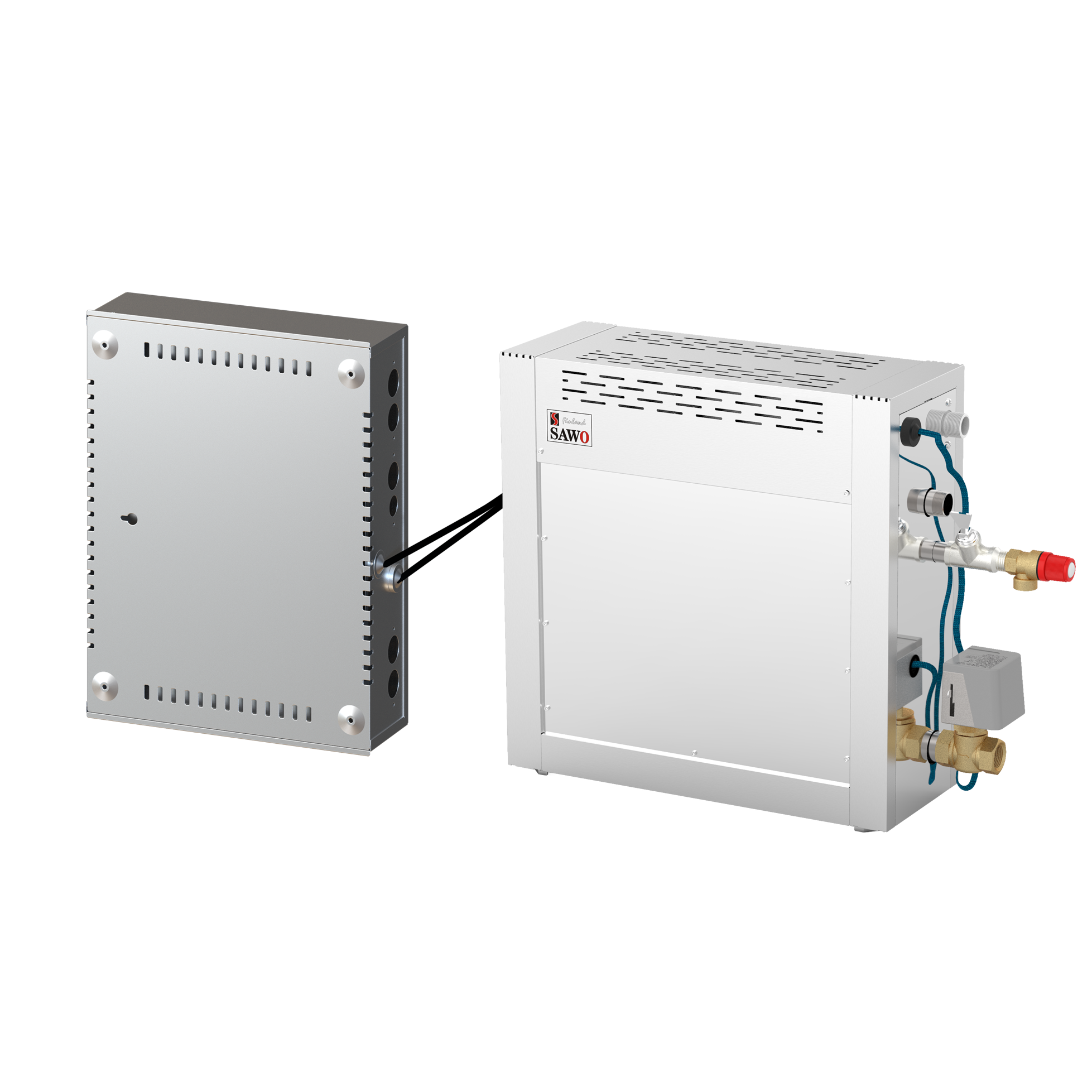

2 Heating Elements

Model Name Power
(kW)
Steam Room
Volume (m3)
Supply
Voltage (V)
Current (A) Phase Wire Size
(mm2)
Size (mm)
WIDTH DEPTH HEIGHT
Weight
STN-30-1/2 3 3 max 220-240
380-415
14
8
1N
2N
2,5
2,5
560 – 185 – 485 17
STN-35-1/2 3,5 3,5 max 220-240
380-415
16
19
1N
2N
2,5
2,5
560 – 185 – 485 17
STN-40-1/2 4 4 max 220-240
380-415
18
10
1N
2N
4
2,5
560 – 185 – 485 17
STN-45-1/2 4,5 2 – 5 220-240
380-415
20
12
1N
2N
4
2,5
560 – 185 – 485 17
STN-50-1/2 5 2 – 6 220-240
380-415
22
8
1N
2N
4
2,5
560 – 185 – 485 17

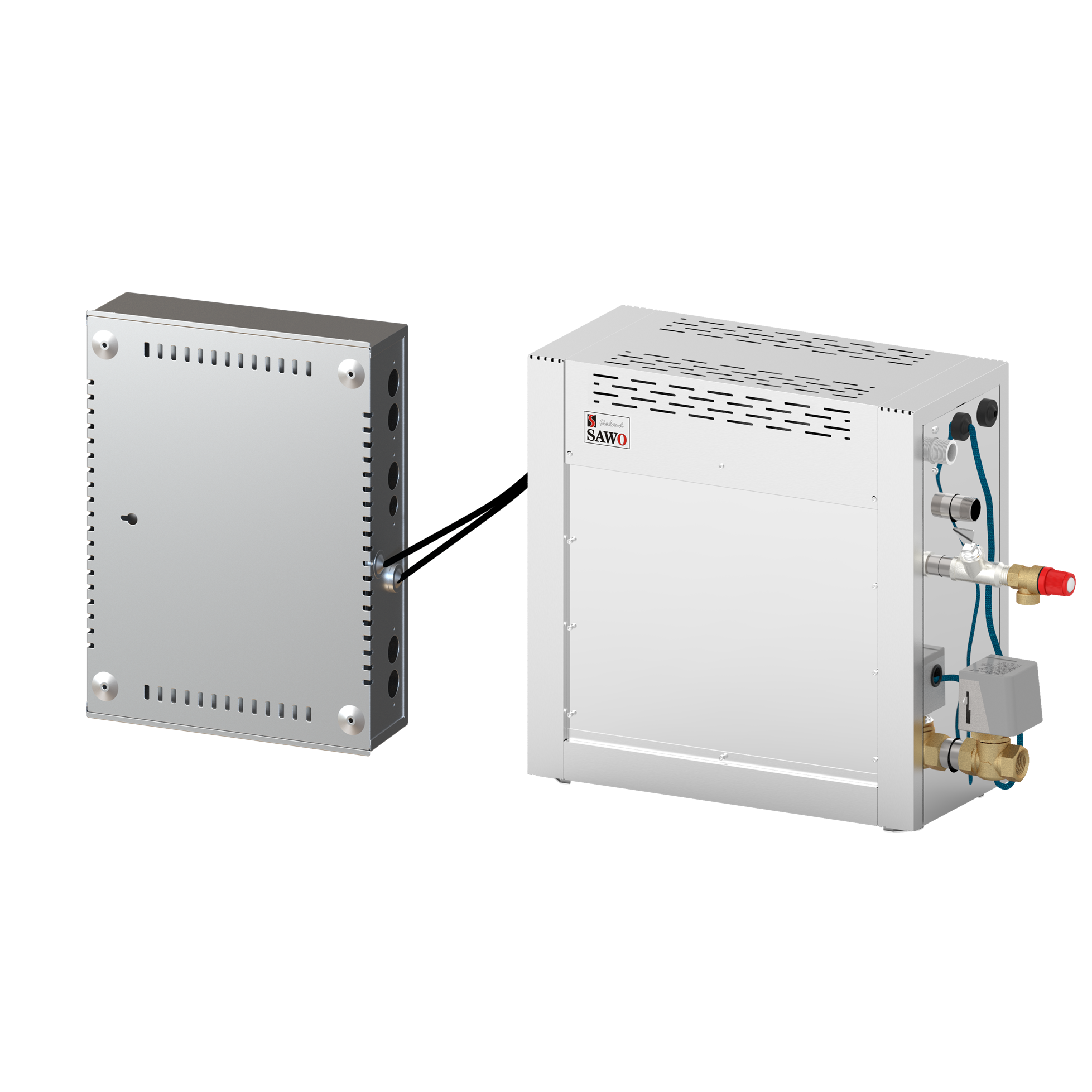

3 Heating Elements

Model Name Power
(kW)
Steam Room
Volume (m3)
Supply
Voltage (V)
Current (A) Phase Wire Size
(mm2)
Size (mm)
WIDTH DEPTH HEIGHT
Weight
STN-45-3 4,5 2 – 5 380-415 7 3N 2,5 560 – 220 – 485 19
STN-60-3 6 3 – 10 380-415 9 3N 2,5 560 – 220 – 485 19
STN-60-1/3 6 3 – 10 220-240
380-415
27
9
1N
3N
6
2,5
560 – 220 – 485 19
STN-75-3 7,5 4 – 15 380-415 11 3N 2,5 560 – 220 – 485 19
STN-75-1/3 7,5 4 – 15 220-240
380-415
13
11
1N
3N
8
2,5
560 – 220 – 485 19

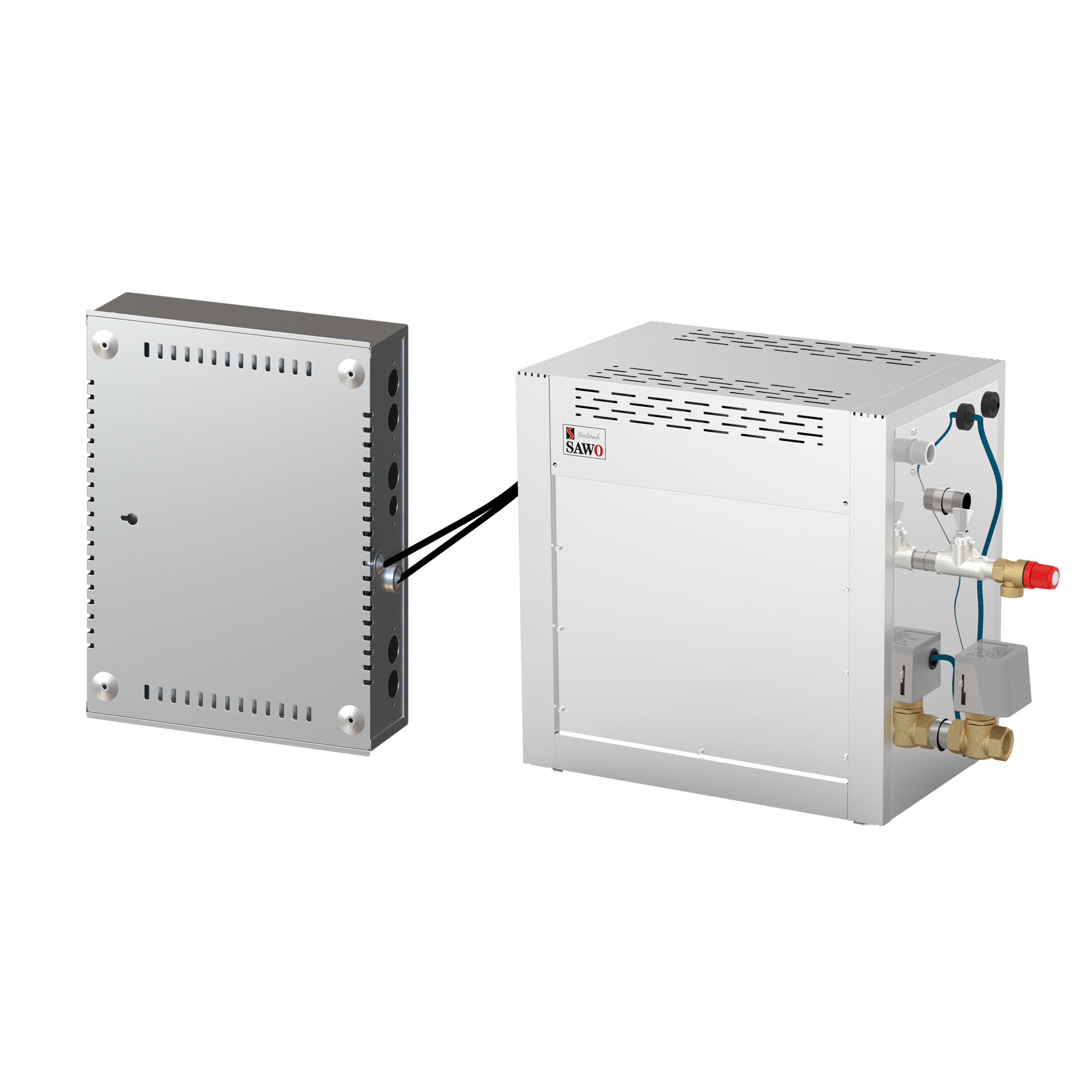

6 Heating Elements

Model Name Power
(kW)
Steam Room
Volume (m3)
Supply
Voltage (V)
Current (A) Phase Wire Size
(mm2)
Size (mm)
WIDTH DEPTH HEIGHT
Weight
STN-90-3 9 8 – 20 380-415 13 3N 2,5 560 – 310 – 485 23
STN-90-C1/3 9 8 – 20 220-240
380-415
40
13
1N
3N
10
2,5
560 – 310 – 485 23
STN-120-3 12 15 – 28 380-415 18 3N 4 560 – 310 – 485 23
STN-150-3 15 22 – 40 380-415 22 3N 4 560 – 310 – 485 23
