STE-W Steam Generator

STE-W steam generators are ideal for residential use. They feature straightforward functions and are easy to operate by simply switching on the control and adjusting the temperature knob.

The STE-W is constructed using stainless steel to minimize corrosion, and it can be installed with the steam outlet facing either left or right, depending on your desired placement. Like the STN-W, the STE-W can be connected in series—up to five units controlled by a single panel—to achieve a maximum power output of 75kW.

Specifications

Technical Data

2 Heating Elements

Model NamePower
(kW)		Steam Room
Volume (m3)		Supply
Voltage (V)		Current (A)PhaseWire Size
(mm2)		Size (mm)
Width Depth Height		Weight
STE-W-30-1/233 max220-240
380-415		14
8		1N
2N		2.5
2.5		525 – 175 – 4109
STE-W-35-1/23.53.5 max220-240
380-415		16
19		1N
2N		2.5
2,5		525 – 175 – 4109
STE-W-40-1/244 max220-240
380-415		18
10		1N
2N		4
2.5		525 – 175 – 4109
STE-W-45-1/24.52 – 5220-240
380-415		20
12		1N
2N		4
2.5		525 – 175 – 4109
STE-W-50-1/252 – 6220-240
380-415		22
8		1N
2N		4
2.5		525 – 175 – 4109

3 Heating Elements

Model NamePower
(kW)		Steam Room
Volume (m3)		Supply
Voltage (V)		Current (A)PhaseWire Size
(mm2)		Size (mm)
Width Depth Height		Weight
STE-W-45-C1/34.52 – 5220-240
380-415		71N
3N		2.5525 – 200 – 41010
STE-W-60-C1/363 – 10220-240
380-415		27
9		1N
3N		6
2.5		525 – 200 – 41010
STE-W-75-C1/37.54 – 15220-240
380-415		13
11		1N
3N		8
2.5		525 – 200 – 41010

6 Heating Elements

Model NamePower
(kW)		Steam Room
Volume (m3)		Supply
Voltage (V)		Current (A)PhaseWire Size
(mm2)		Size (mm)
Width Depth Height		Weight
STE-W-90-C1/398 – 20220-240
380-415		40
13		1N
3N		10
2.5		525 – 290 – 41013
STE-W-120-31215 – 28380-415183N4525 – 290 – 41013
STE-W-150-31522 – 40380-415223N4525 – 290 – 41013

SAWO STE-W Steam Generator Manual

Easy Install

Modern Casing

Power Controller

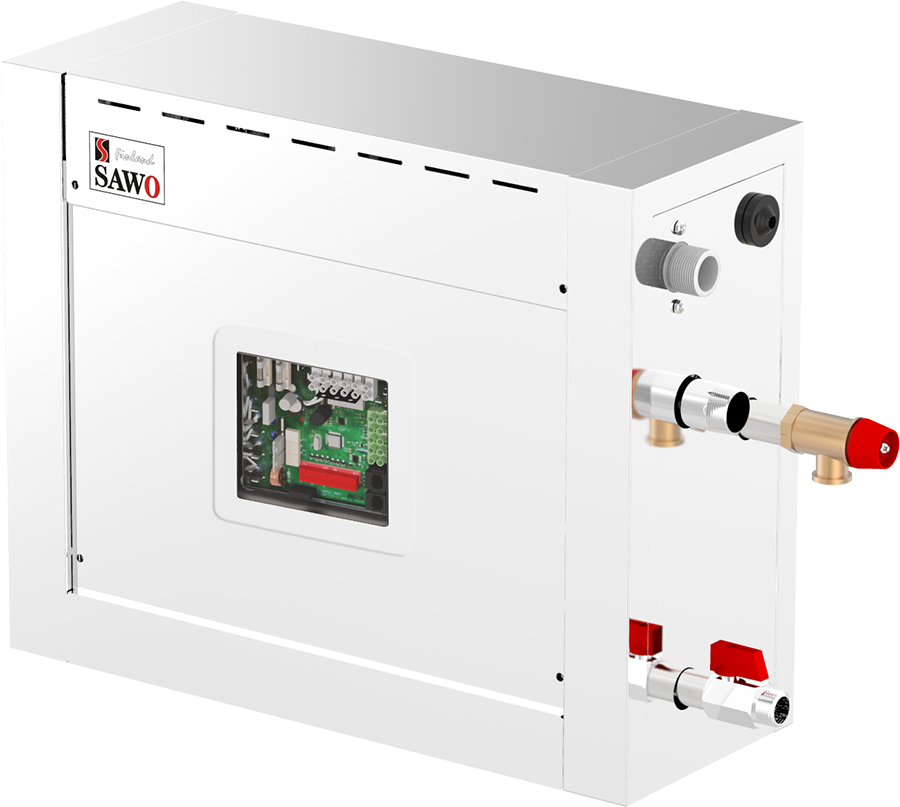

STW E 2H

2 Heating Elements

» Steam output up to 6.7kg/hr
» Dedicated pipe for overpressure valve
» Steam head included
» 3kW – 5kW

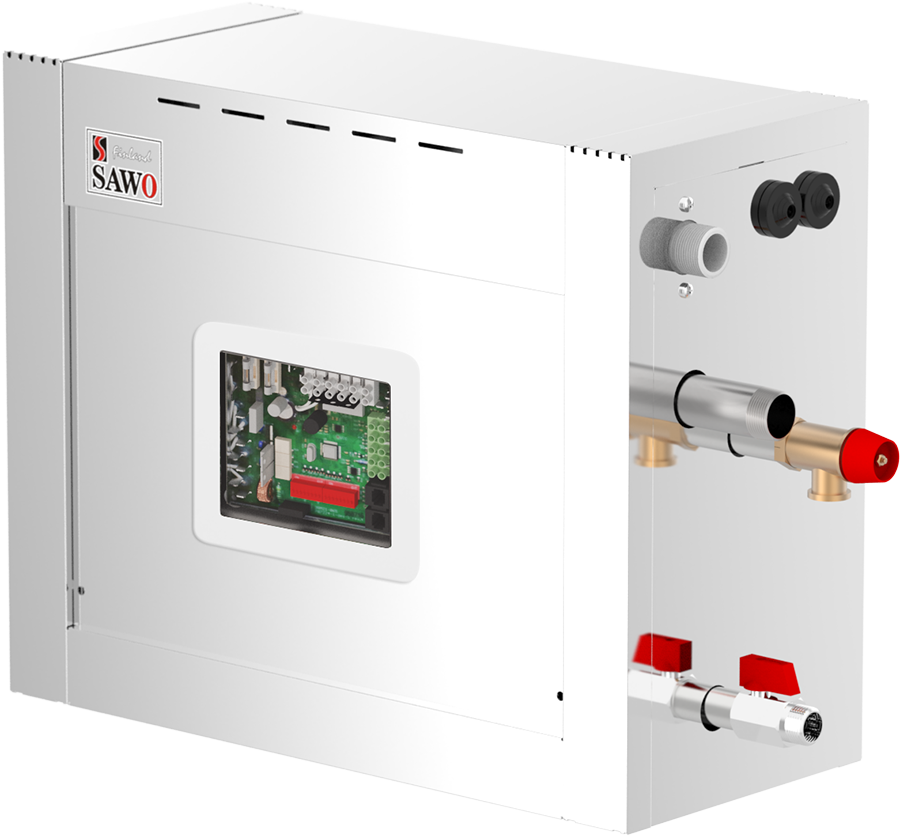

STW E 3H

3 Heating Elements

» Steam output up to 7.5kg/hr
» Dedicated pipe for overpressure valve
» Steam head included
» 4.5kW – 7.5kW

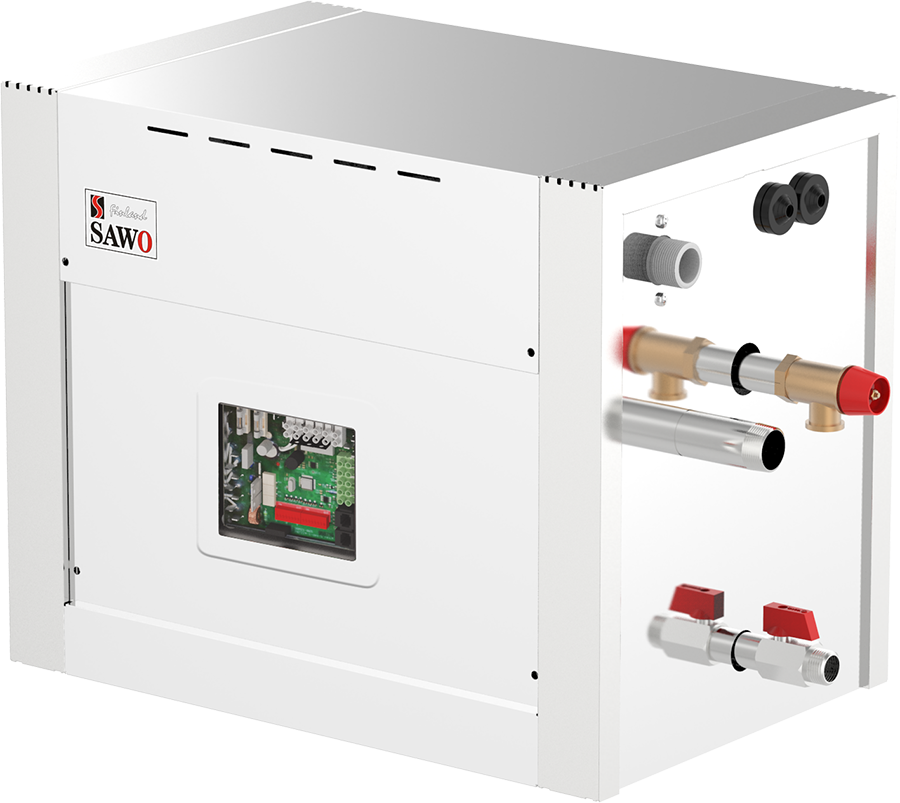

STW E 6H

6 Heating Elements

» Steam output up to 20kg/hr
» Dedicated pipe for overpressure valve
» Steam head included
» 9kW – 15kW

INCLUDED IN THE PACKAGE

Temperature Sensor

Temperature sensor with
wire and sensor holder

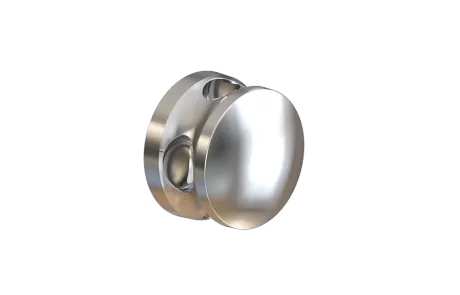

Steam Head

Steam Head

RJ12 Cable

7.5m RJ12 cable
7.5m RJ10 cable
