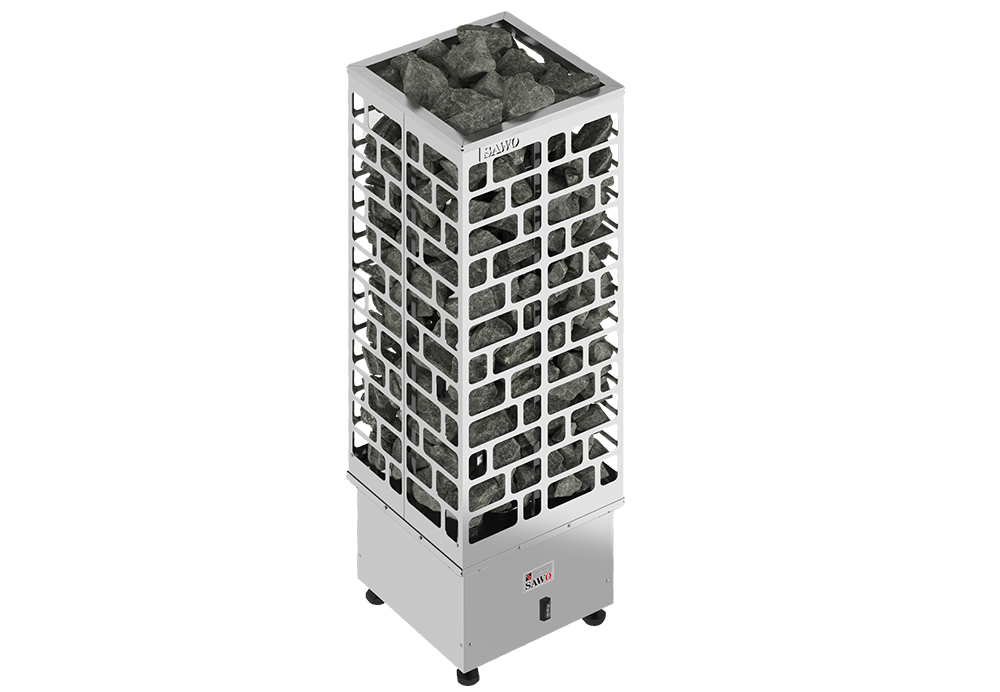

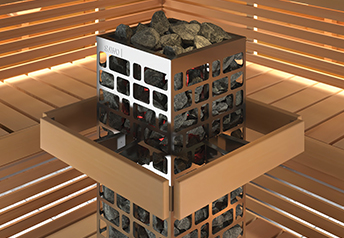

Cubos is a 3 in 1 heater! It can be placed in the middle, corner or wall of the sauna room. Additional protective covers will add support for wall and corner installation. This modern and versatile heater is one of a kind.

Cubos is also available with Saunova 2.0 control (Ni2). Ni2 heaters are effortless to install, easy and energy-efficient to use. Perfect choice for modern saunas.

Tower Series:

Cubos Protective Covers

Wall Installation
Wall Installation(Stainless Steel Protective Cover)

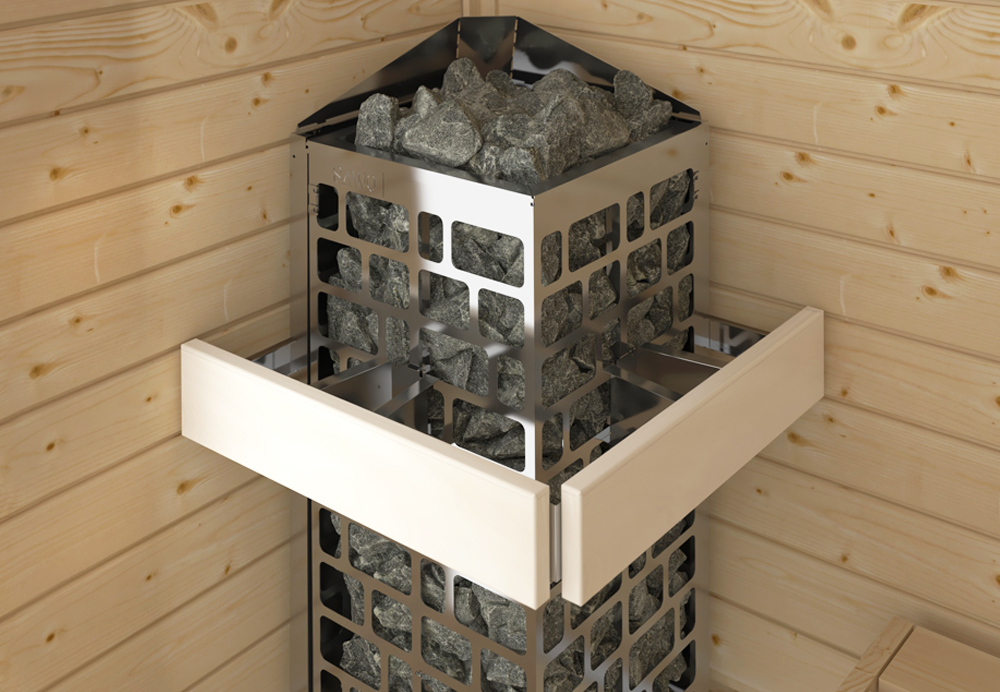

Corner Installation
Corner Installation(Stainless Steel Protective Cover)

Guards and Collars

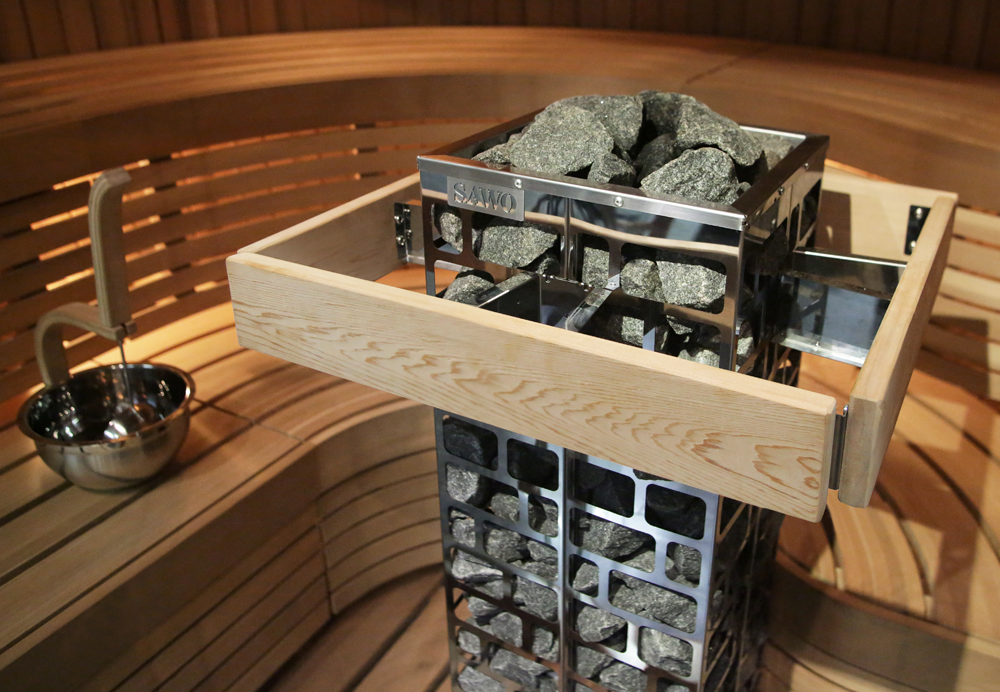

Middle Installation Wooden Guard Rail
Middle Installation Wooden Guard Rail(Cedar or Aspen)
Wall Installation Wooden Guard Rail
Wall Installation Wooden Guard Rail(Cedar or Aspen)
Corner Installation Wooden Guard Rail
Corner Installation Wooden Guard Rail(Cedar or Aspen)

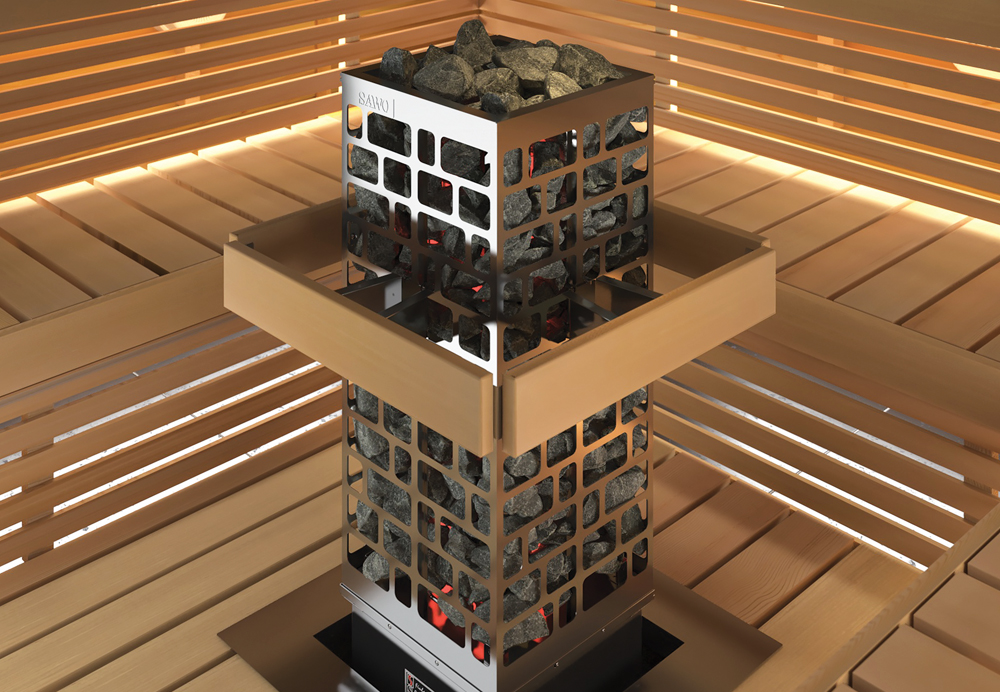

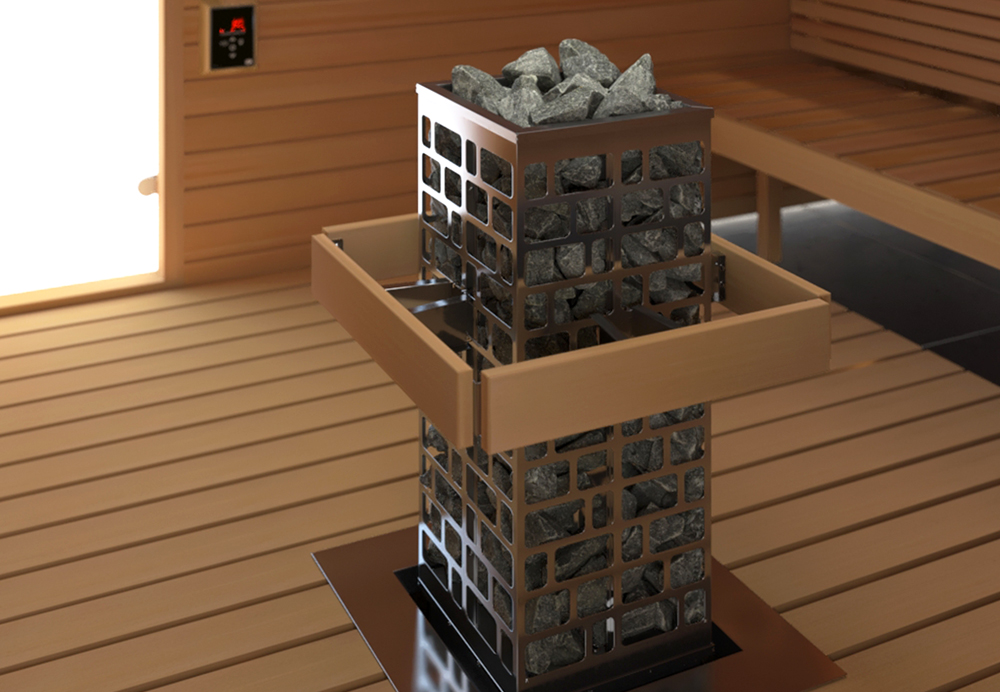

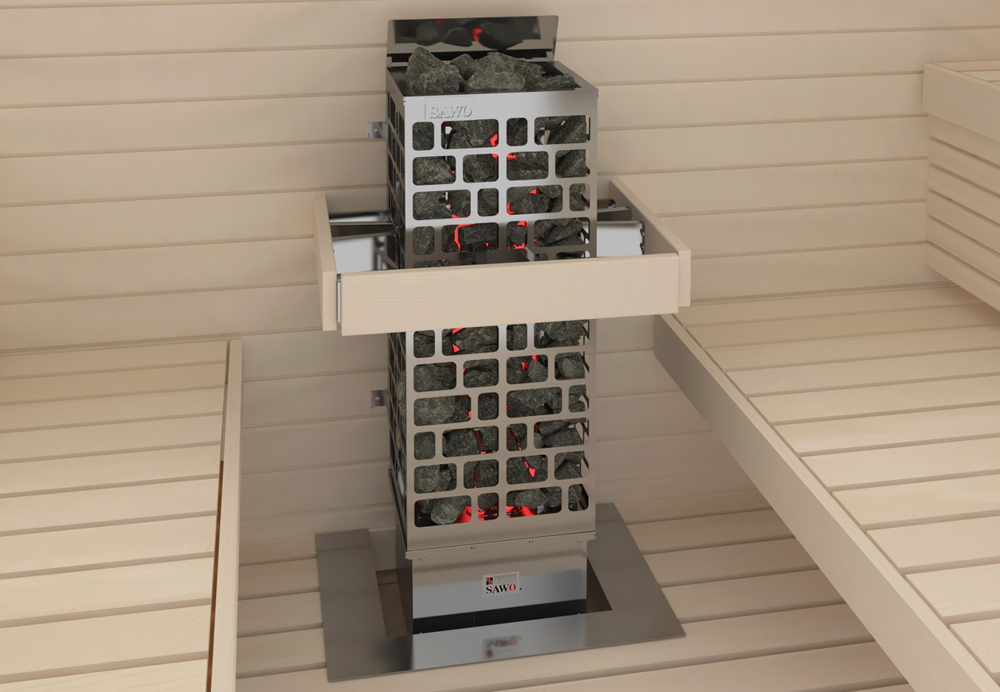

Middle Installation
Middle Installation(Stainless Integration Collar)
Wall Installation
Wall Installation(Soapstone Integration Collar)
Corner Installation
Corner Installation(Cedar or Aspen Wooden Integration Collar)

Technical Data

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stone
(kG)
CUB3-45NB 4,5 3 – 6 8+4h 290 – 290 – 930 75
CUB3-60NB 6 5 – 9 8+4h 290 – 290 – 930 75
CUB3-75NB 7,5 7 – 13 8+4h 290 – 290 – 930 75
CUB3-90NB 9 8 – 14 8+4h 290 – 290 – 930 75
CUB3-45NS 4,5 3 – 6 separate 290 – 290 – 930 75
CUB3-60NS 6 5 – 9 separate 290 – 290 – 930 75
CUB3-75NS 7,5 7 – 13 separate 290 – 290 – 930 75
CUB3-90NS 9 8 – 14 separate 290 – 290 – 930 75

Compatible control: Saunova 2.0

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stone
(kG)
CUB3-45Ni2 4,5 3 – 6 Saunova 2.0 290 – 290 – 930 75
CUB3-60Ni2 6 5 – 9 Saunova 2.0 290 – 290 – 930 75
CUB3-75Ni2 7,5 7 – 13 Saunova 2.0 290 – 290 – 930 75
CUB3-90Ni2 9 8 – 14 Saunova 2.0 290 – 290 – 930 75
