Power Range: 4.5 – 9kW

Helius Mini

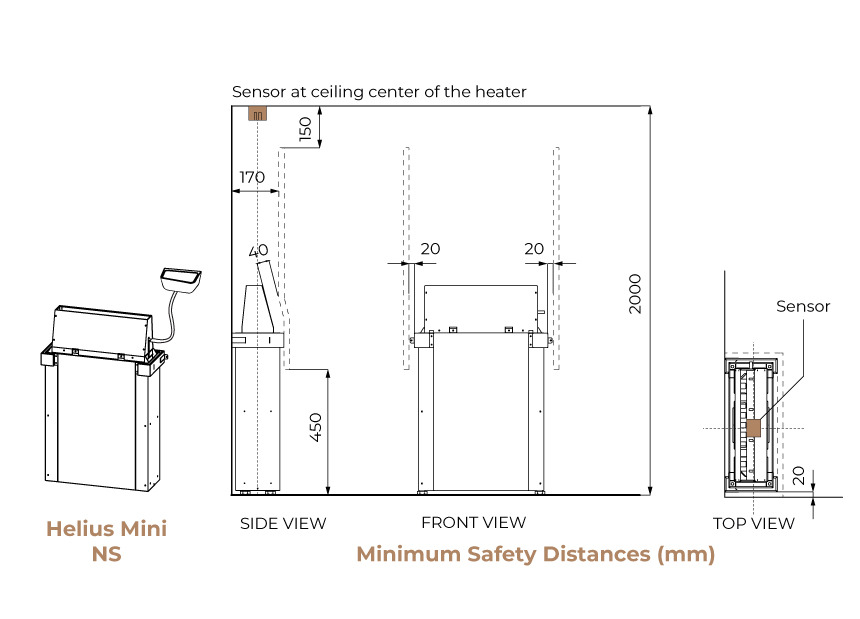

The The Helius Mini delivers the same Innovation as the Helius in a more compact form. It can be discreetly Installed behind the benches, completely out of sight with a minimal safety distance. Its hood is made for its usage as a hidden heater. Combined with its powerful performance, It is thoughtfully engineered to evenly heat up smaller spaces.

» Power range: 2,0 – 3.0kW

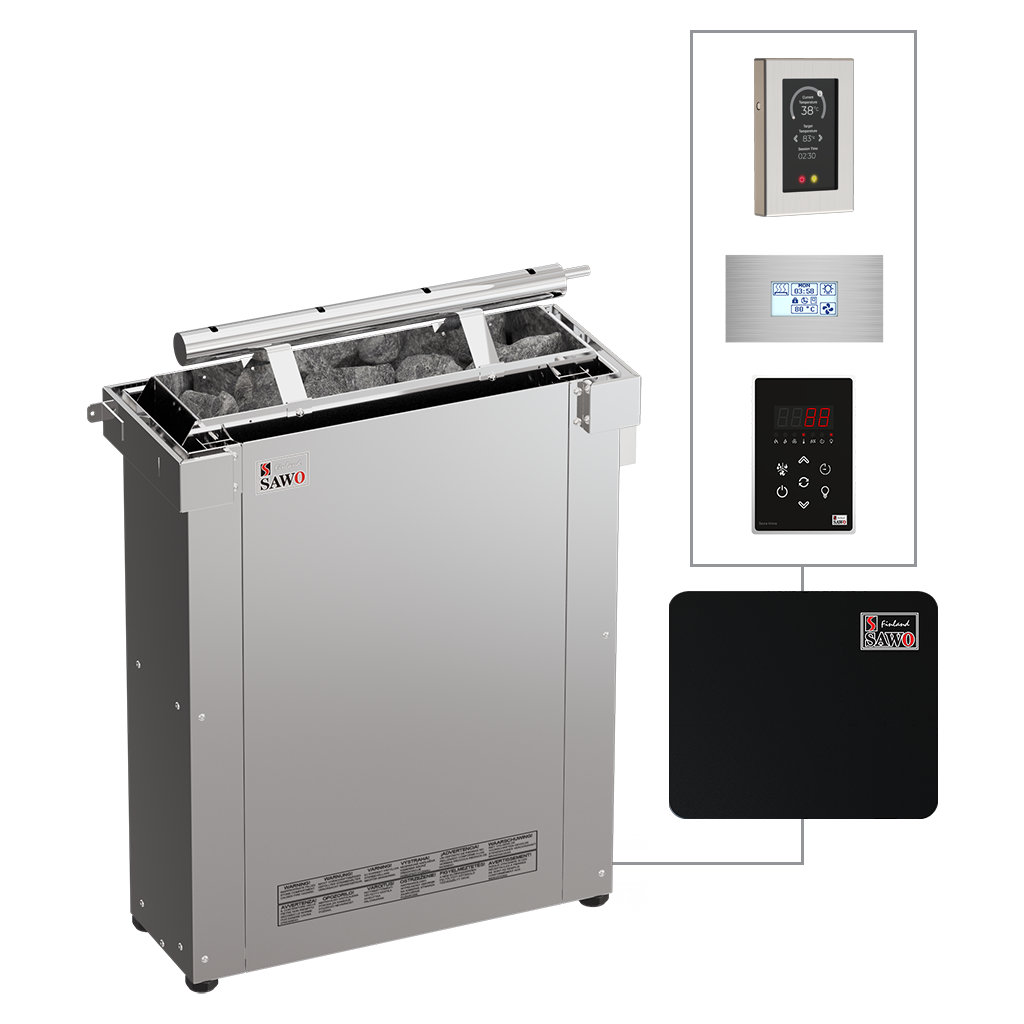

» Available controls: Saunova/Innova (NS)
» Separate soapstone water basin with hose
» Optional heater guard and hood

Inquire

Specifications

Technical Data

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg)	Control
HES-MN-20NS-Z	2.0	1.5 – 2.5	190 x 480 x 480	17	Separate
HES-MN-27NS-Z	2.7	2.0 – 3.5	190 x 480 x 480	17	Separate
HES-MN-30NS-Z	3.0	2.0 – 4.0	190 x 480 x 480	17	Separate

Resources

Helius Mini Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

Helius Hood

(Stainless Steel)

Sauna Stones

(Size: 20kg)

Sauna Stones Olivine Diabase Rounded (20kg)Traditional rounded stones designed for sauna heaters. Their weight and density provide excellent heat retention and steady steam release, available in size ranges of 3–10cm and 8–15cm.

CODE	SIZE	USE
R-980	3-10cm	Normal electric sauna heater
R-981	8-15cm	Large wood burning and gas heaters

Decorative Stones

(Size: 10kg)

Decorative Sauna Stones White Quartz Rounded (10kg)White quartz stones used as an accessory to complement sauna stones. They add a bright, elegant decorative touch to the sauna setup without replacing the primary heating stones, available in size ranges of 3–10cm and 8–15cm.

CODE	SIZE	USE
R-982	3-10cm	All heaters
R-983	8-15cm	All heaters

Model	Size of Hood (mm)
Model	Length	Width	Height
HP68-009	405	115	170

Helius Mini
