Power Range: 4.5 – 9kW

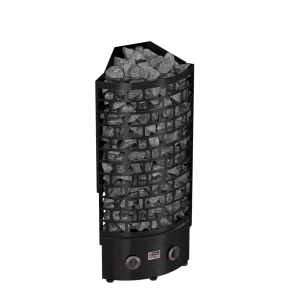

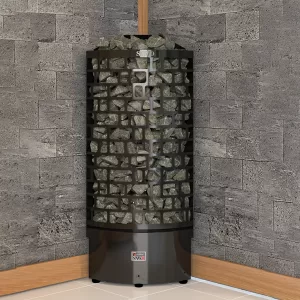

Aries Corner Black NB

The Aries Corner is a minimalist yet stylish space-saving heater. It’s designed for seamless corner installation to maximize the space of any sauna room and the boost the comfort of bathers for thoroughly rejuvenating sauna sessions. Its built-in stone spacer ensures shorter heating time for the sauna stones and a longer life span for the heating elements.

» Power range: 4.5 – 9.0kW

» Available control: Built-in (NB)
» Built-in stone spacer

» Adjustable legs
» Black metal casing

» Optional heater guard
» Optional integration collar

Inquire

Specifications

Technical Data

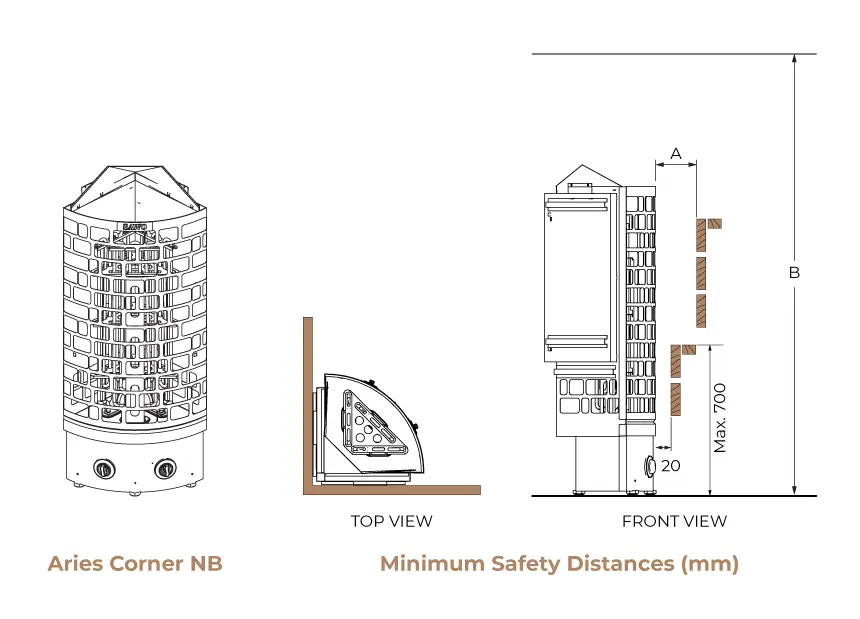

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg)	Minimum Safety Distances A \| B
ARI3-45NB-CNR-BL-P-C	4.5	3 – 6	335 x 335 x 1000	65	100	1900
ARI3-60NB-CNR-BL-P-C	6.0	5 – 9	335 x 335 x 1000	65	100	1900
AR13-75NB-CNR-BL-P-C	7.5	7 – 13	335 x 335 x 1000	65	100	1900
ARI3-90NB-CNR-BL-P-C	9.0	8 – 14	335 x 335 x 1000	65	100	1900

Resources

Aries Corner Black NB Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

Corner Heater Guard

(Cedar/Aspen)

Corner Integration Collar

(Cedar/Aspen)

Corner Integration Collar

(Soapstone)

Corner Integration Collar

(Stainless Steel)

Sauna Stones

(Size: 20kg)

Model	Size of Guard Rail (mm)
Model	Length	Width	Height
ARI-GUARD-W3-CNR-D	215	635	110
ARI-GUARD-W3-CNR-A	215	635	110

Model	Size of Collar (mm)
Model	Length	Width	Height

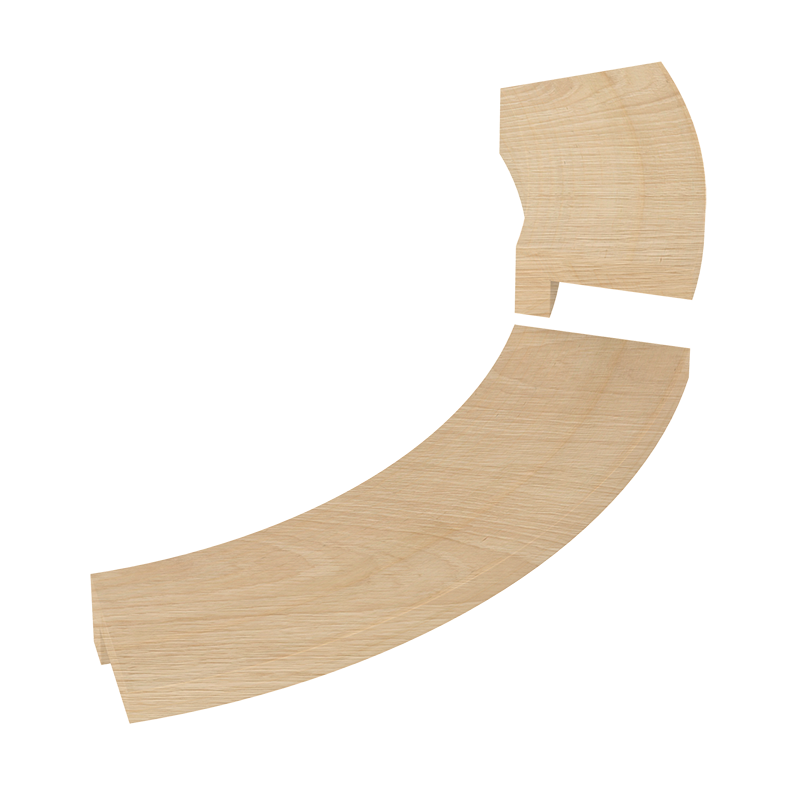

TH-COLLAR-W2-CNR-D \| A	200	600	45

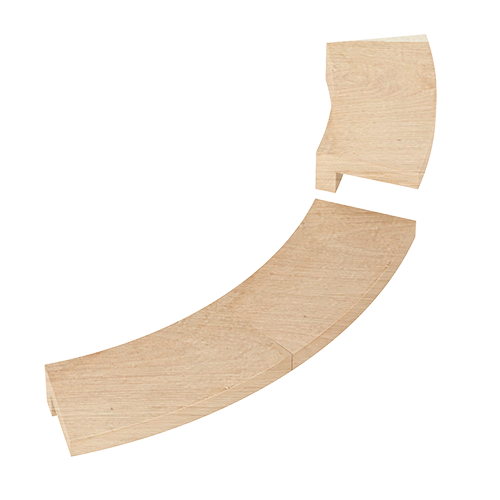

TH-COLLAR-W4-CNR-D \| A	215	670	45

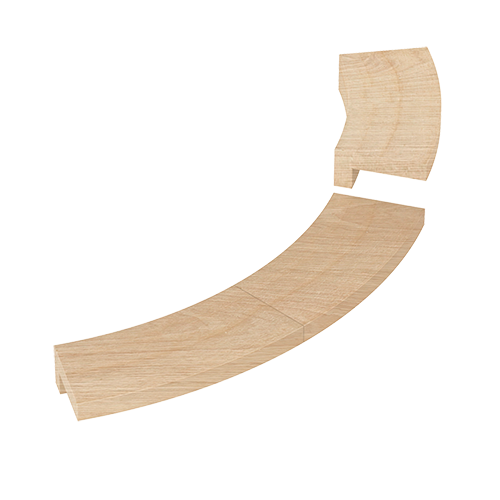

TH-COLLAR-W6-CNR-D \| A	235	755	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-S2-CNR	425	425	45
TH-COLLAR-S4-CNR	475	475	45
TH-COLLAR-S6-CNR	535	535	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-ST2-CNR	220	670	42
TH-COLLAR-ST4-CNR	235	730	42
TH-COLLAR-ST6-CNR	245	795	42
