STE Steam Generator

For Residential Use

Another type of SAWO generators is the cost-efficient STEs. Primarily best for residential or household use. This steam generator bagged a simple control operation which very straightforward to use.

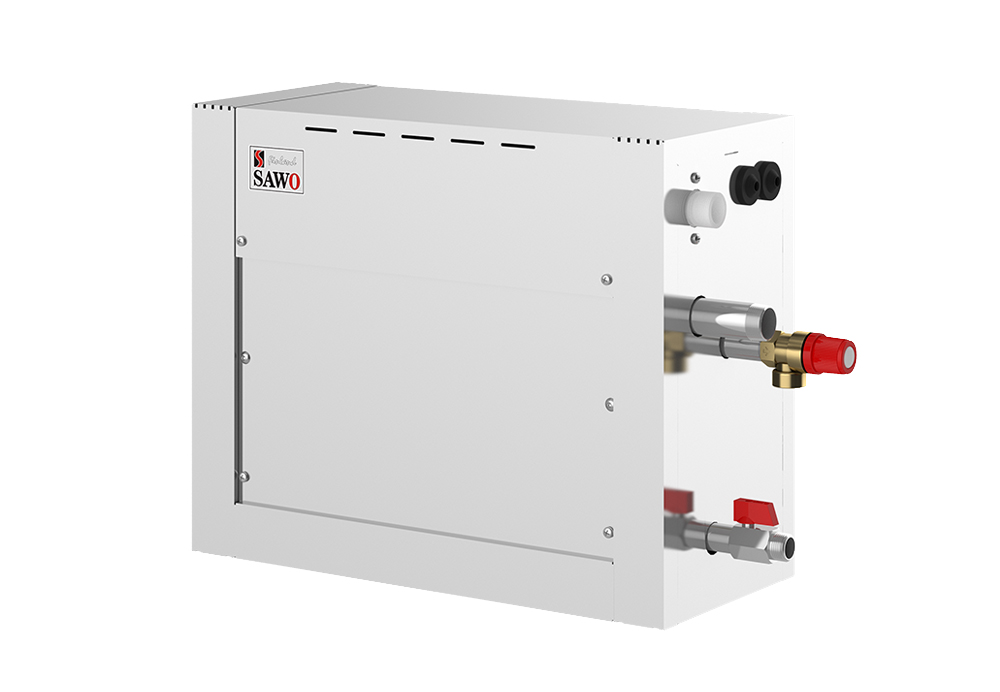

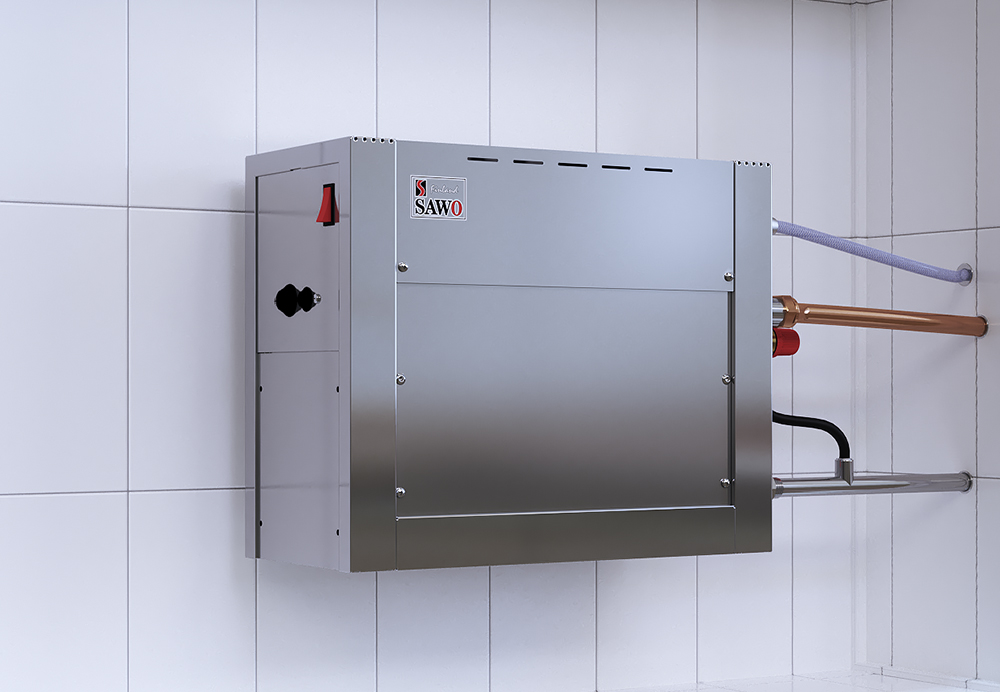

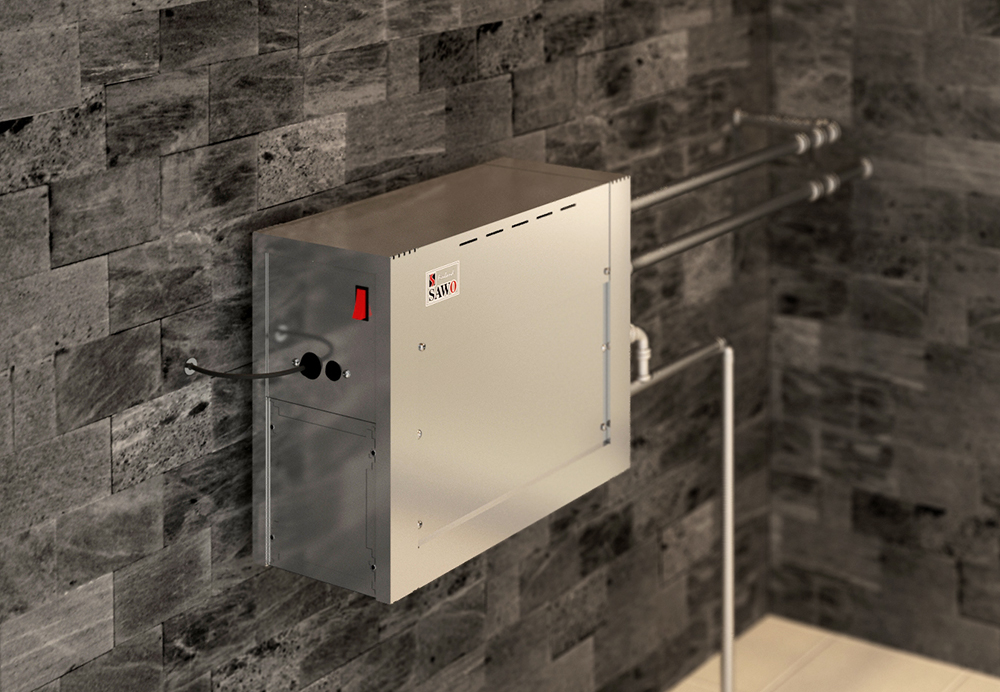

The STE steam generators are compact units that are made from stainless steel sheet. They are with 3/4 inch size steam pipe, a dedicated pipe for the overpressure steam valve, steam pipe installation can now be either left or right as the wall mounting is reversible.

Packed with a temperature sensor, Eco steam control and steam head.

STE steam generators are available as 2 heating elements (3-5kW), 3 heating elements (4.5-7.5kW) and 6 heating elements (9-15kW). Kilowatt ratings of steam generators depend on the size of the steam rooms.

Steam Generators:

Technical Data

2 Heating Elements

Model Name Power
(kW)
Steam Room
Volume (m3)
Supply
Voltage (V)
Current (A) Phase Wire Size
(mm2)
Size (mm)
WIDTH DEPTH HEIGHT
Weight
STE-30-1/2 3 3 max 220-240
380-415
14
8
1N
2N
2,5
2,5
540 – 210 – 370 9
STE-35-1/2 3,5 3,5 max 220-240
380-415
16
19
1N
2N
2,5
2,5
540 – 210 – 370 9
STE-40-1/2 4 4 max 220-240
380-415
18
10
1N
2N
4
2,5
540 – 210 – 370 9
STE-45-1/2 4,5 2 – 5 220-240
380-415
20
12
1N
2N
4
2,5
540 – 210 – 370 9
STE-50-1/2 5 2 – 6 220-240
380-415
22
8
1N
2N
4
2,5
540 – 210 – 370 9

3 Heating Elements

Model Name Power
(kW)
Steam Room
Volume (m3)
Supply
Voltage (V)
Current (A) Phase Wire Size
(mm2)
Size (mm)
WIDTH DEPTH HEIGHT
Weight
STE-45-C1/3 4,5 2 – 5 220-240
380-415
7 1N
3N
2,5 540 – 250 – 370 10
STE-60-C1/3 6 3 – 10 220-240
380-415
27
9
1N
3N
6
2,5
540 – 250 – 370 10
STE-75-C1/3 7,5 4 – 15 220-240
380-415
13
11
1N
3N
8
2,5
540 – 250 – 370 10

6 Heating Elements

Model Name Power
(kW)
Steam Room
Volume (m3)
Supply
Voltage (V)
Current (A) Phase Wire Size
(mm2)
Size (mm)
WIDTH DEPTH HEIGHT
Weight
STE-90-C1/3 9 8 – 20 220-240
380-415
40
13
1N
3N
10
2,5
540 – 300 – 370 13
STE-120-3 12 15 – 28 380-415 18 3N 4 540 – 300 – 370 13
STE-150-3 15 22 – 40 380-415 22 3N 4 540 – 300 – 370 13
