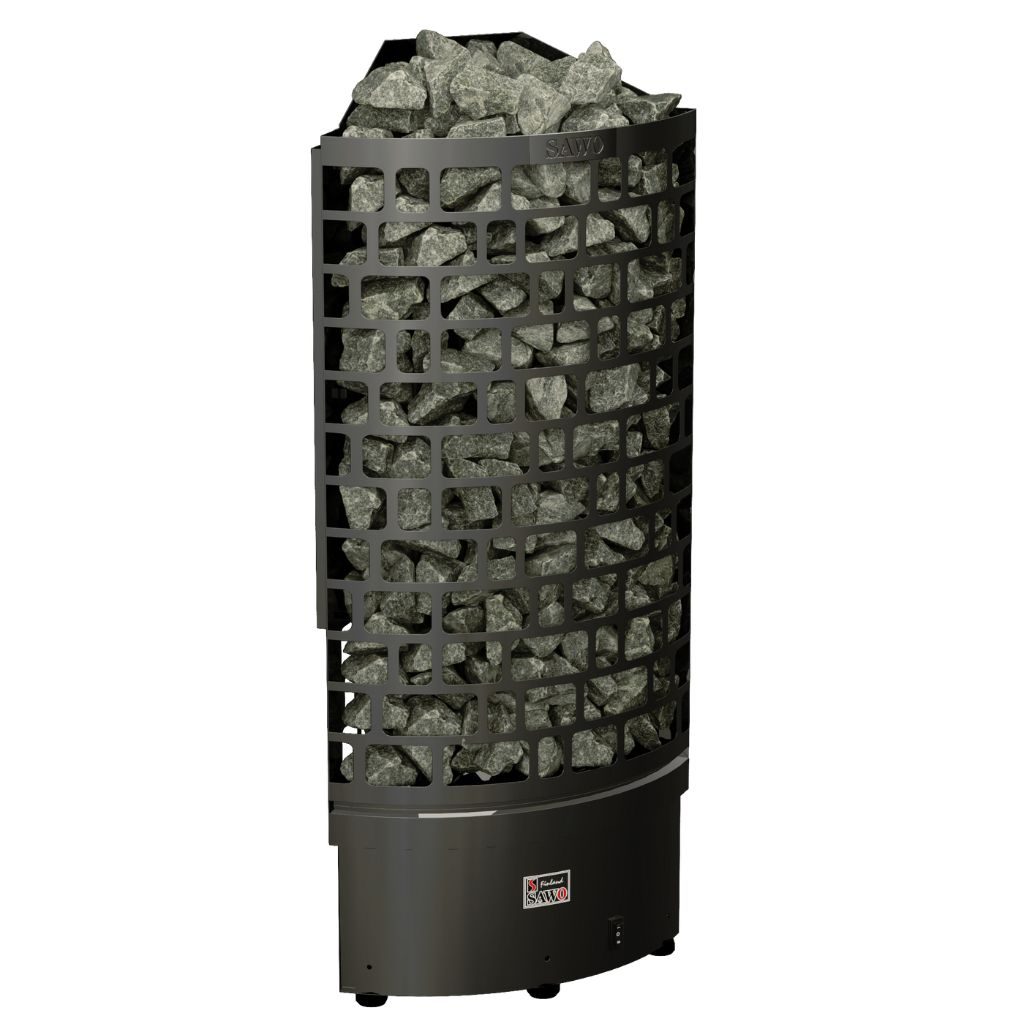

The popular Aries models are now available with black steel casing! If you’re looking for a heater that can maximize your sauna space, the Aries Corner model is an excellent choice. Designed to conserve space in the sauna room, this heater is ideal for smaller rooms starting from just 3m³. The stunning black steel creates delicate contrast between the natural colors of wood in benches and the sauna stones.
As with other Tower series heaters, Aries Corner Black has high stone capacity for softer & moister löyly. The built-in stone spacer improves the air flow inside the heater and makes the heating time faster.
With installation in the corner, Aries Corner Black is great on saving space. The heat reflector will direct the steam towards the benches, this way also protecting the back wall from darkening.
Aries Corner heater is an excellent choice for those who want to maximize their sauna space without sacrificing performance.
- Power rating 4.5-9.0kW
- Available with Ni2, NS and NB controlling
- Built-in Stone Spacer for fast heating time and optimal air flow
- Heating Element Separators for longer heating element lifespan
- Easy installation for Ni2
- Smart Controlling-feature in NS and Ni2 controlling
- Adjustable legs
- Stone Capacity 65kg
- Optional Heater Guard & Integration Collar
Aries Corner Black Ni2
Our bestselling controlling option for Aries heaters! Add only Saunova 2.0 control and Aries Corner Black Ni2 is heating up in no time. The power controller is built-in to heater, no need for additional connections.
Saunova 2.0 has smart controlling feature, which will save energy and increase heating elements life span. Control can also be connected to household automation systems.
Saunova 2.0 can be installed either inside or outside sauna, however you like it. Especially convenient for glass-front and outdoor saunas.
- Easy installation
- Power Controller is built-in to the heater, requires only separate Saunova 2.0 interface
- Smart Controlling-feature
- Flexible placing of Saunova 2.0 Interface
- Connect with additional bench sensor to save energy and keep the temperature stable
- Optional Heater Guard (Cedar & Aspen) and Integration Collar (Wooden, Soapstone & Stainless)
Technical Details
| PRODUCT CODE | POWER RANGE (kW) | SAUNA ROOM SIZE min – max | HEATER DIMENSIONS L x W x H | STONE CAPACITY | MINIMUM SAFETY DISTANCE |
|---|---|---|---|---|---|
| ARI3-45Ni2-CNR-BL-P | 4.5 | 3m³-6m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-60Ni2-CNR-BL-P | 6.0 | 5m³-9m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-75Ni2-CNR-BL-P | 7.5 | 7m³-12m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-90Ni2-CNR-BL-P | 9.0 | 8m³-13m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |

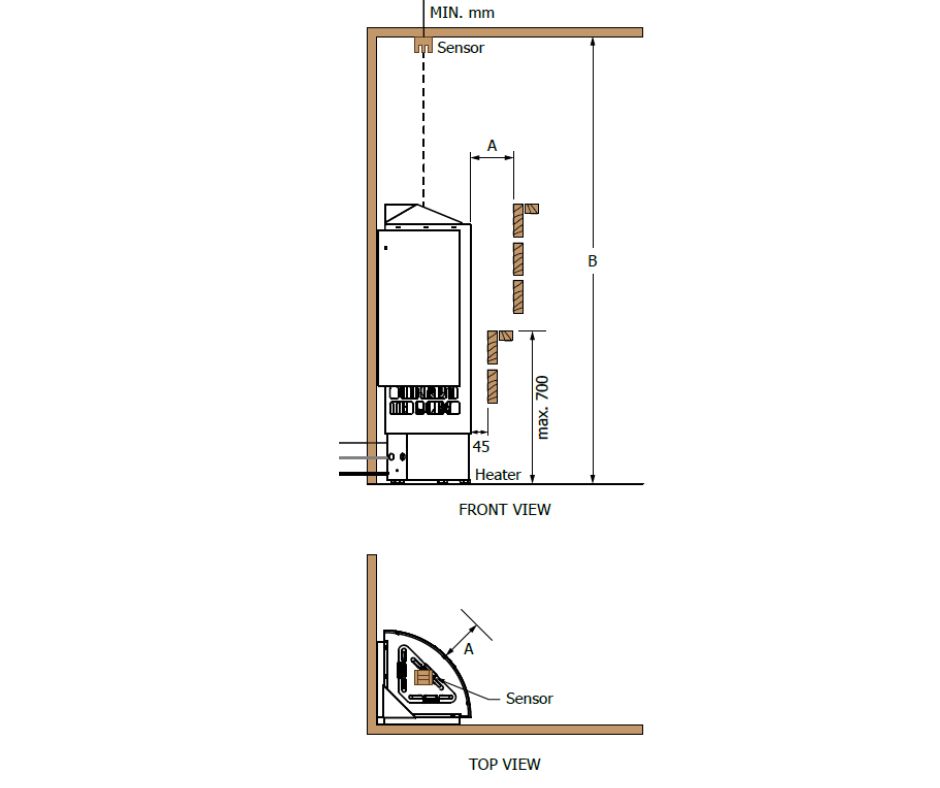

Minimum Safety Distance:
- ARI3-45Ni2-CNR-BL-P: A=100 B=1900
- ARI3-60Ni2-CNR-BL-P: A=100 B=1900
- ARI3-75Ni2-CNR-BL-P: A=100 B=1900
- ARI3-90Ni2-CNR-BL-P: A=100 B=1900
Set Includes:
- Electric Sauna Heater
- Heat Reflector
- 1pc Temperature Sensor (+4m RJ cable)
Additionals:
Aries Corner Black NS
Innova controls allow to set your preference time and temperature, dim the lights, adjust automatic fan to dry up after and make sure no-one else can change these settings. You have even possibility to make this your weekly routine.
Combine NS-heater with Saunova 2.0 Power Controller + Saunova 2.0 User Interface or Innova Power Controller+ Innova Classic 2.0/ Innova Stainless Steel Touch/ Innova Classic User Interface.
- Smart Controlling-feature
- Variety of controls to connect with, choose from either Saunova or Innova models
- Connect with additional bench sensor to save energy and keep the temperature stable
- Optional Heater Guard (Cedar & Aspen) and Integration Collar (Wooden, Soapstone & Stainless)
Technical Details
| PRODUCT CODE | POWER RANGE (kW) | SAUNA ROOM SIZE min – max | HEATER DIMENSIONS L x W x H | STONE CAPACITY | MINIMUM SAFETY DISTANCE |
|---|---|---|---|---|---|
| ARI3-45NS-CNR-BL-P | 4.5 | 3m³-6m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-60NS-CNR-BL-P | 6.0 | 5m³-9m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-75NS-CNR-BL-P | 7.5 | 7m³-12m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-90NS-CNR-BL-P | 9.0 | 8m³-13m³ | 335 x 335 x 1000mm | 65kg | A= 125 B= 1900 |
Minimum Safety Distance:
- ARI3-45NS-CNR-BL-P: A=100 B= 1900
- ARI3-60NS-CNR-BL-P: A=100 B=1900
- ARI3-75NS-CNR-BL-P: A=100 B=1900
- ARI3-90NS-CNR-BL-P: A=125 B=1900
Set Includes:
- Electric Sauna Heater
- Heat Reflector
- 1pc Temperature Sensor (+4m RJ cable)
Additionals:
Aries Corner Black NB
NB-control allows to adjust the temperature and set time. The control is already built-in to heater, no need for additional installation and timer & thermostat can be reversible to your desired position for easier access in the sauna.
On-time max. 4h and preset-time max. 8h.
- Simple & Easy
- Reversible Timer & Thermostat
- Optional Heater Guard (Cedar & Aspen)
Technical Details
| PRODUCT CODE | POWER RANGE (kW) | SAUNA ROOM SIZE min – max | HEATER DIMENSIONS L x W x H | STONE CAPACITY | MINIMUM SAFETY DISTANCE |
|---|---|---|---|---|---|
| ARI3-45NB-CNR-BL-P | 4.5 | 3m³-6m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-60NB-CNR-BL-P | 6.0 | 5m³-9m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-75NB-CNR-BL-P | 7.5 | 7m³-12m³ | 335 x 335 x 1000mm | 65kg | A= 100 B= 1900 |
| ARI3-90NB-CNR-BL-P | 9.0 | 8m³-13m³ | 335 x 335 x 1000mm | 65kg | A= 125 B= 1900 |

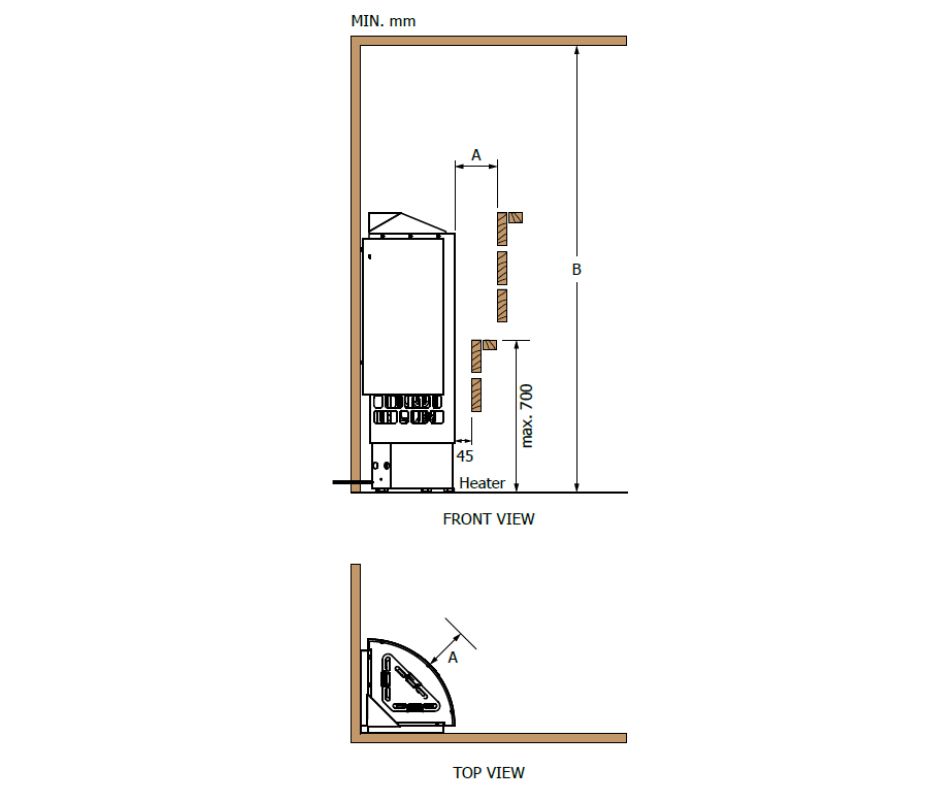

Minimum Safety Distance:
- ARI3-45NB-CNR-BL-P: A=100 B=1900
- ARI3-60NB-CNR-BL-P: A=100 B=1900
- ARI3-75NB-CNR-BL-P: A=100 B=1900
- ARI3-90NB-CNR-BL-P: A=125 B=1900
