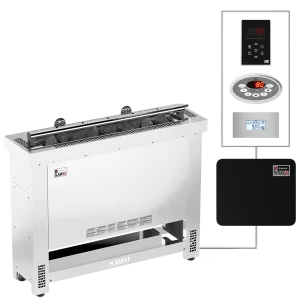

• Helius Sauna Heater (HES NS) - Floor Series

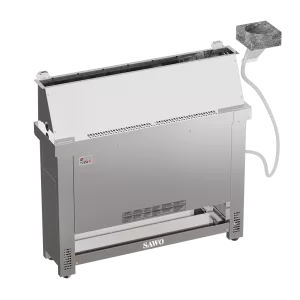

  • Helius Sauna Heater (HES NS) with Hood - Floor Series

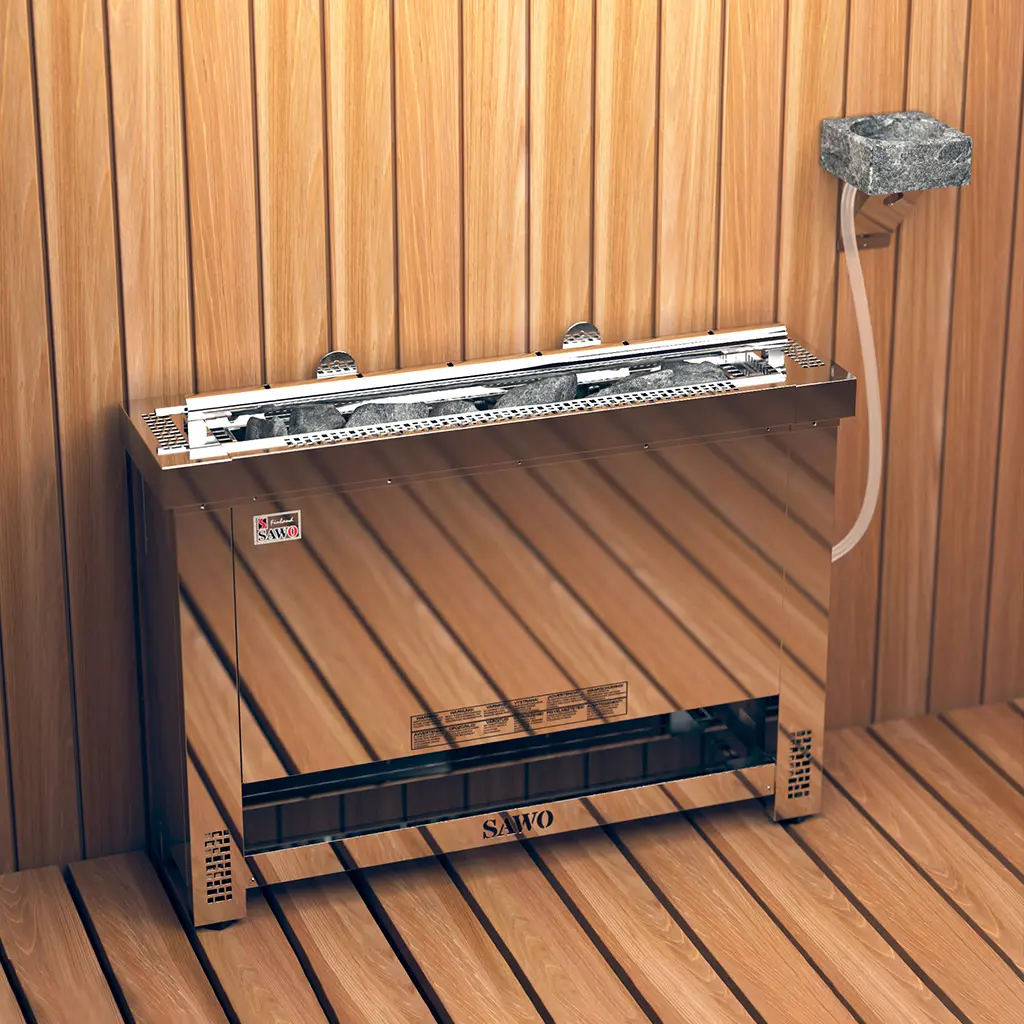

  • Helius Sauna Heater - Floor Series
  • Helius Scene - Floor Series

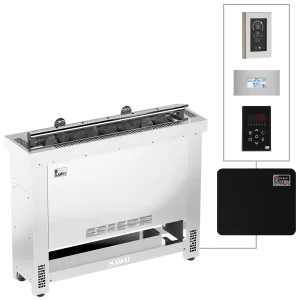

Helius NS

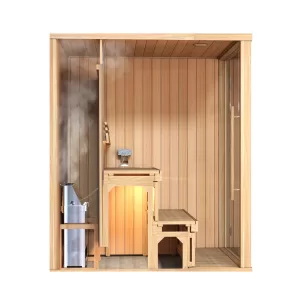

The Helius delivers increased placement flexibility with its slim profile. This “hidden” heater can be installed behind the benches using a wall divider, which effectively renders the heater invisible. Once water is poured into the water basin, which is the only element that remains visible, the water then travels into the heater via a hose, heating up the room. With its advanced airflow design, the Helius uses fewer stones, which leads to better airflow and better heating efficiency.

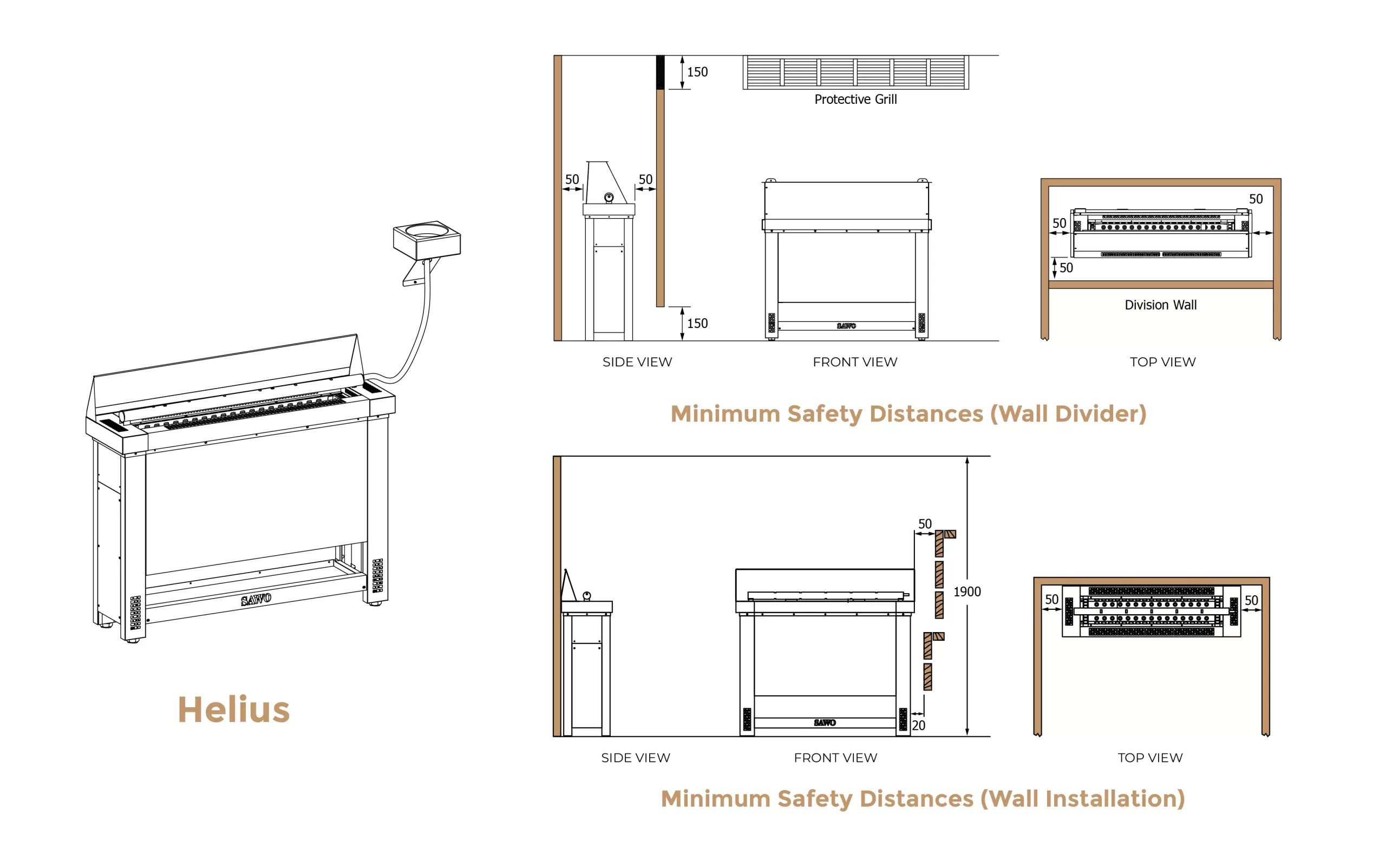

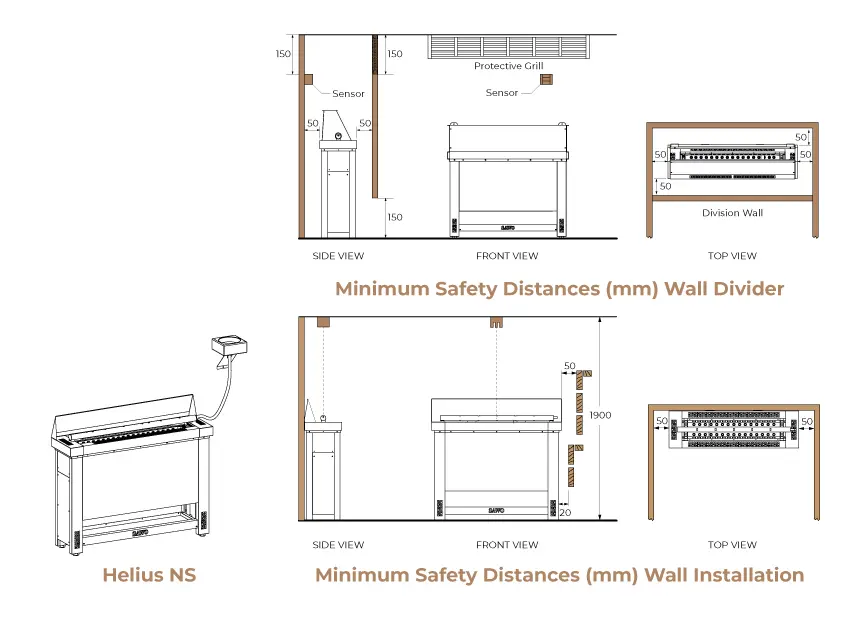

The Helius also requires a much shorter than usual safety distance (min. 5mm). If the separate Helius hood is added, the safety distance can be made almost minimal.

» Power range: 4.5 – 9.0kW
» Available controls: Saunova/Innova (NS)
» Separate soapstone water basin with hose
» Optional heater guard and hood

Technical Data

Heater
Model
kWSauna Room
min. (m3) max.
Size of Heater (mm)
Length Width Height
Stones
(kg)
Control
HES-45NS-G-P-C4.53 – 6230 x 860 x 65517Separate
HES-60NS-G-P-C6.05 – 9230 x 860 x 65517Separate
HES-75NS-G-P-C7.57 – 13230 x 860 x 65517Separate
HES-90NS-G-P-C9.08 – 14230 x 860 x 65517Separate

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

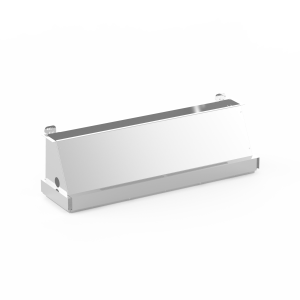

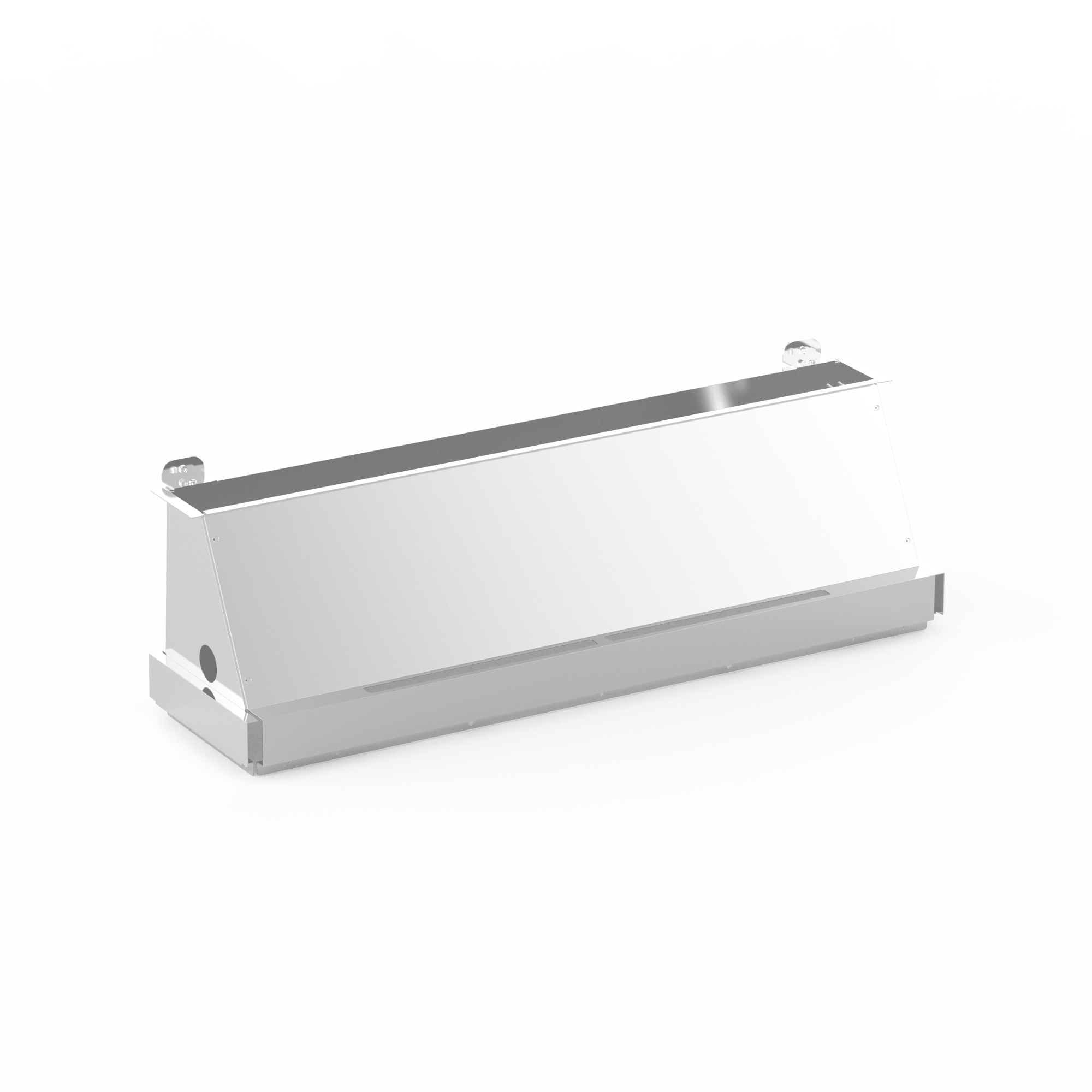

Helius Hood
(Stainless Steel)

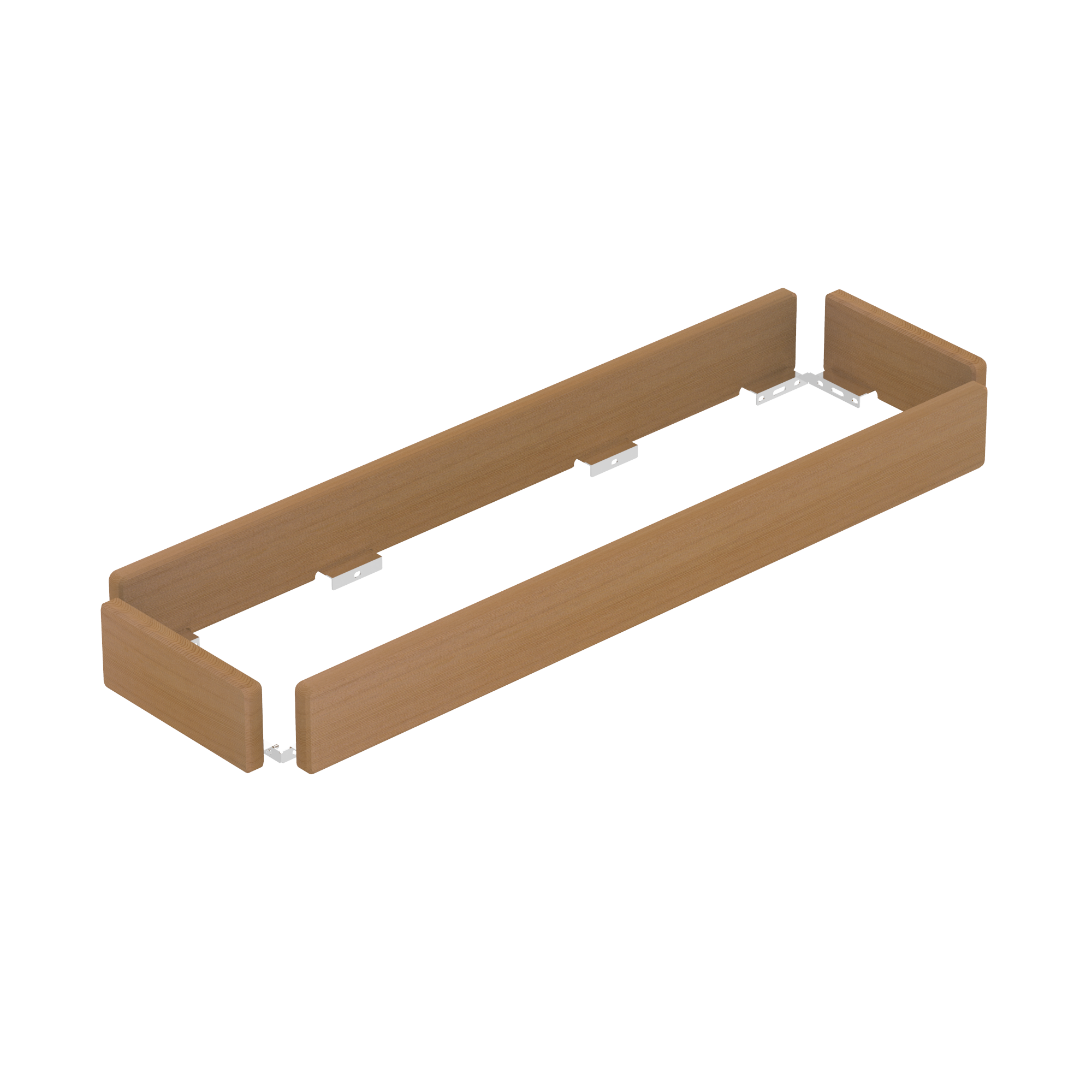

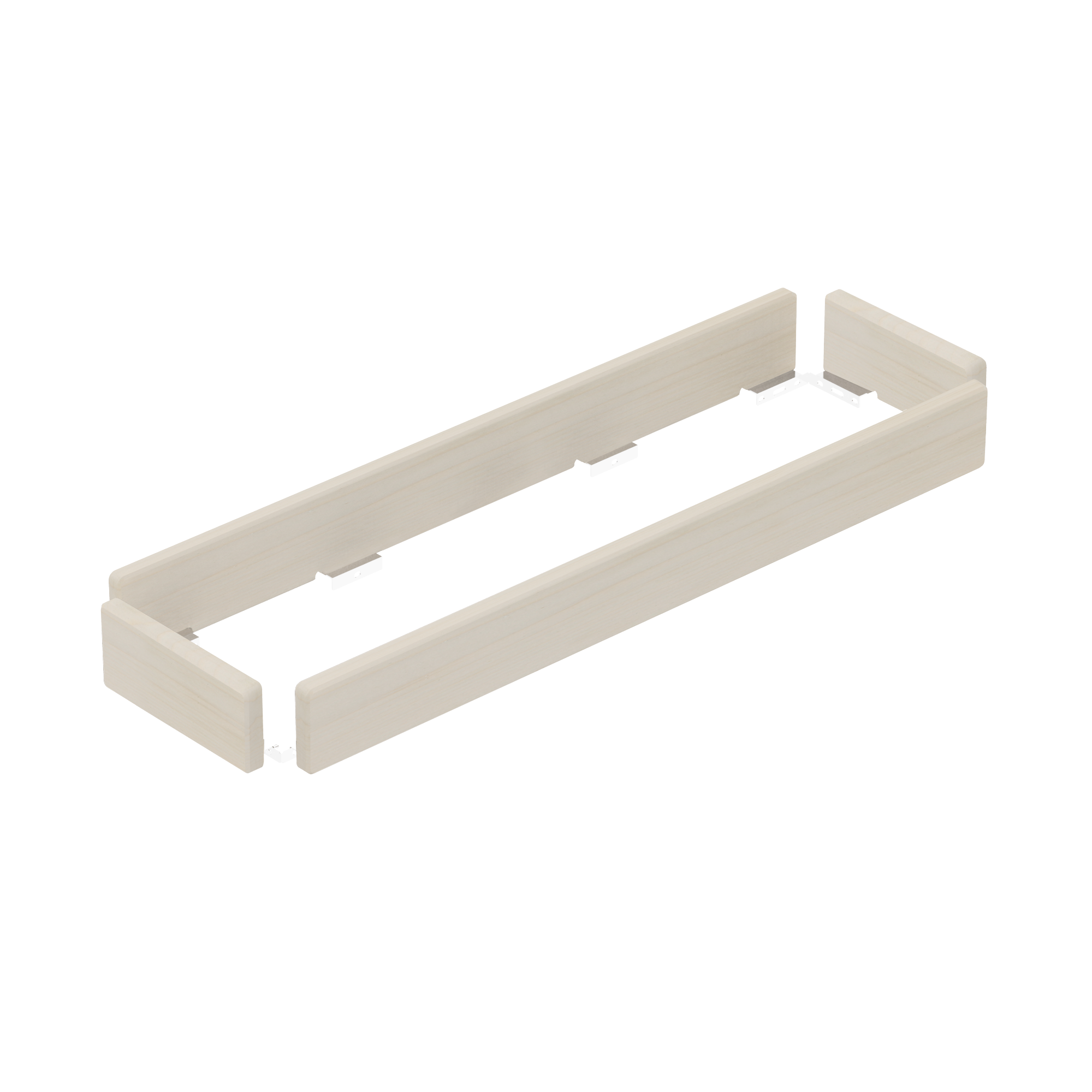

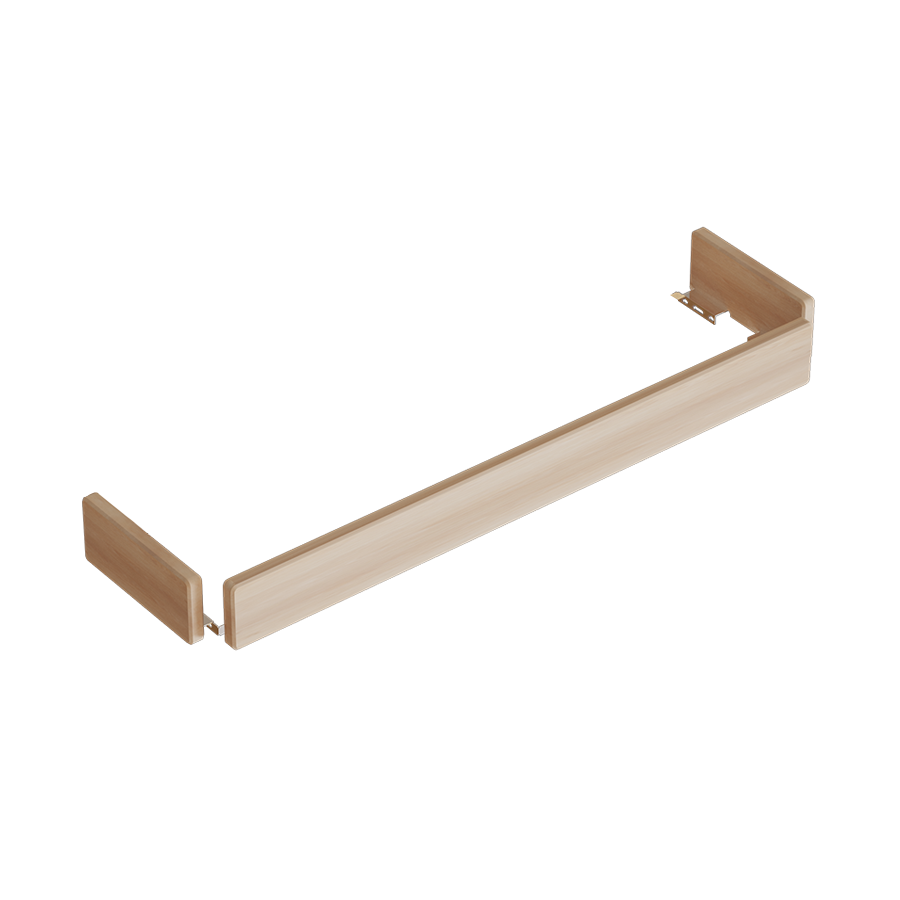

Wooden Heater Guard
(Cedar/Aspen)
Sauna Stones
(Size: 20kg)
