Power rating from 3 – 24kW

Tower Wall NS

» Power range 3.0 – 24.0kW
» Control: Separate
» Sauna Experience: Mild smooth heat, Humid
» Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs

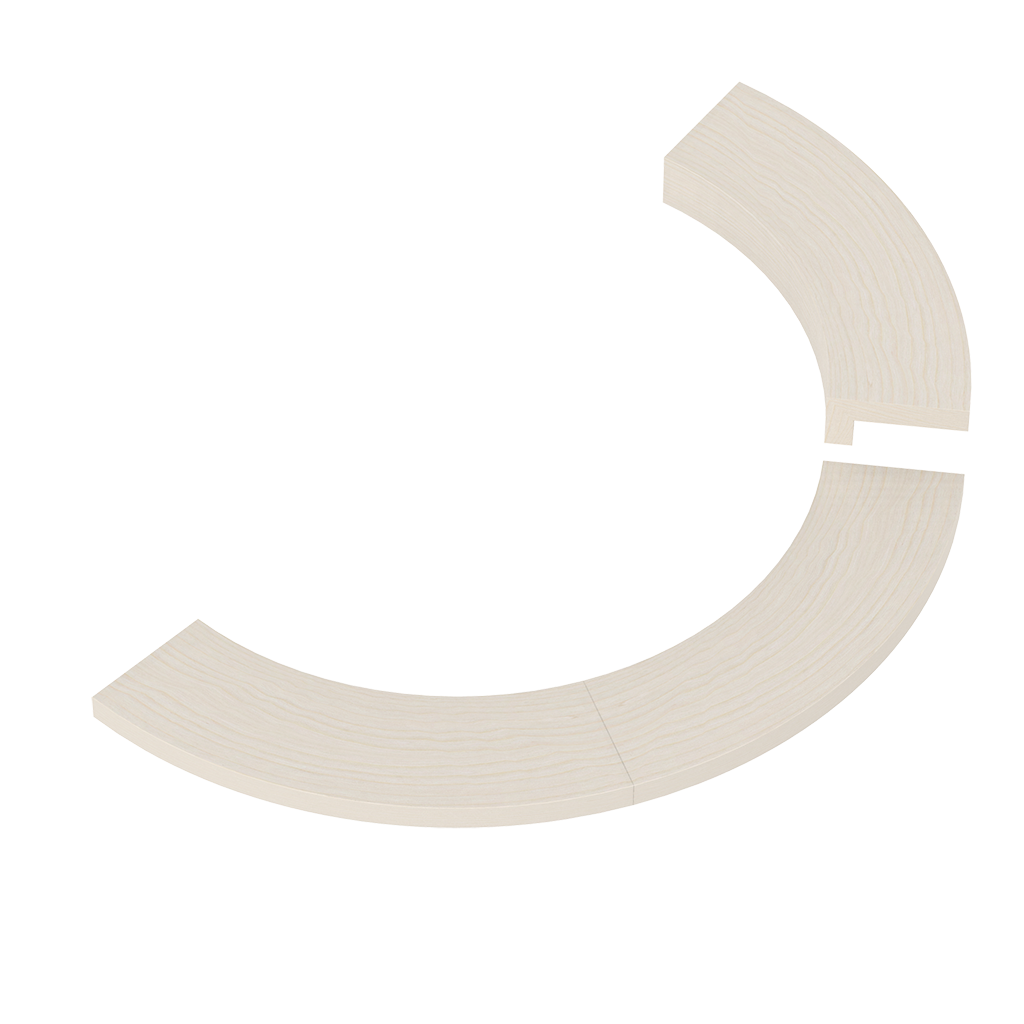

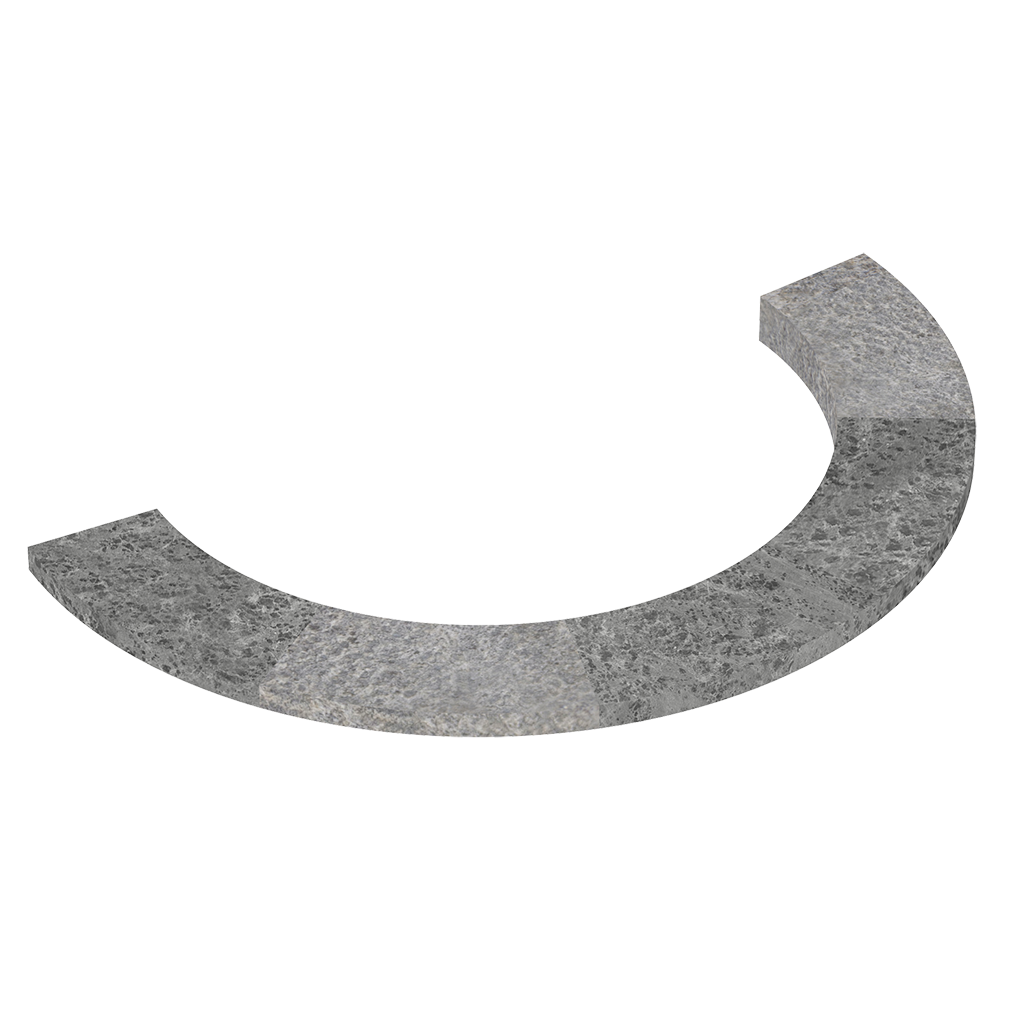

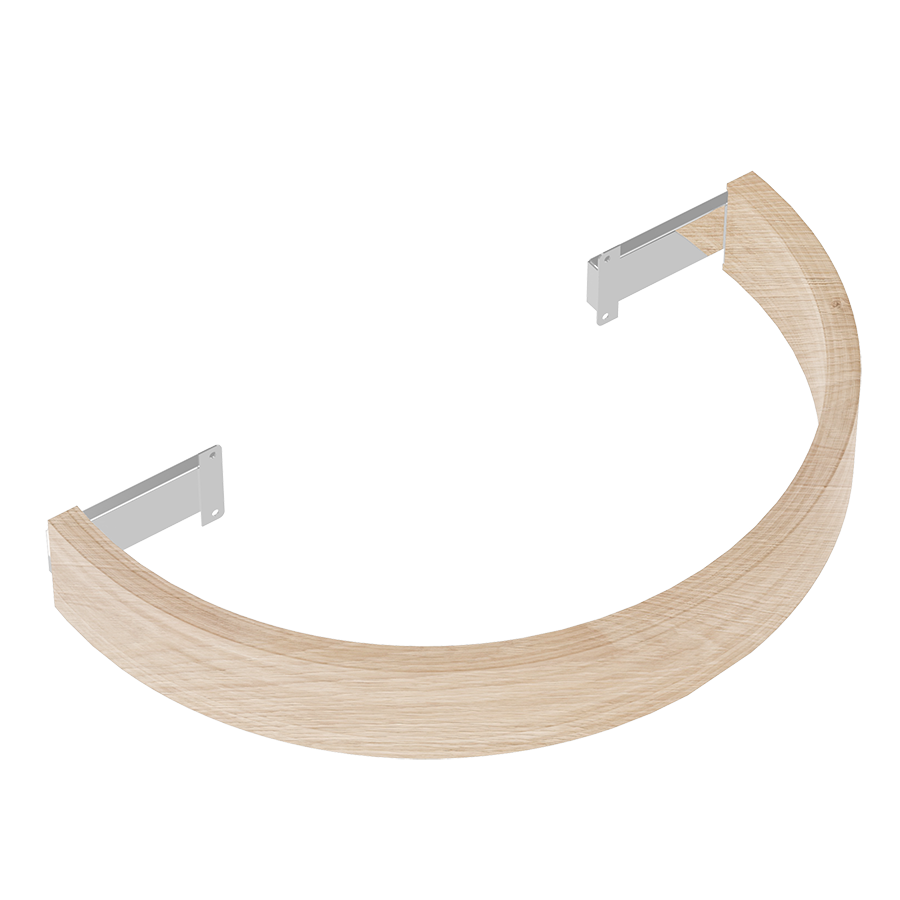

» Optional Heater Guard and Integration Collar

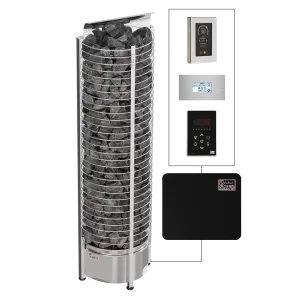

Tower Wall is a timelessly elegant heater that will release long-lasting mild, steady and humid heat.

Wall model will save space on the layout, with still being a show-stopper of the sauna. Suitable for small to extra-large saunas (2m3-40m3), to increase capacity to over 24kW you can always combine 2 Tower Walls back-to-back, which enables to grow power capacity as much as until 48kW.

INQUIRE

Specifications

Technical Data

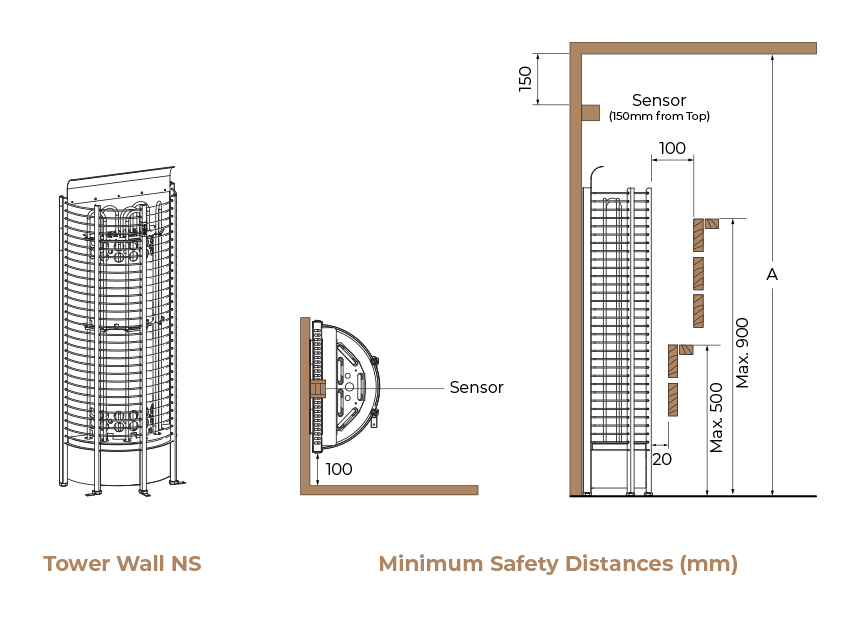

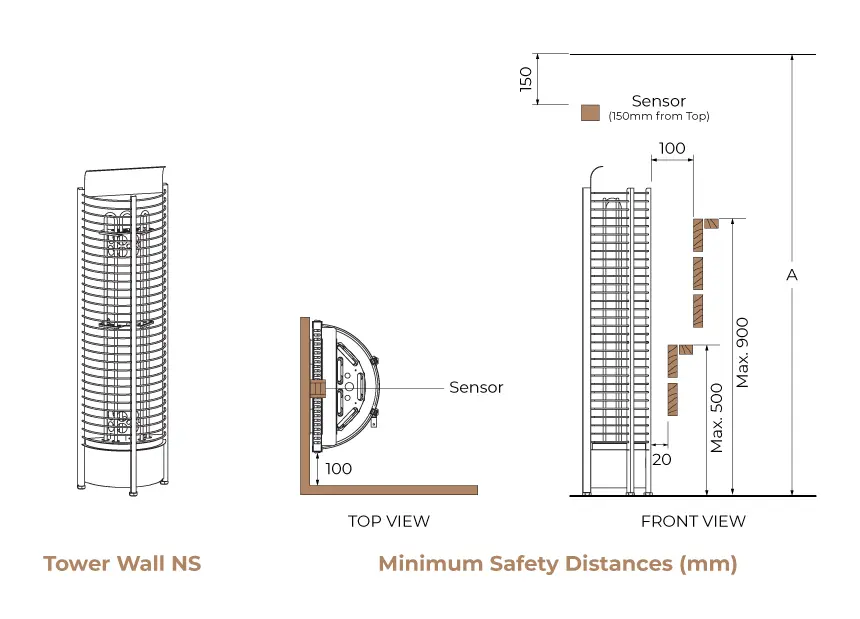

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Length Width Height	Stones (KG) w/o Stone Spacer	Stones (KG) with Stone Spacer	Minimum Safety Distances A \| B
TH2-30NS-WL-P	3.0	2 – 4	385 x 230 x 1395	80	60	100	1900
TH3-35NS-WL-P-C	3.5	3 – 6	385 x 230 x 1395	80	60	100	1900
TH3-45NS-WL-P-C	4.5	3 – 6	385 x 230 x 1395	80	60	100	1900
TH3-60NS-WL-P-C	6.0	5 – 8	385 x 230 x 1395	80	60	100	1900
TH4-60NS-WL-P-C	6.0	5 – 9	475 x 250 x 1395	120	90	100	1900
TH5-80NS-WL-P-C	8.0	7 – 13	475 x 250 x 1395	120	90	100	1900
TH5-90NS-WL-P-C	9.0	8 – 14	475 x 250 x 1395	120	90	100	1900
TH6-80NS-WL-P-C	8.0	7 – 14	550 x 320 x 1395	160	105	100	1900
TH6-90NS-WL-P-C	9.0	8 – 15	550 x 320 x 1395	160	105	100	1900
TH6-105NS-WL-P	10.5	9 – 16	550 x 320 x 1395	160	105	100	2100
TH6-120NS-WL-P	12.0	11 – 18	550 x 320 x 1395	160	105	100	2100
TH9-105NS-WL-P	10.5	10 – 16	650 x 355 x 1395	180	115	100	2100
TH9-120NS-WL-P	12.0	11 – 20	650 x 355 x 1395	180	115	100	2100
TH9-150NS-WL-P	15.0	14 – 25	650 x 355 x 1395	180	115	100	2100
TH9-180NS-WL-P	18.0	18 – 28	650 x 355 x 1395	180	115	100	2300
TH12-150NS-WL-P	15.0	15 – 26	790 x 425 x 1395	250	165	100	2300
TH12-180NS-WL	18.0	18 – 30	790 x 425 x 1395	250	165	100	2300
TH12-210NS-WL-P	21.0	22 – 35	790 x 425 x 1395	250	165	100	2300
TH12-240NS-WL-P	24.0	24 – 40	790 x 425 x 1395	250	165	100	2300
