Power rating from 3 – 9kW

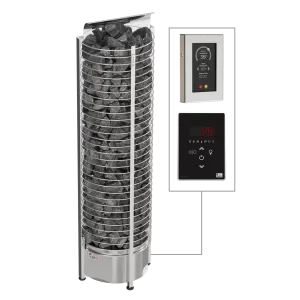

Tower Wall Ni2

Tower Wall is a timelessly elegant heater that will release long-lasting mild, steady and humid heat.

Wall model will save space on the layout, with still being a show-stopper of the sauna. Suitable for small to extra-large saunas (2m3-40m3), to increase capacity to over 24kW you can always combine 2 Tower Walls back-to-back, which enables to grow power capacity as much as until 48kW.

» Power range 3.0 – 9.0kW

» Control: Saunova 2.0 operated
» Sauna Experience: Mild smooth heat, Humid

» Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs

» Optional Heater Guard and Integration Collar

Inquire

Specifications

Technical Data

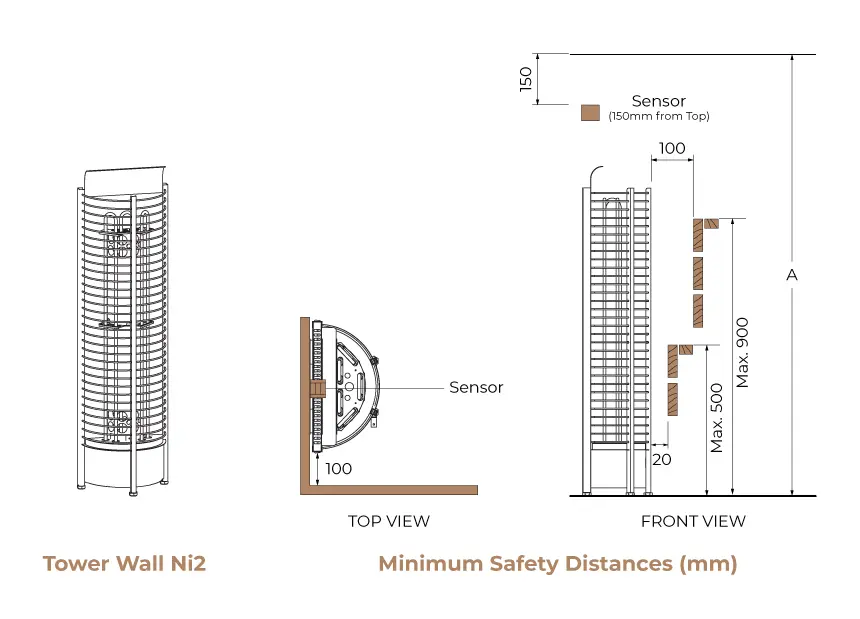

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg) w/o Stone Spacer	Stones (kg) with Stone Spacer	Minimum Safety Distances A \| B
TH2-30Ni2-WL-P-C	3.0	2 – 4	385 x 230 x 1395	80	60	100	1900
TH3-35Ni2-WL-P-C	3.5	3 – 6	385 x 230 x 1395	80	60	100	1900
TH3-45Ni2-WL-P-C	4.5	3 – 6	385 x 230 x 1395	80	60	100	1900
TH3-60Ni2-WL-P-C	6.0	5 – 8	385 x 230 x 1395	80	60	100	1900
TH4-60Ni2-WL-P-C	6.0	5 – 9	475 x 250 x 1395	120	90	100	1900
TH5-80Ni2-WL-P-C	8.0	8 – 14	475 x 250 x 1395	120	90	100	1900
TH5-90Ni2-WL-P-C	9.0	8 – 14	475 x 250 x 1395	120	90	100	1900
TH6-80Ni2-WL-P-C	8.0	7 – 14	550 x 320 x 1395	160	105	100	1900
TH6-90Ni2-WL-P-C	9.0	8 – 15	550 x 320 x 1395	160	105	100	1900

Resources

SAWO Tower Wall Ni2 Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

Wooden Heater Guard

(Cedar / Aspen)

View

Round Integration Collar

(Cedar / Aspen)

View

Round Integration Collar

(Soapstone)

View

Round Integration Collar

(Stainless)

View

Round Stainless Collar

(Stainless)

View

Cozy Tank

(Water volume: 0.6L)

View

Sauna Stones

(Size: 20kg)

View

Model
Model	Material	Size of Guard Rail in Diameter (mm)
SW-GUARD-W2-D	Cedar	507
SW-GUARD-W2-A	Aspen	507
SW-GUARD-W6-D	Cedar	620
SW-GUARD-W6-A	Aspen	620
SW-GUARD-W12-D	Cedar	790
SW-GUARD-W12-A	Aspen	790

Model
Model	Width	Depth	Height
TH-COLLAR-W2-D \| A	449	187	150
TH-COLLAR-W4-D \| A	495	200	150
TH-COLLAR-W6-D \| A	547	215	150
TH-COLLAR-W9-D \| A	608	233	150
TH-COLLAR-W12-D \| A	694	258	150

Model
Model	Width	Depth	Height
TH-COLLAR-S2	507	507	45
TH-COLLAR-S4	560	560	45
TH-COLLAR-S6	620	620	45
TH-COLLAR-S9	690	690	45
TH-COLLAR-S12	790	790	45

Model
Model	Width	Depth	Height
TH-COLLAR-ST2	470	470	70
TH-COLLAR-ST4	545	545	55
TH-COLLAR-ST6	665	665	60
TH-COLLAR-ST9	720	720	42
TH-COLLAR-ST12	830	830	70

Model
Model	Width	Depth (mm)	Height
TH-COLLAR-V2-ST4	440	440	120
