Power Range: 3 – 9kW

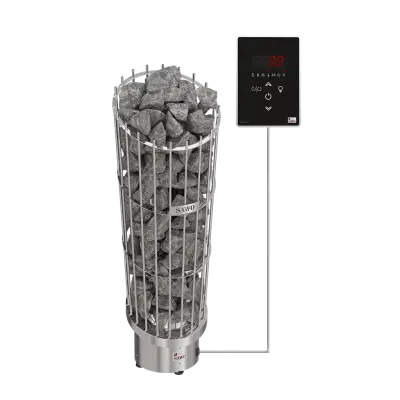

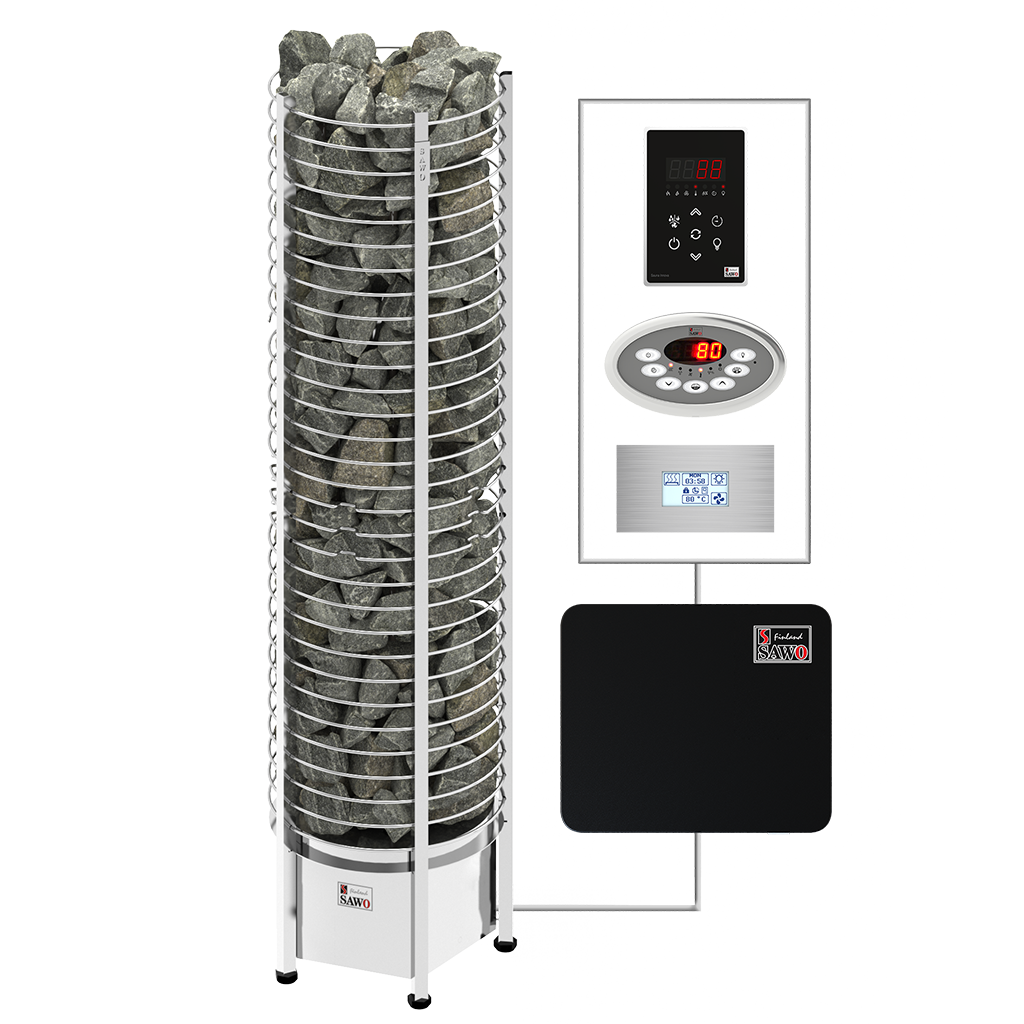

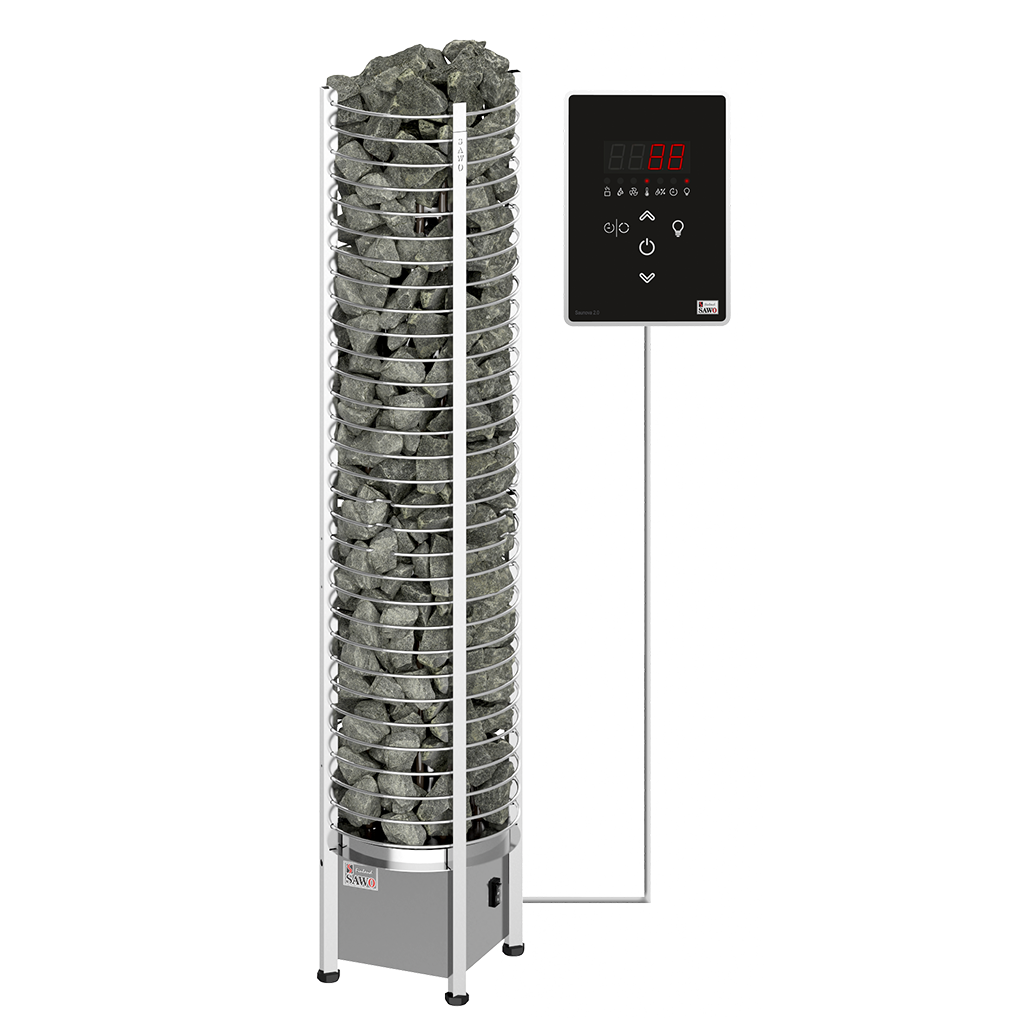

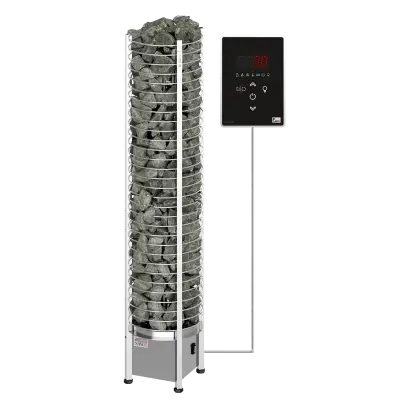

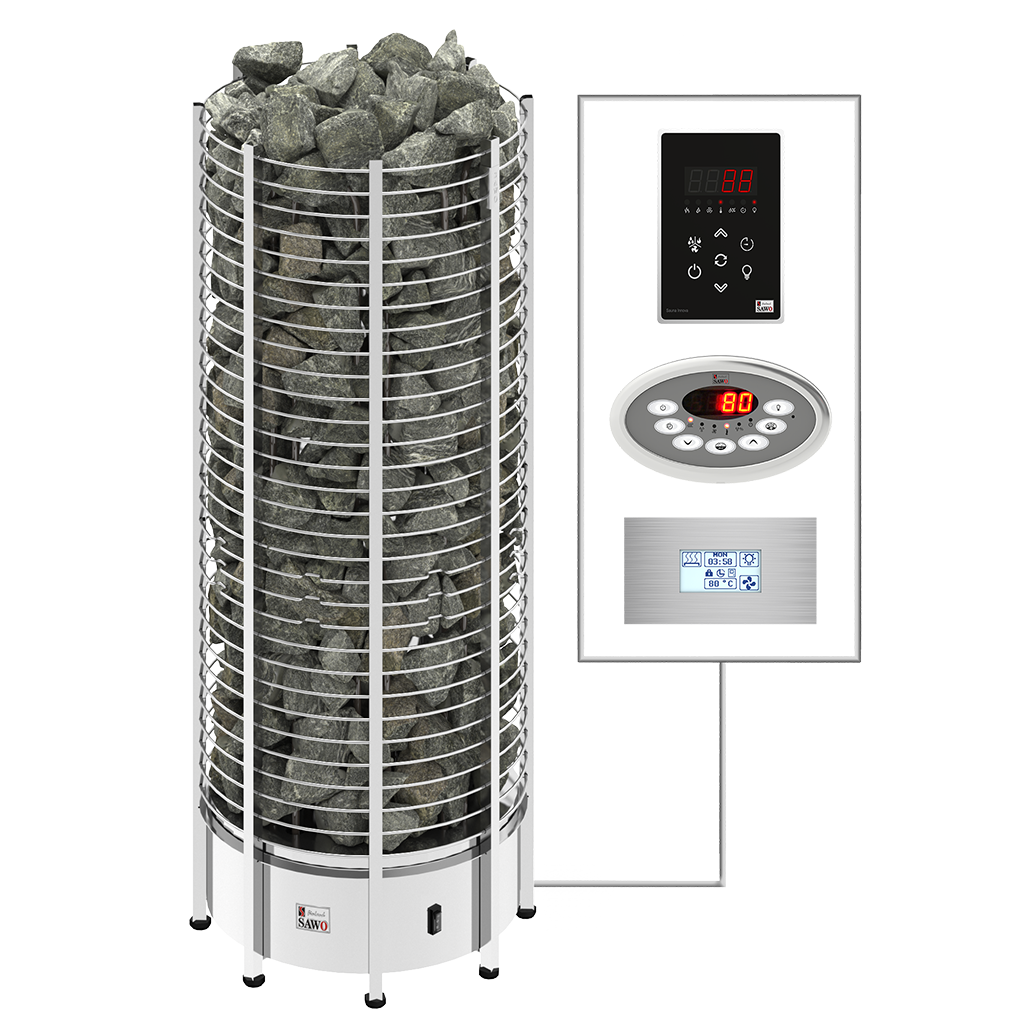

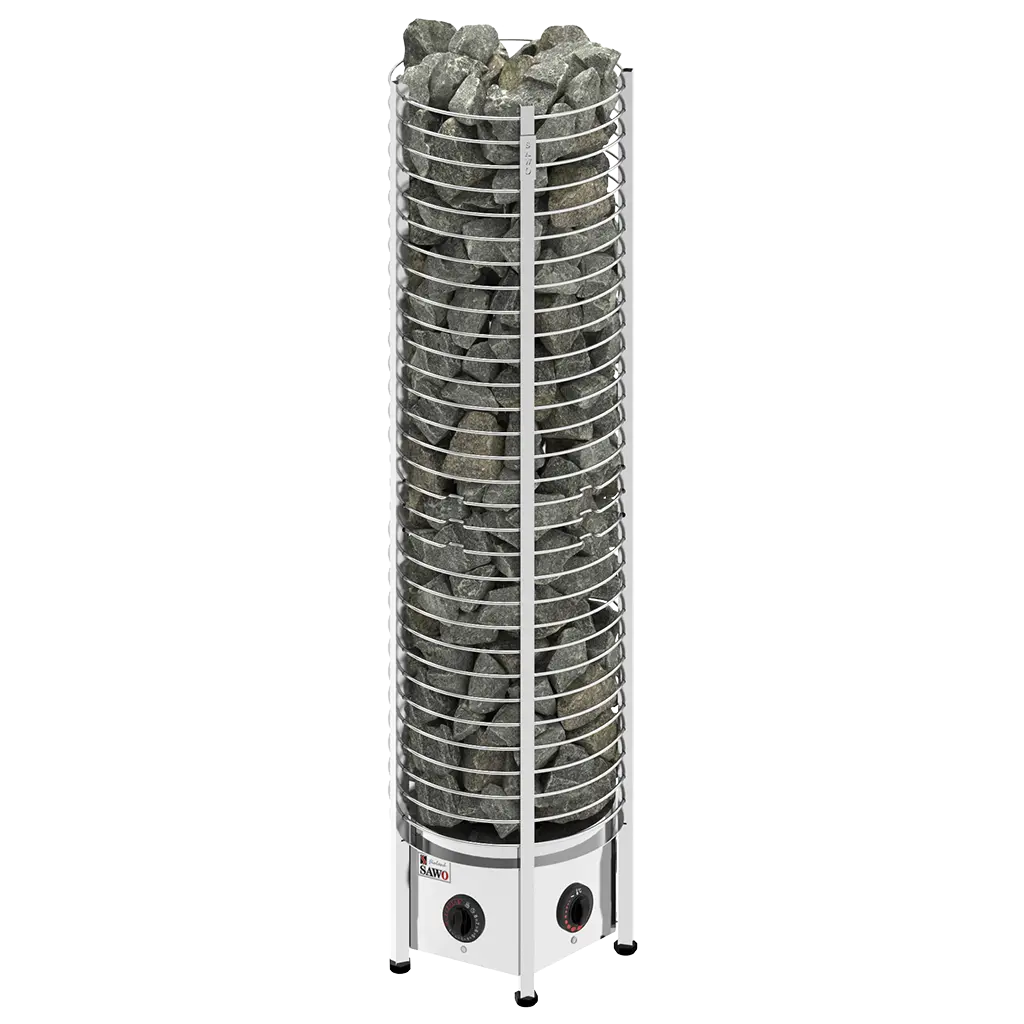

Tower Round NB

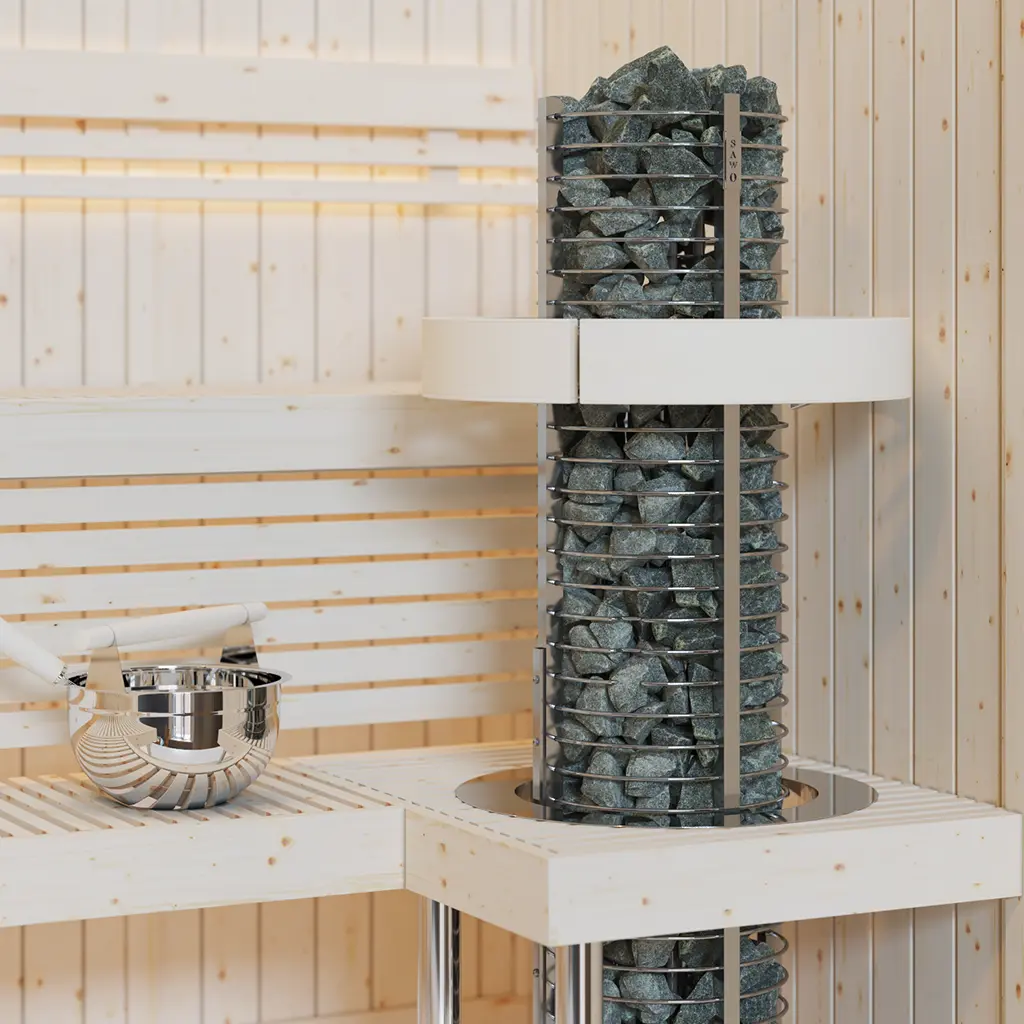

The Tower Round heater is a timeless, elegant design. Its height ensures even distribution of long-lasting humid heat for deeply satisfying sauna sessions. The Round model can be installed in the middle of the sauna room or embedded in a bench. It also comes with a removable stone spacer, which offers two setup options: (1) with the spacer for faster heating, energy efficiency, and a hotter sauna, or (2) without the spacer for room to accommodate more stones to generate more steam, a milder temperature, and energy savings in a commercial setup.

» Power range: 3.0 – 9.0kW

» Available control: Built-in (NB)

» Stainless steel casing
» Movable steel rings for replacement of broken stones
» Removable stone spacer
» Adjustable legs
» Optional heater guard
» Optional integration collar

Inquire

Specifications

Technical Data

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg) w/o Stone Spacer	Stones (kg) with Stone Spacer	Control	Minimum Safety Distances A \| B
TH2-30NB-P	3.5	2 – 4	260 x 260 x 1300	70	60	Separate	100 \| 150	1900
TH3-35NB-P-C	3.5	3 – 6	260 x 260 x 1300	70	60	Built-in (8+4h) \| Separate	150 \| 100	1900
TH3-45NB-P-C	4.5	3 – 6	260 x 260 x 1300	70	60	Built-in (8+4h) \| Separate	150 \| 100	1900
TH3-60NB-P-C	6.0	5 – 8	260 x 260 x 1300	70	60	Built-in (8+4h) \| Separate	150 \| 150	1900
TH4-60NB-P-C	6.0	5 – 9	315 x 315 x 1300	105	90	Built-in (8+4h) \| Separate	150 \| 150	1900
TH5-80NB-P-C	8.0	7 – 13	315 x 315 x 1300	105	90	Built-in (8+4h) \| Separate	100 \| 100	1900
TH6-80NB-P-C	8.0	7 – 14	365 x 365 x 1300	160	100	Built-in (8+4h) \| Separate	100 \| 100	1900
TH6-90NB-P-C	9.0	8 – 15	365 x 365 x 1300	160	100	Built-in (8+4h) \| Separate	100 \| 100	1900

Resources

Tower Round NB Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

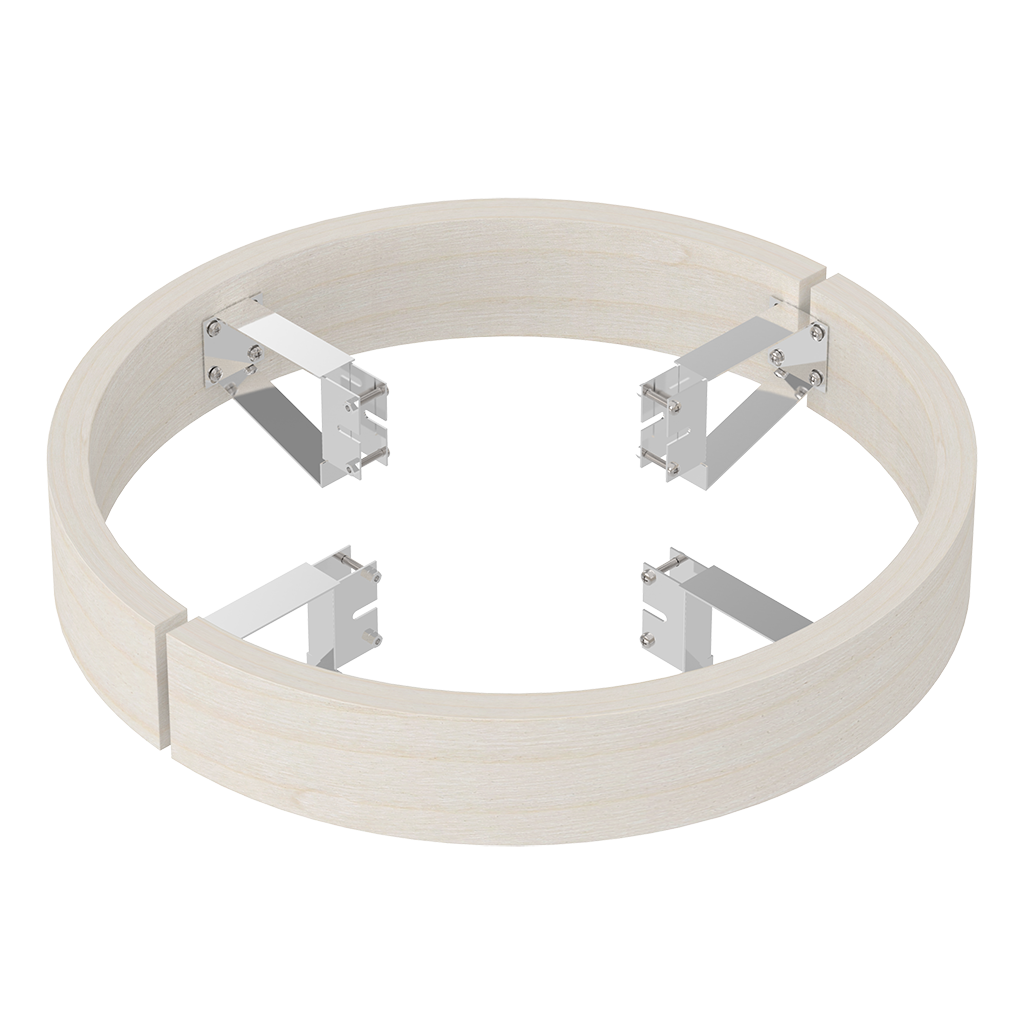

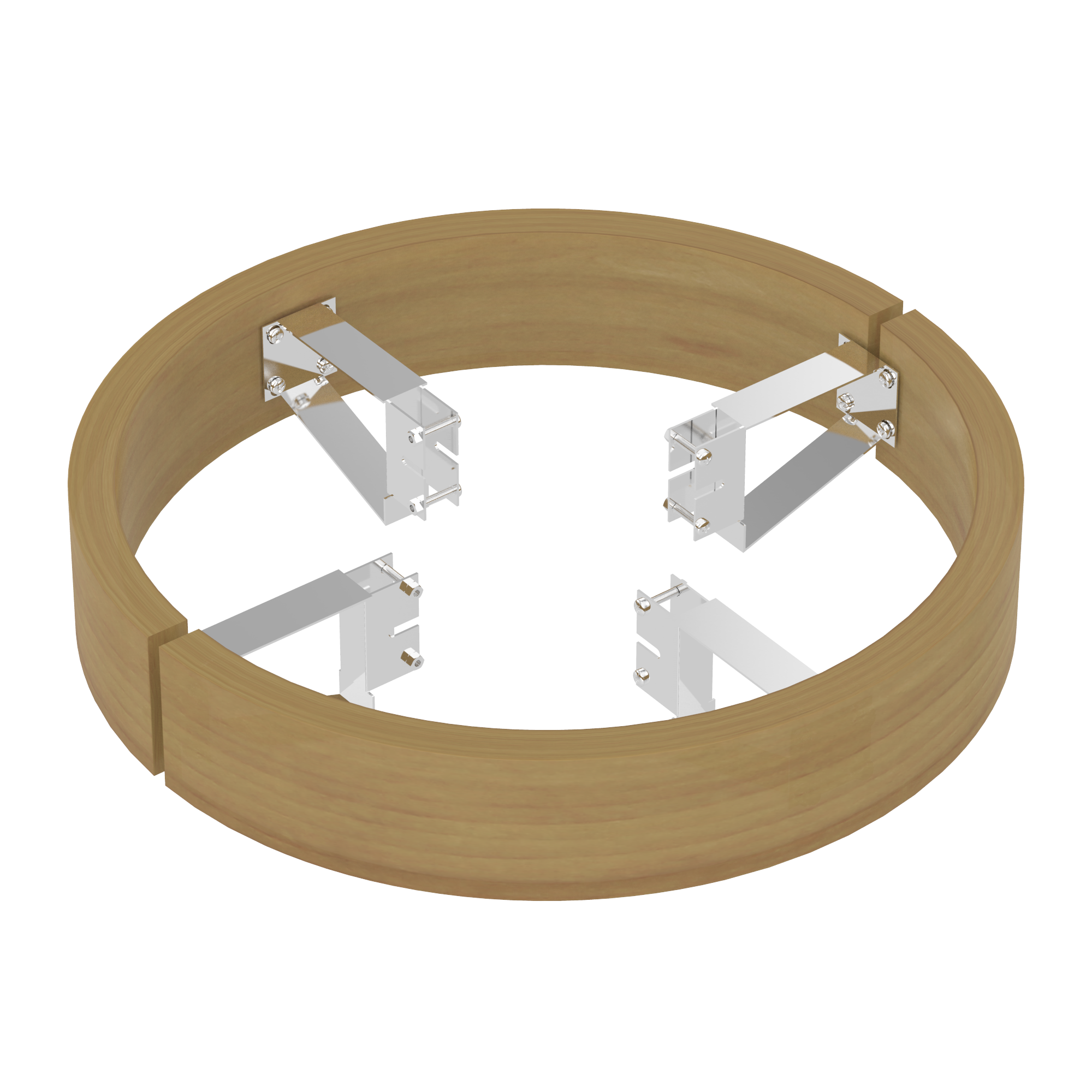

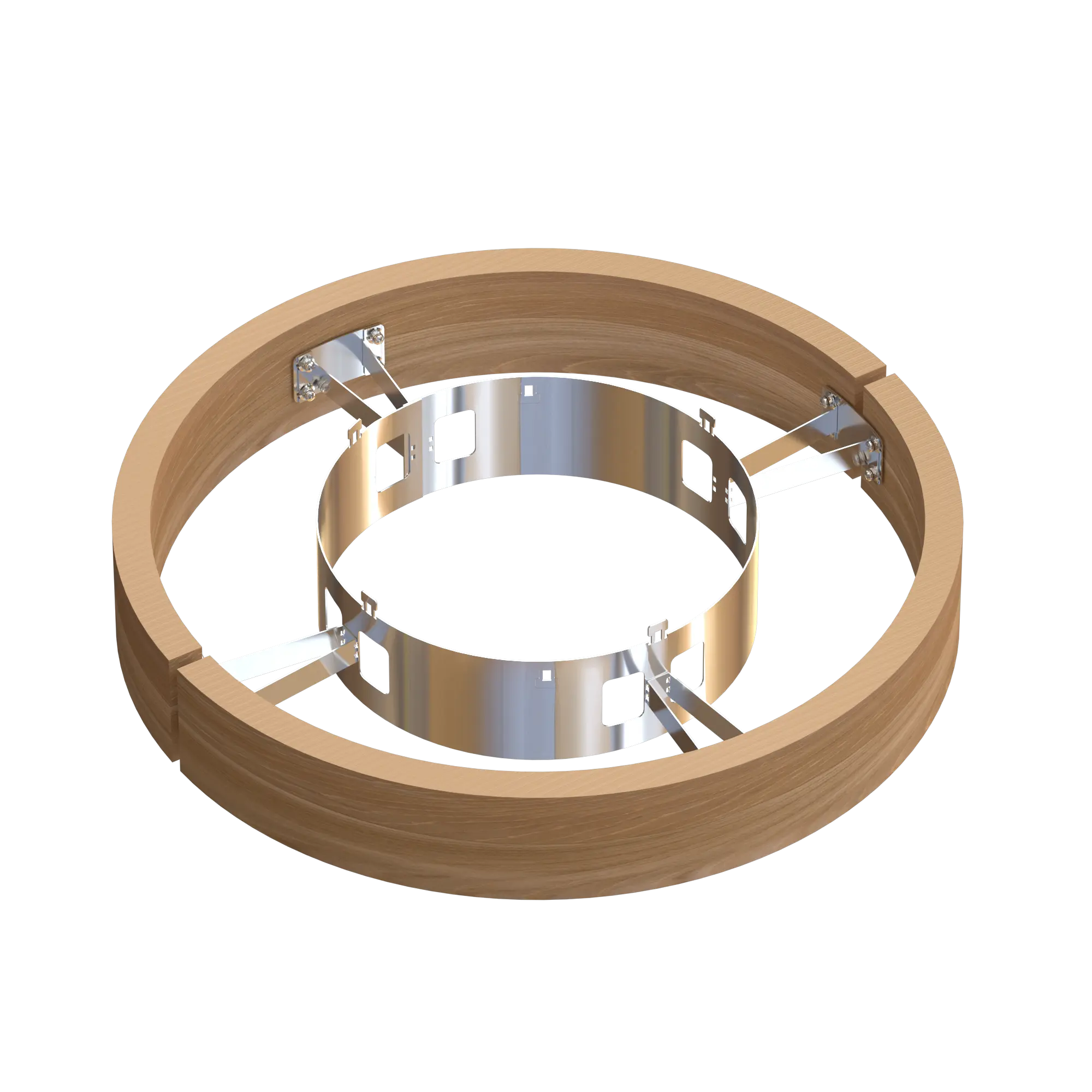

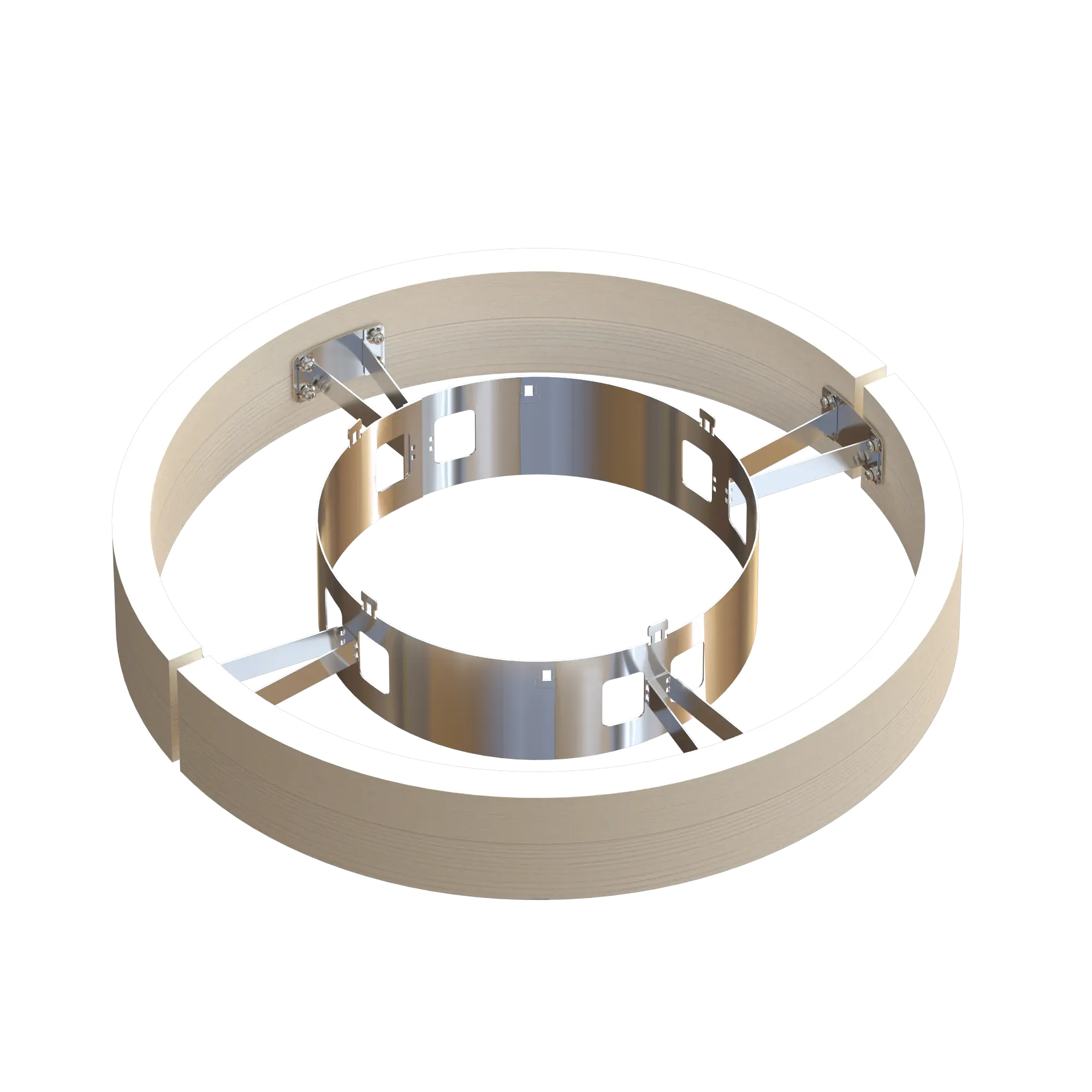

Round Heater Guard

(Cedar/Aspen)

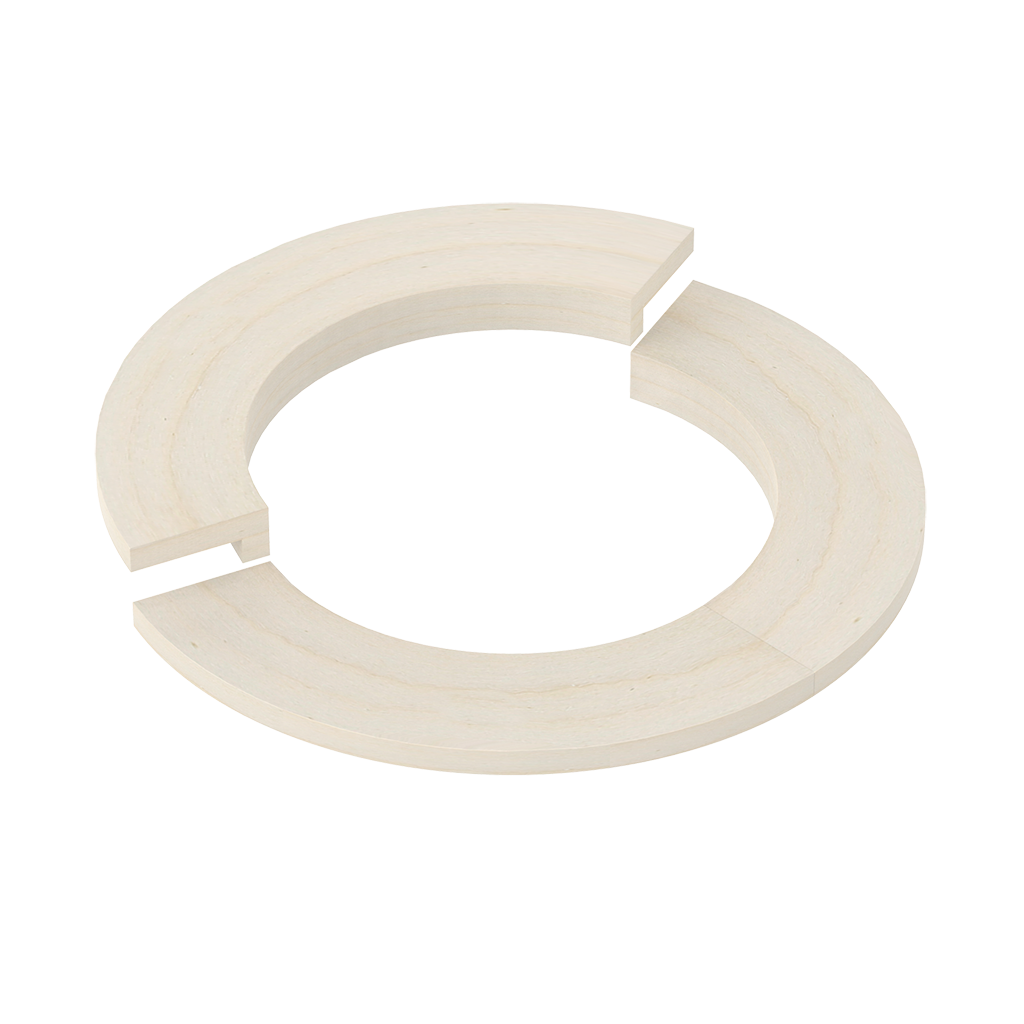

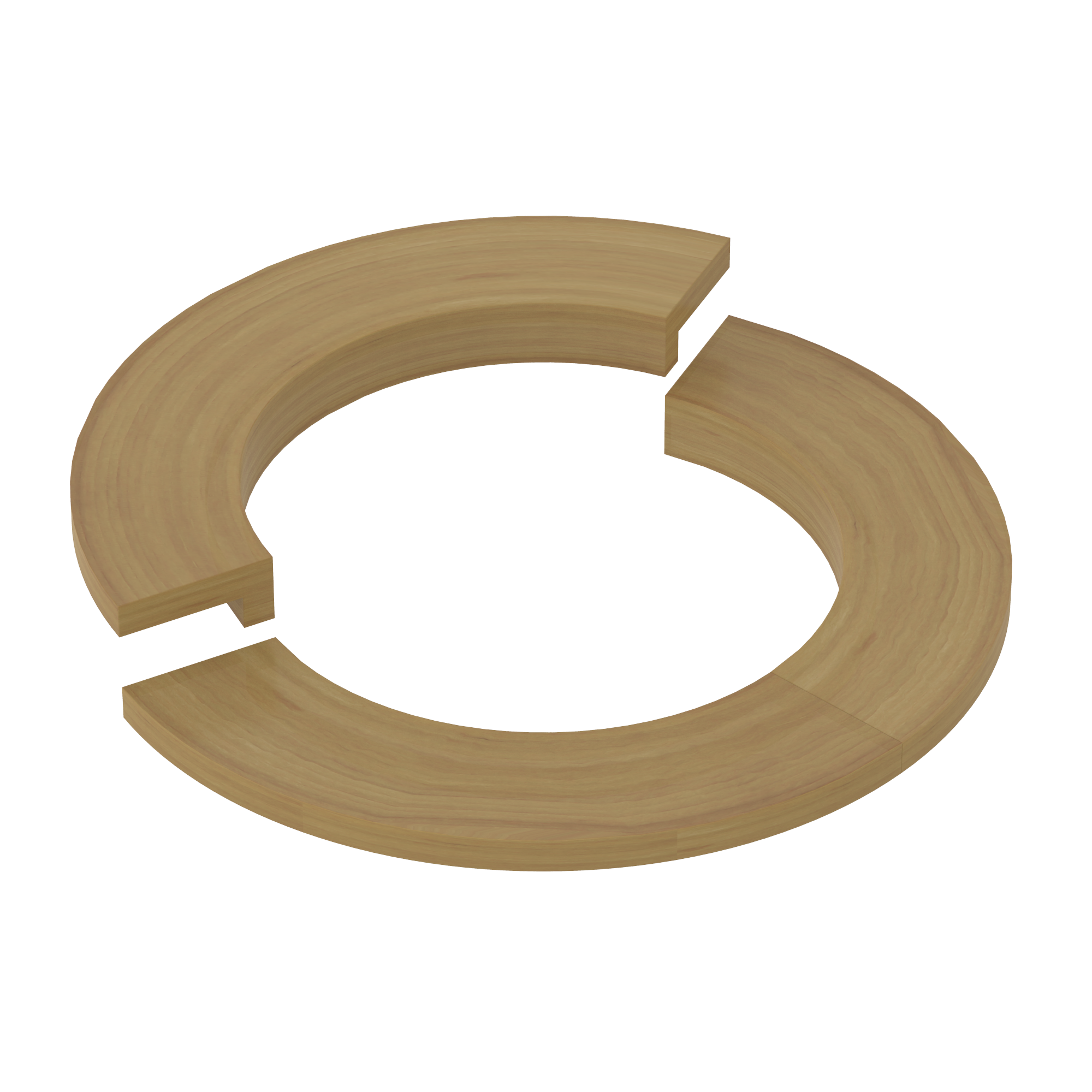

Round Integration Collar

(Cedar/Aspen)

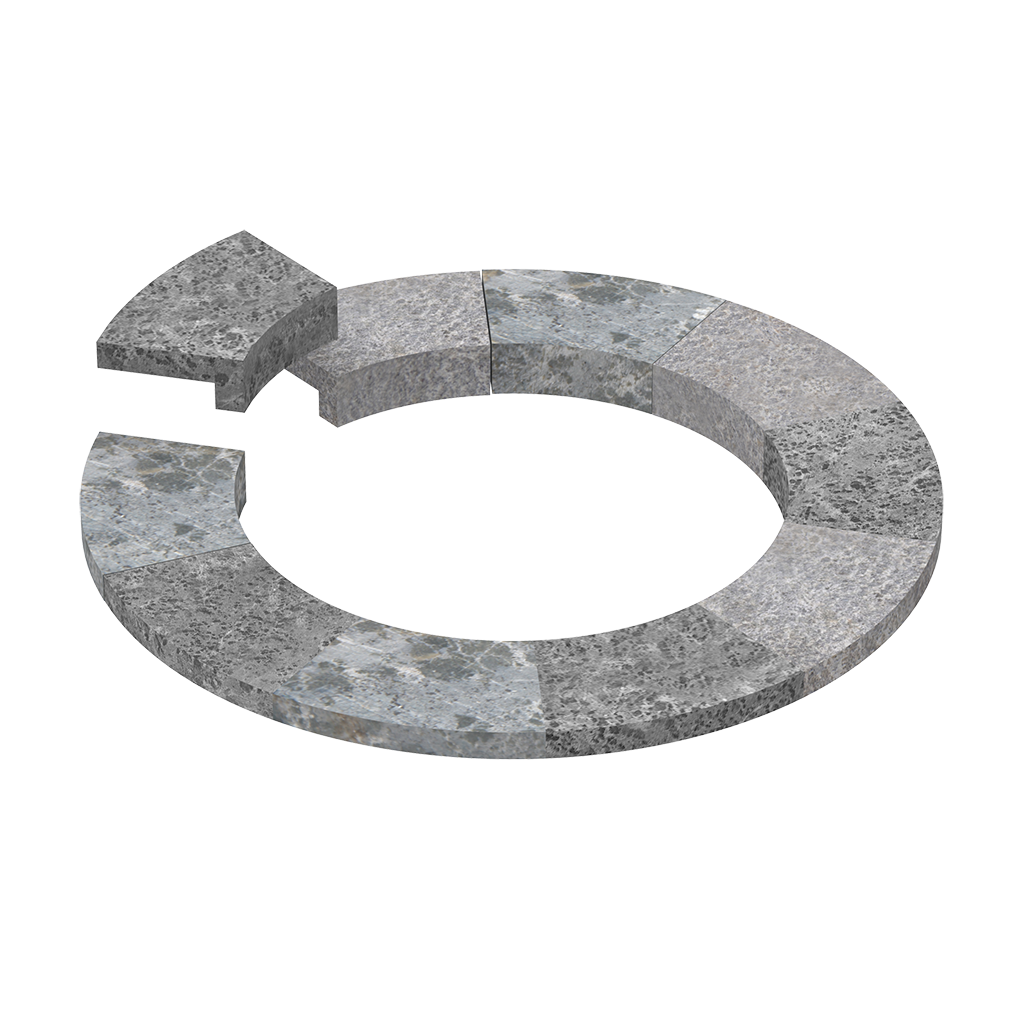

Round Integration Collar

(Soapstone)

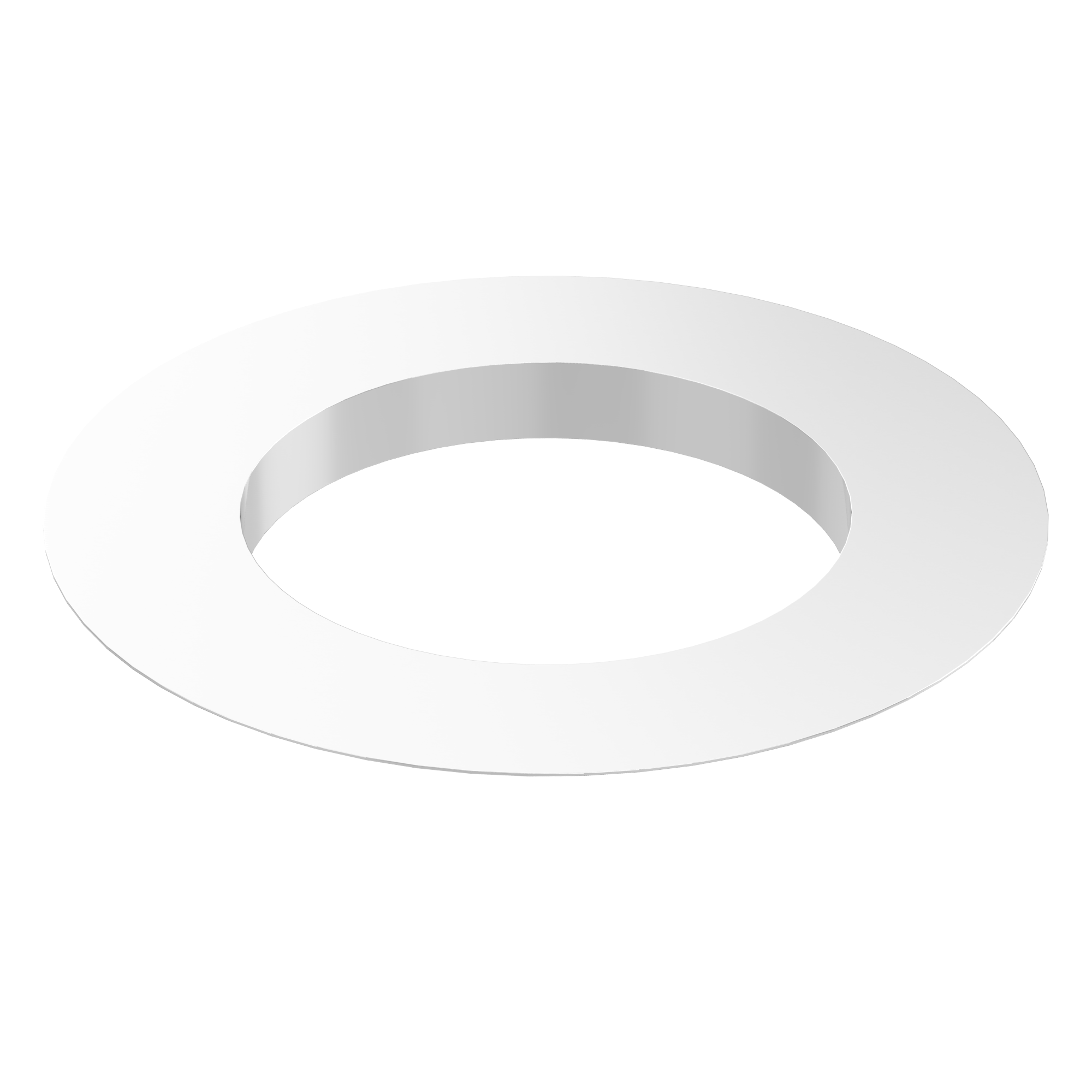

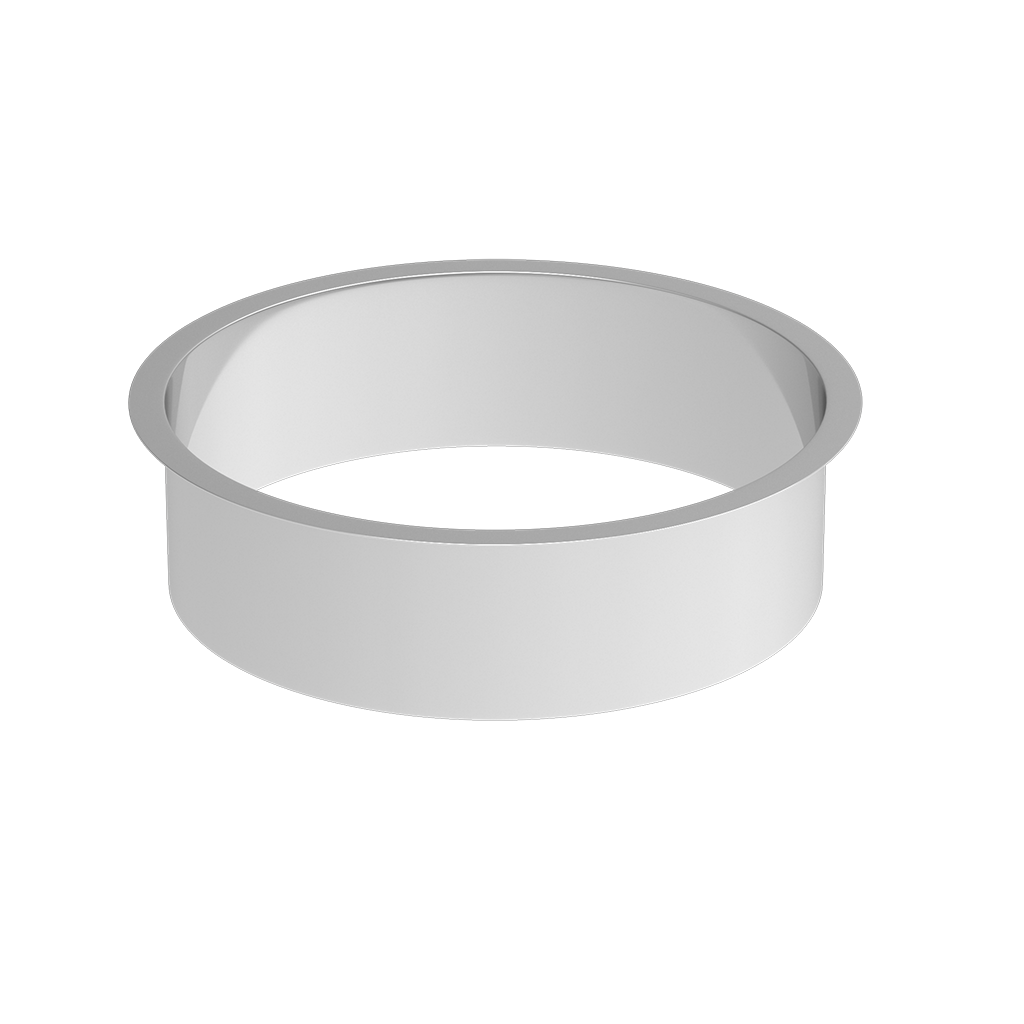

Round Integration Collar

(Stainless)

Cozy Tank

(Water volume: 0.3L)

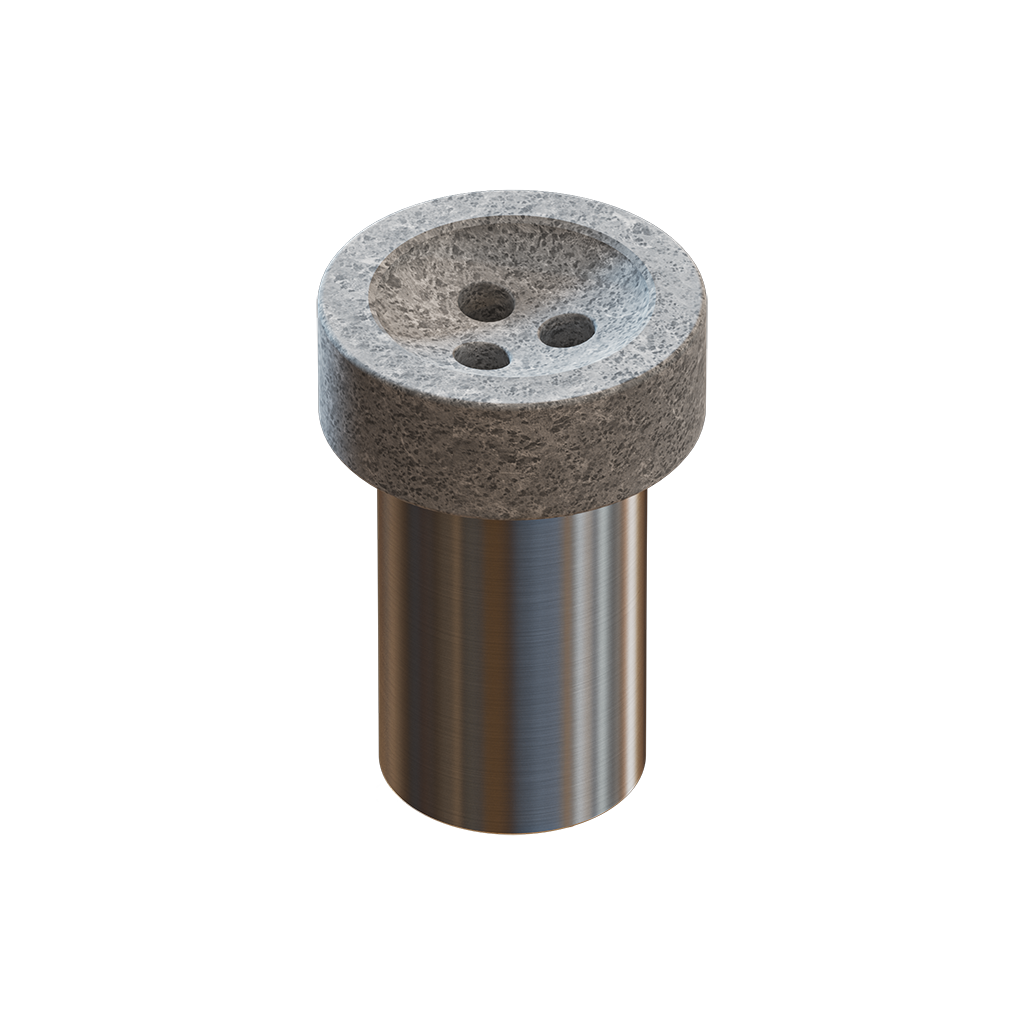

Cozy Tank

(Water volume: 0.6L)

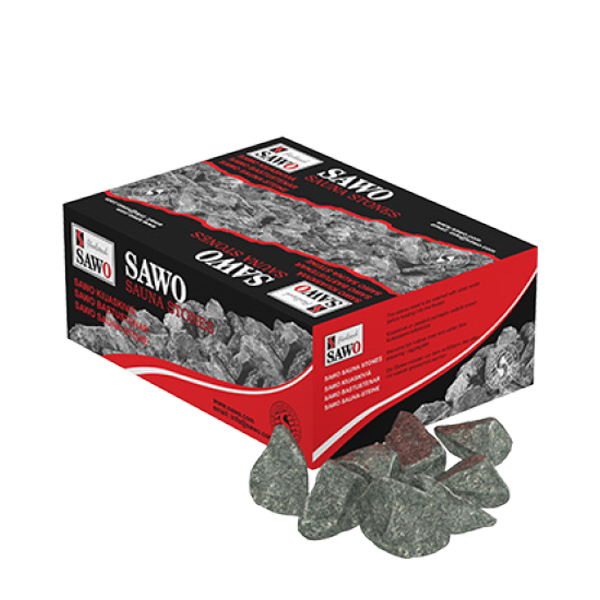

Sauna Stones

(Size: 20kg)

Model	Material	Size of Guard Rail (mm)
Model	Material	Length	Width	Height
TH-GUARD-W2-D \| A	Cedar / Aspen	510	510	45
TH-GUARD-W4-D \| A	Cedar / Aspen	560	560	45
TH-GUARD-W6-D \| A	Cedar / Aspen	620	620	45
TH-GUARD-W9-D \| A	Cedar / Aspen	690	690	45
TH-GUARD-W12-D \| A	Cedar / Aspen	790	790	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-W2-D \| A	440	440	45
TH-COLLAR-W4-D \| A	485	485	45
TH-COLLAR-W6-D \| A	540	540	45
TH-COLLAR-W9-D \| A	560	560	45
TH-COLLAR-W12-D \| A	685	685	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-S2	510	510	45
TH-COLLAR-S4	560	560	45
TH-COLLAR-S6	620	620	45
TH-COLLAR-S9	690	690	45
TH-COLLAR-S12	790	790	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-ST2	460	460	45
TH-COLLAR-ST4	540	540	45
TH-COLLAR-ST6	640	640	45
TH-COLLAR-ST9	720	720	45
TH-COLLAR-ST12	820	820	45
