Power Range: 3 – 9kW

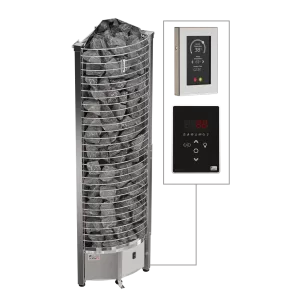

Tower Corner Ni2

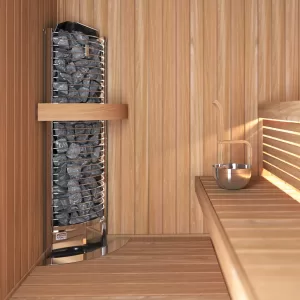

The Tower Corner heater is specifically designed to fit seamlessly into tight corners. It makes the most out of a sauna layout without sacrificing heat distribution and the impact of its elegant minimalist aesthetic. It comes with movable steel rings for easy replacement of broken stones, and its removable stone spacer offers two setup options: (1) with the spacer for faster heating, energy efficiency, and a hotter sauna or (2) without the spacer for room to accommodate more stones to generate more steam, a milder temperature, and energy savings in a commercial setup.

» Power range: 3.0 – 9.0kW

» Available control: Saunova 2.0 (Ni2)
» Stainless steel casing

» Movable steel rings for replacement of broken stones
» Removable stone spacer
» Adjustable legs
» Optional heater guard

» Optional integration collar

Inquire

Specifications

Technical Data

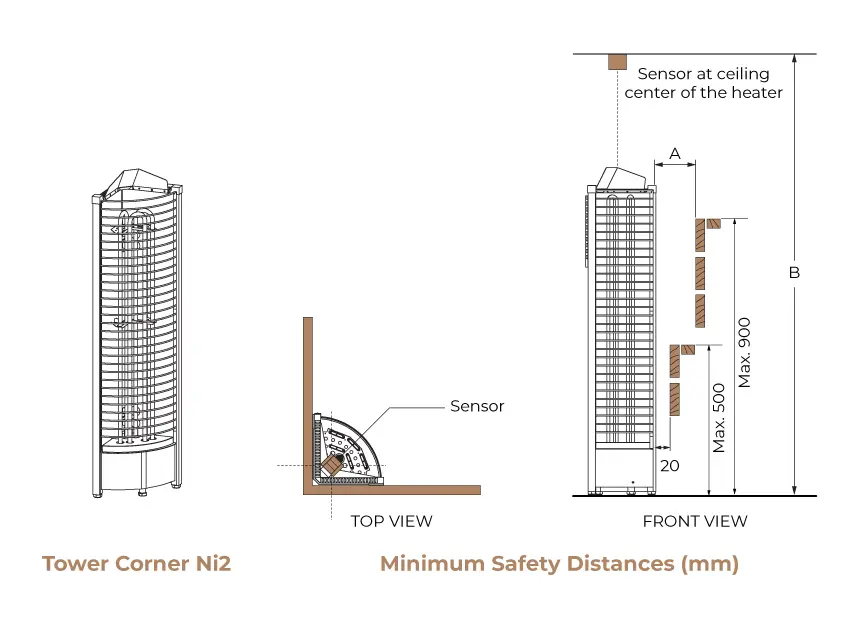

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg) w/o Stone Spacer	Stones (kg) with Stone Spacer	Control	Minimum Safety Distances A \| B
TH2-30Ni2-CNR-P-C	3.0	2 – 4	300 x 300 x 1380	70	45	Saunova	100	1900
TH3-35Ni2-CNR-P-C	3.5	3 – 6	300 x 300 x 1380	70	45	Saunova	100	1900
TH3-45Ni2-CNR-P-C	4.5	3 – 6	300 x 300 x 1380	70	45	Saunova	100	1900
TH3-60Ni2-CNR-P-C	6.0	5 – 8	300 x 300 x 1380	70	45	Saunova	100	1900
TH4-60Ni2-CNR-P-C	6.0	5 – 9	355 x 355 x 1380	105	70	Saunova	100	1900
TH5-80Ni2-CNR-P-C	8.0	7 – 13	355 x 355 x 1380	105	70	Saunova	100	1900
TH5-90Ni2-CNR-P-C	9.0	8 – 14	355 x 355 x 1380	105	70	Saunova	100	1900
TH6-80Ni2-CNR-P	8.0	7 – 14	415 x 415 x 1380	160	80	Saunova	100	1900
TH6-90Ni2-CNR-P	9.0	8 – 15	415 x 415 x 1380	160	80	Saunova	100	1900

Resources

Tower Corner Ni2 Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

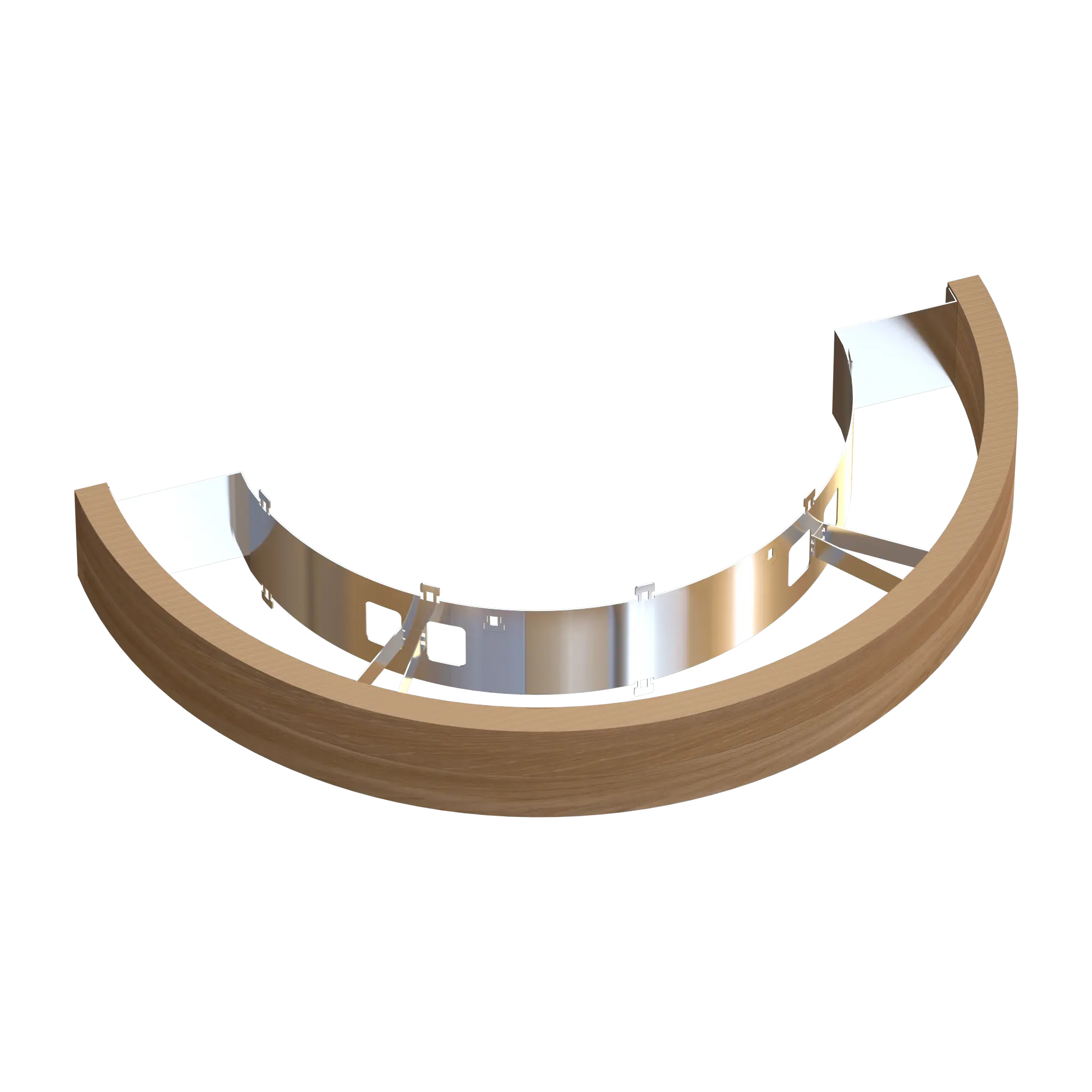

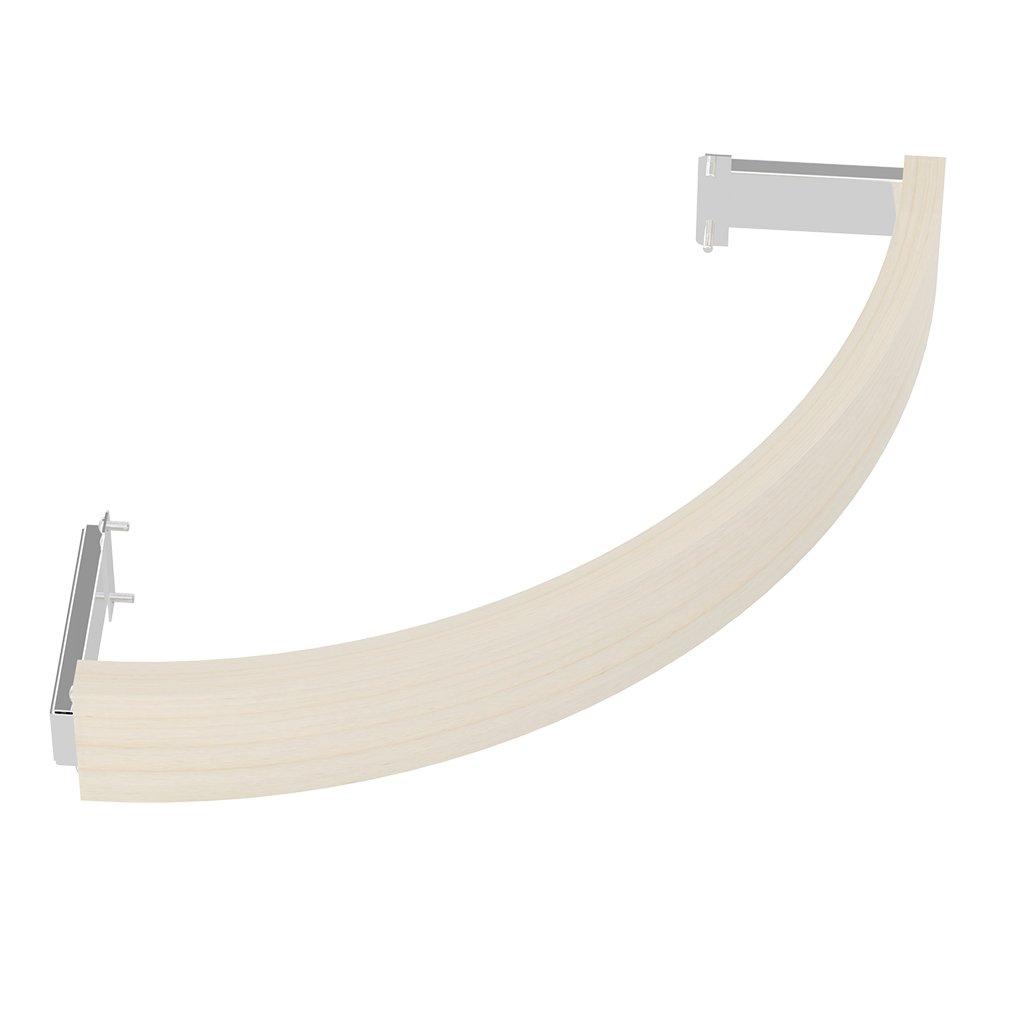

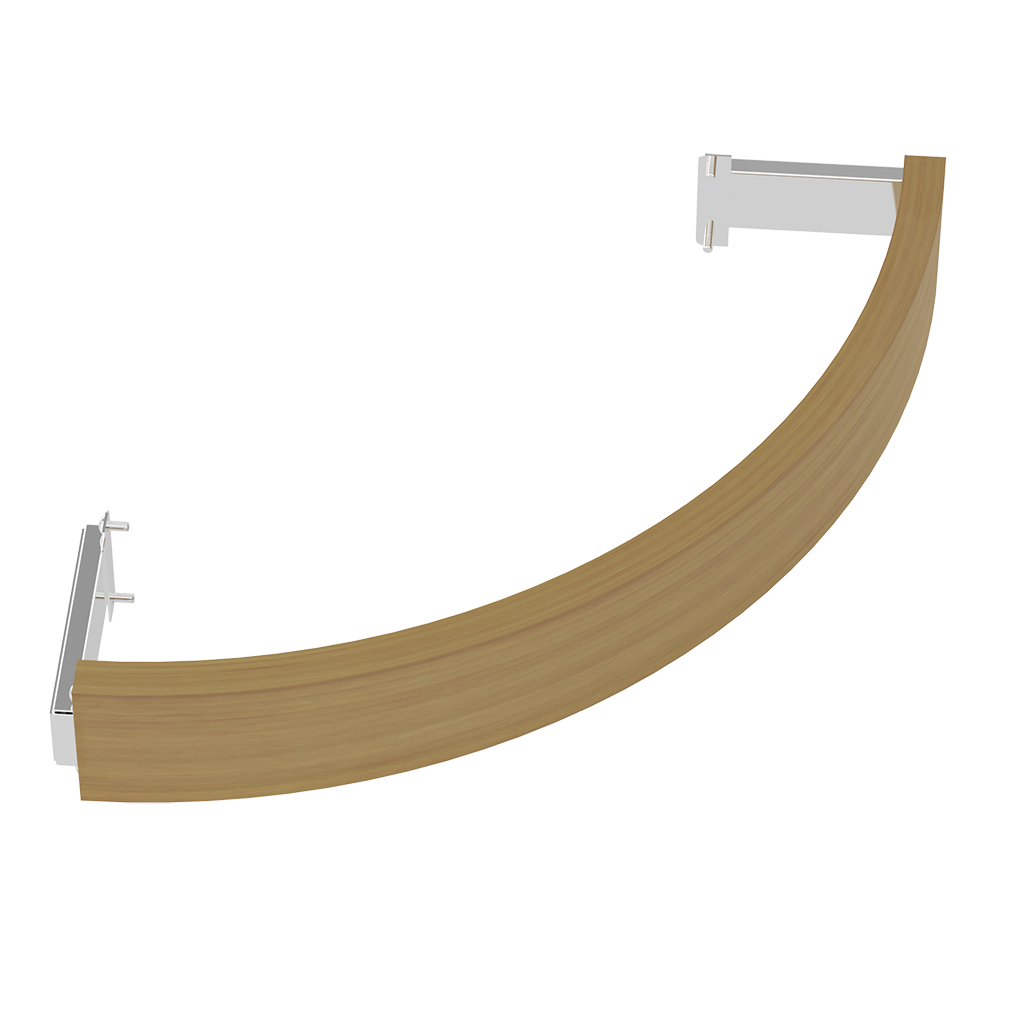

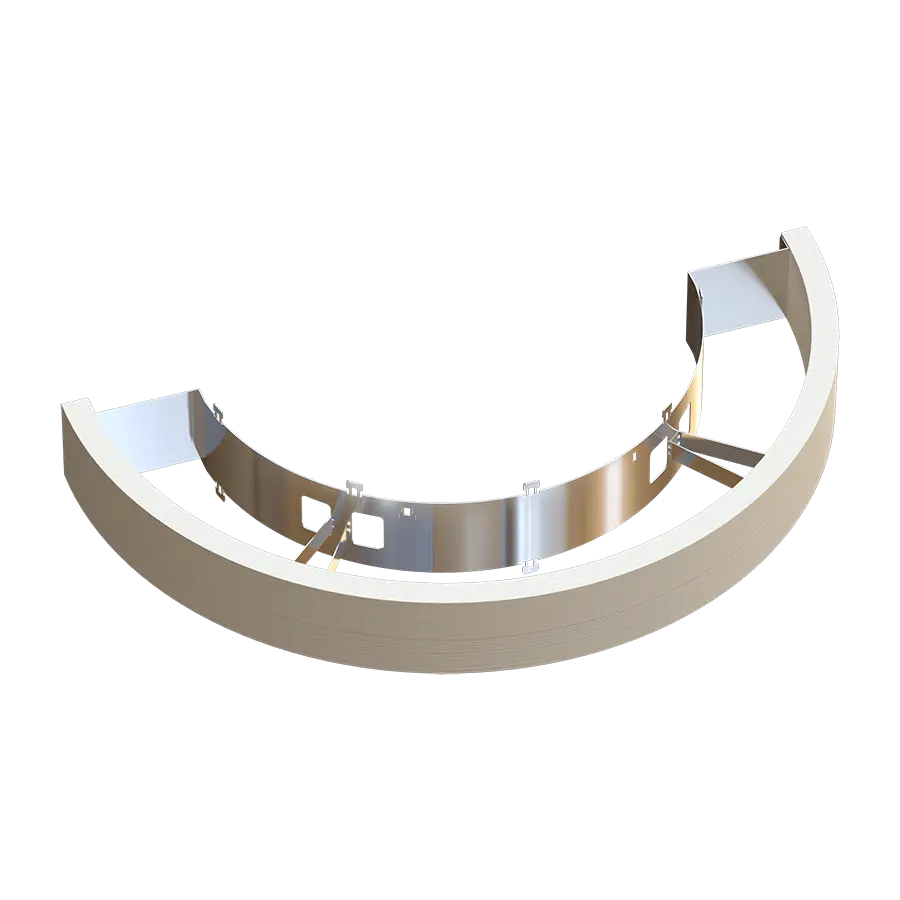

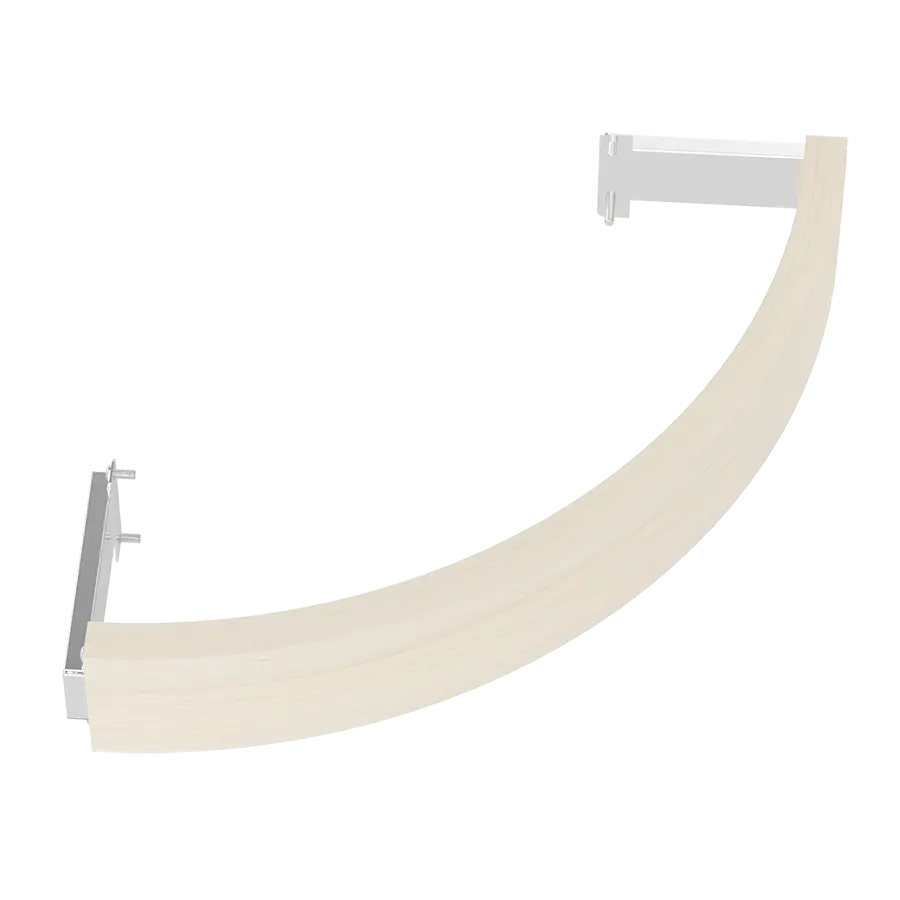

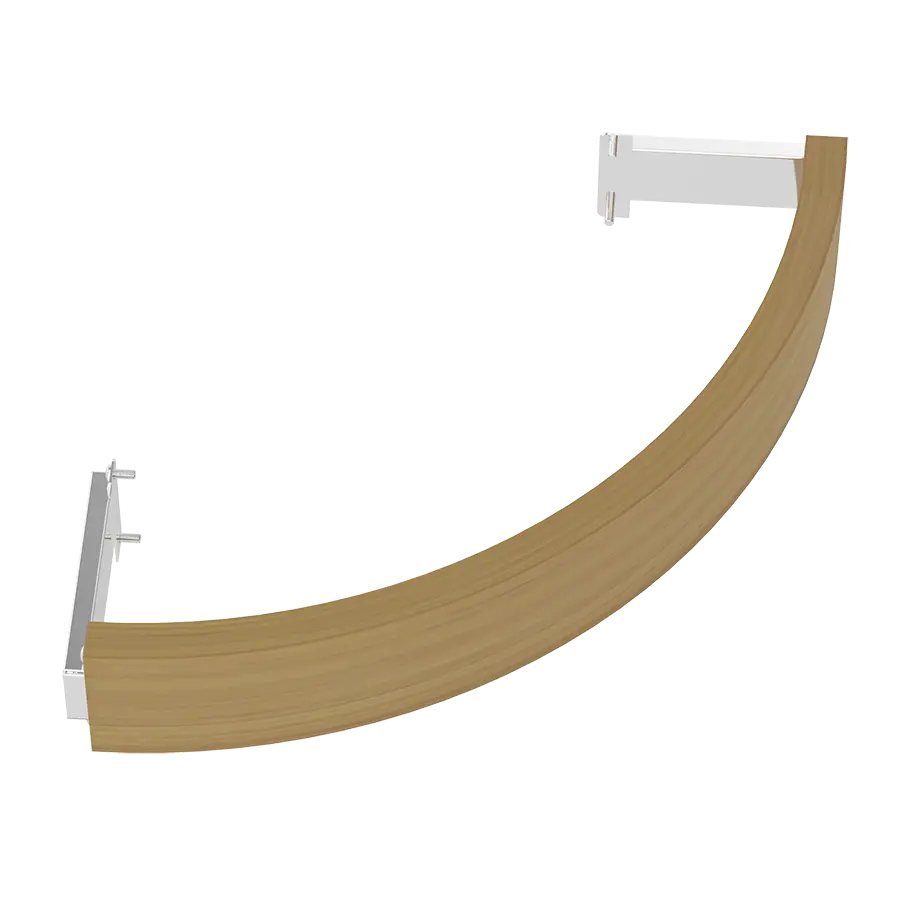

Wall Heater Guard

(Cedar/Aspen)

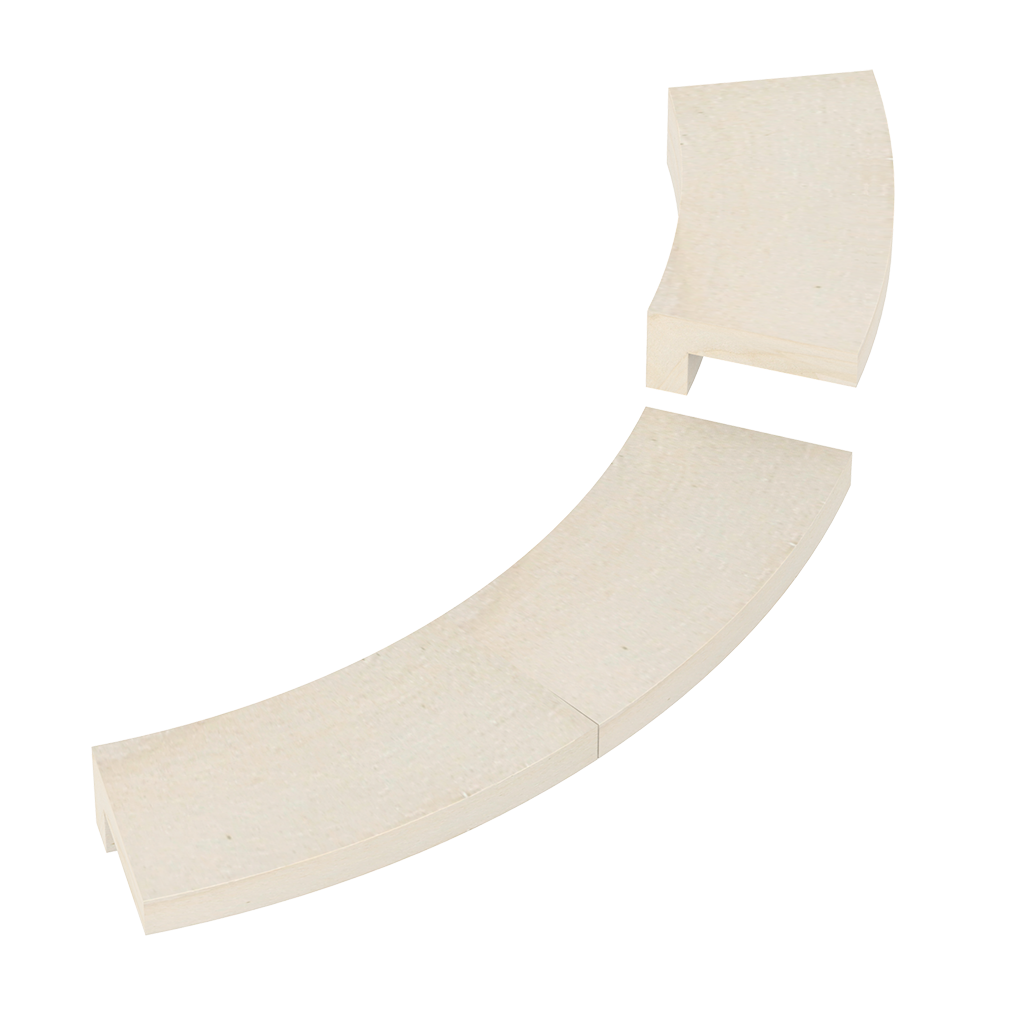

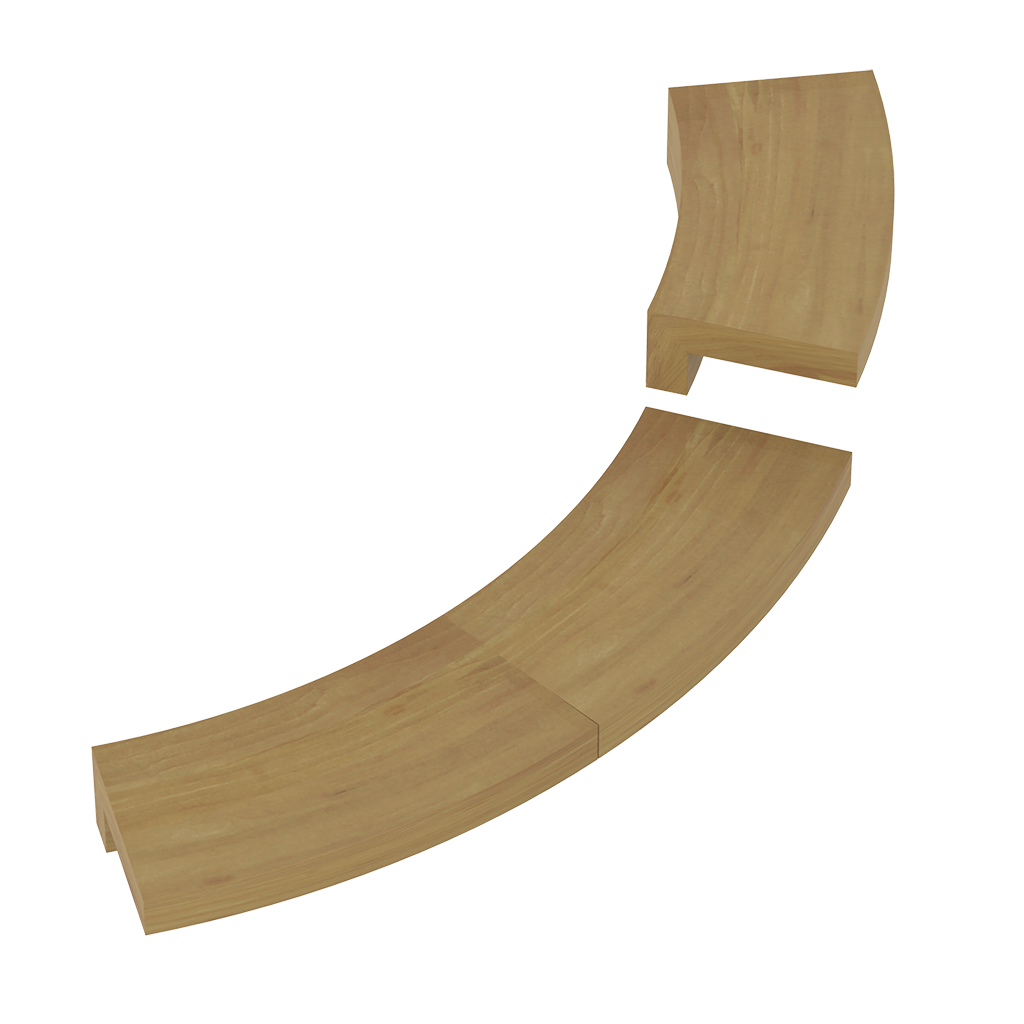

Wall Integration Collar

(Cedar/Aspen)

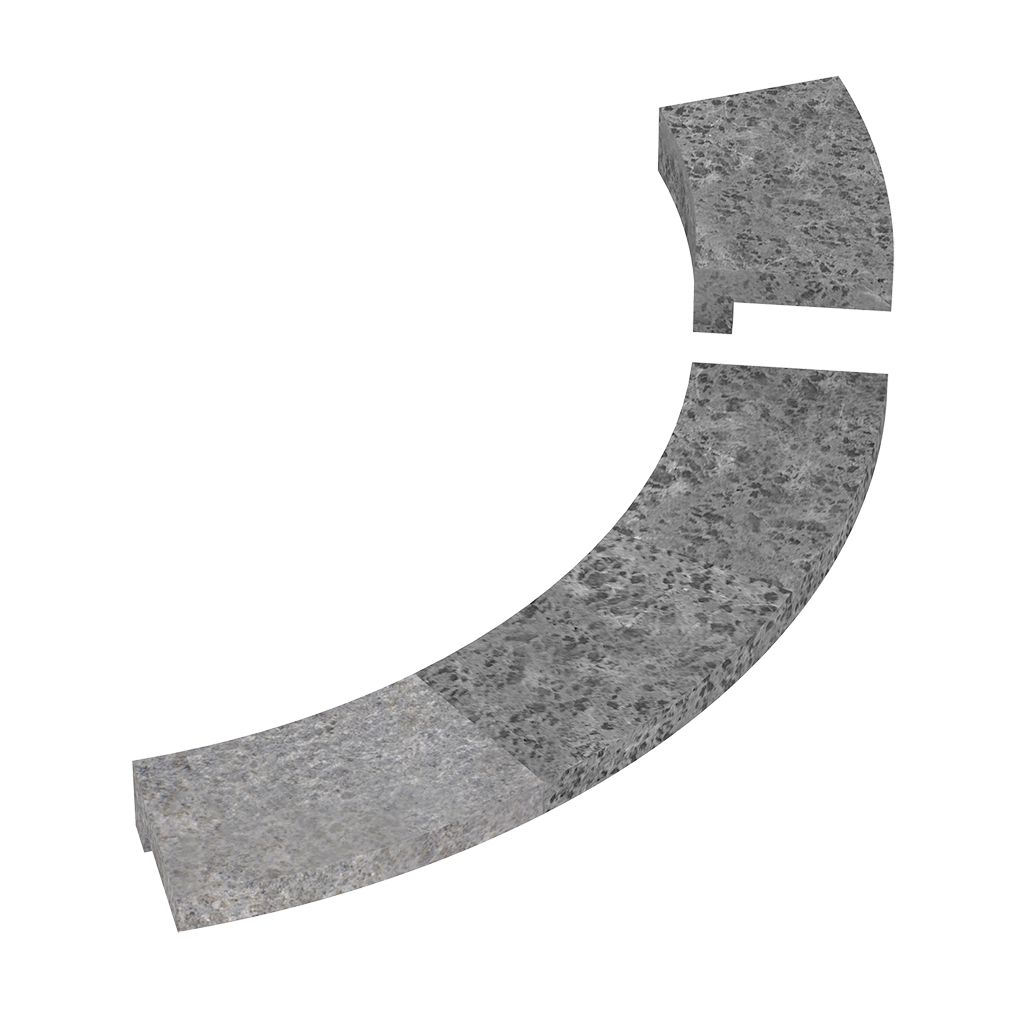

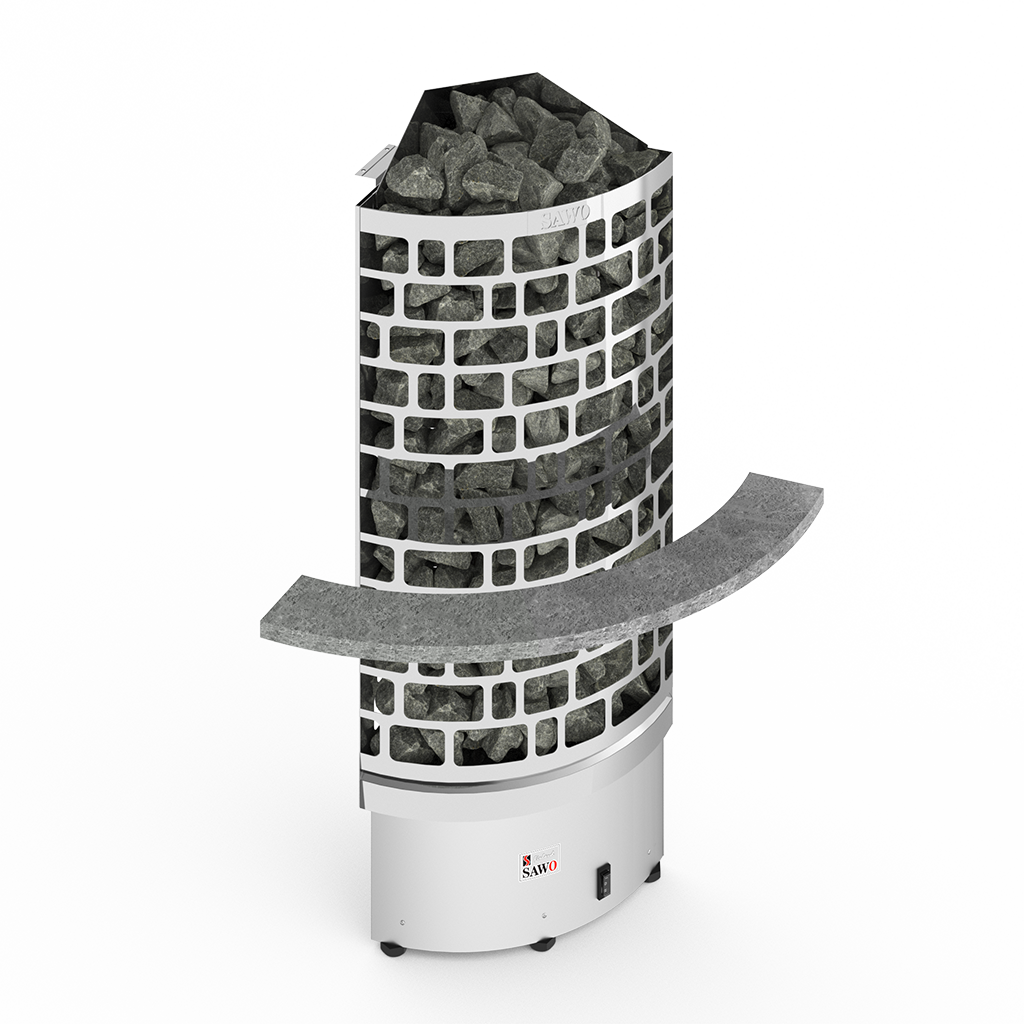

Wall Integration Collar

(Soapstone)

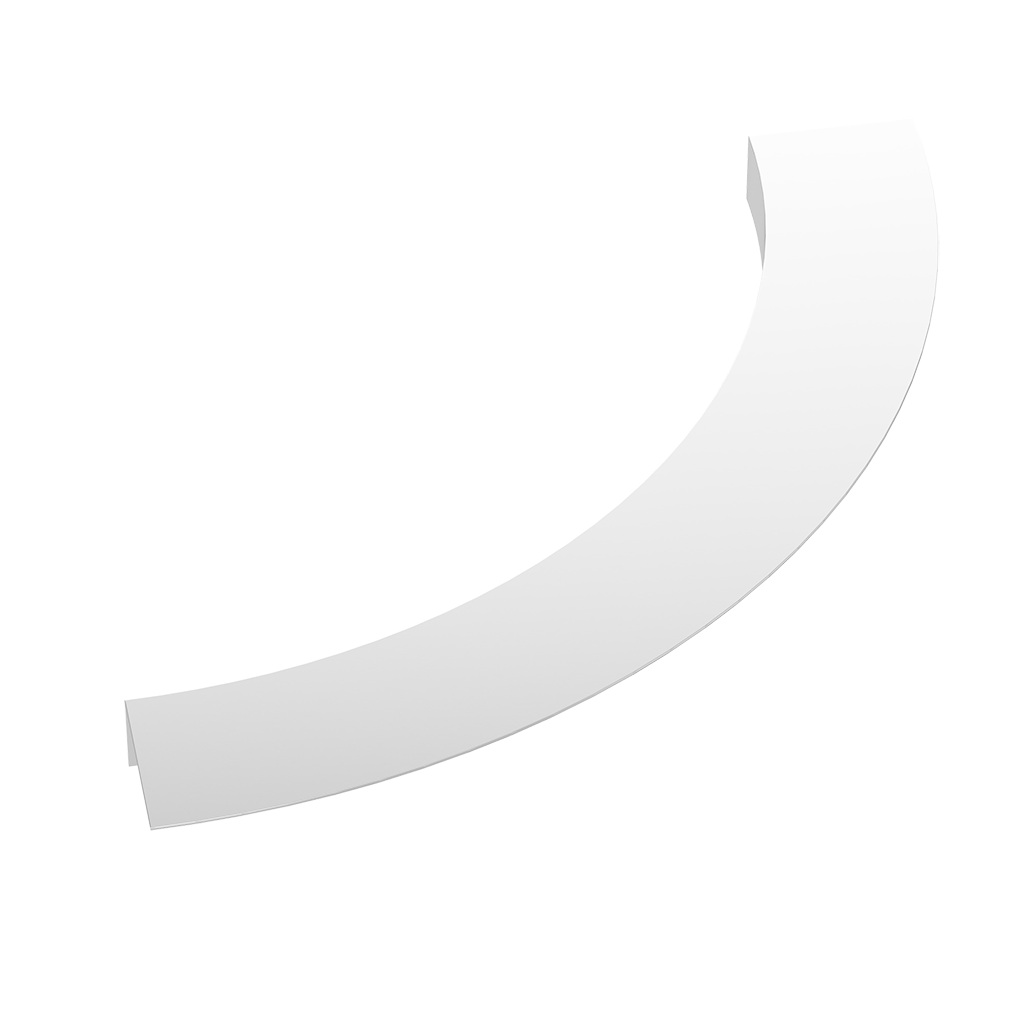

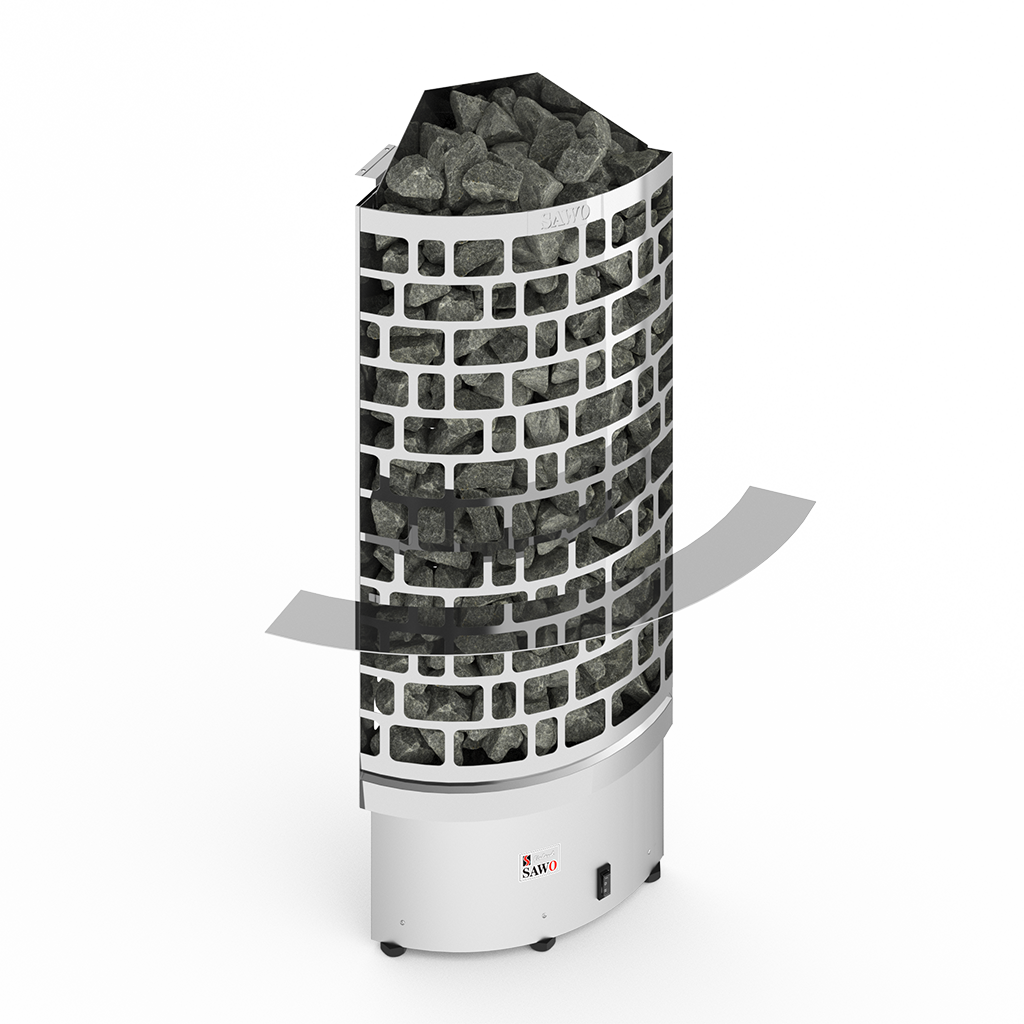

Wall Integration Collar

(Stainless Steel)

Cozy Tank

(Water volume: 0.3L)

Cozy Tank

(Water volume: 0.6L)

Sauna Stones

(Size: 20kg)

Model	Size of Guard Rail (mm)
Model	Length	Width	Height
SW-GUARD-W2-CNR-D	206	580	88
SW-GUARD-W2-CNR-A	206	580	88
SW-GUARD-W6-CNR-D	245	755	88
SW-GUARD-W6-CNR-A	245	755	88

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-W2-CNR-D \| A	200	600	45
TH-COLLAR-W4-CNR-D \| A	215	670	45
TH-COLLAR-W6-CNR-D \| A	235	755	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-S2-CNR	425	425	45
TH-COLLAR-S4-CNR	475	475	45
TH-COLLAR-S6-CNR	535	535	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-ST2-CNR	220	670	42
TH-COLLAR-ST4-CNR	235	730	42
TH-COLLAR-ST6-CNR	245	795	42
