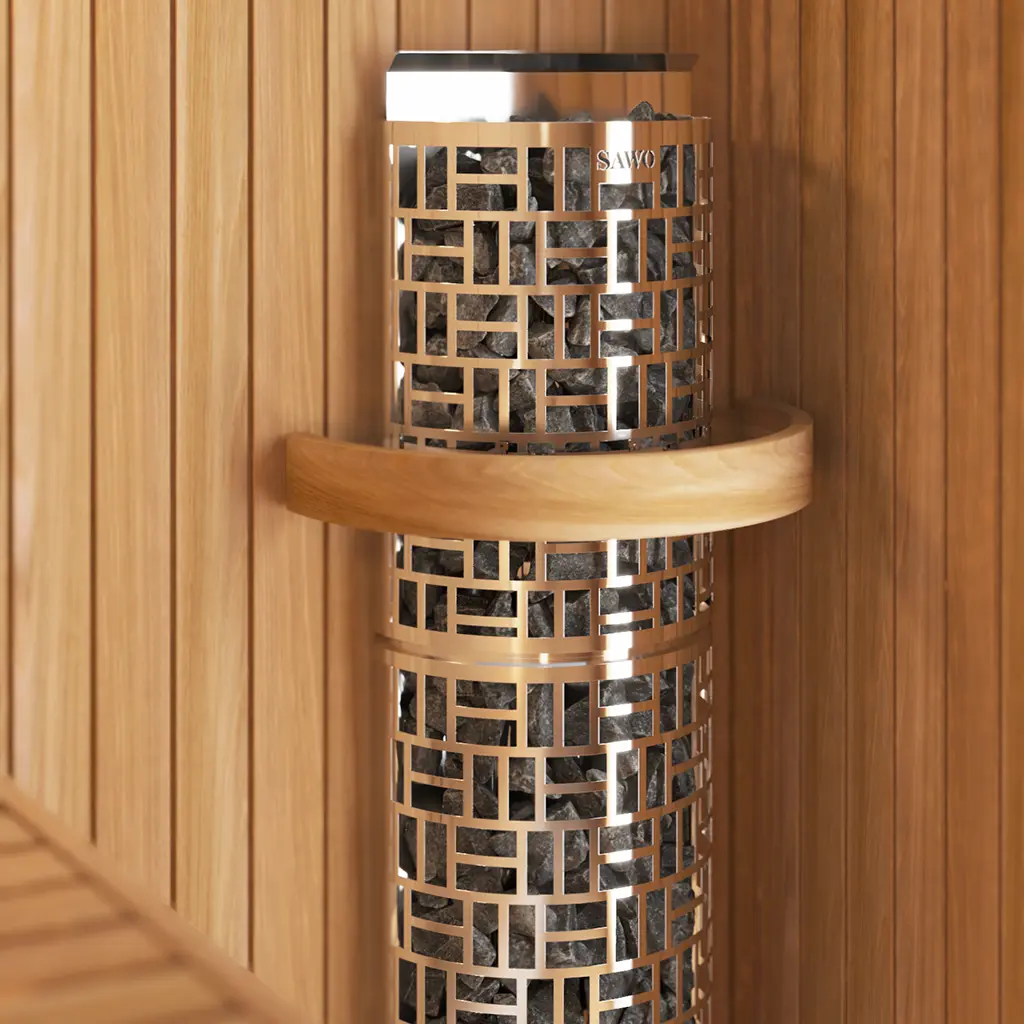

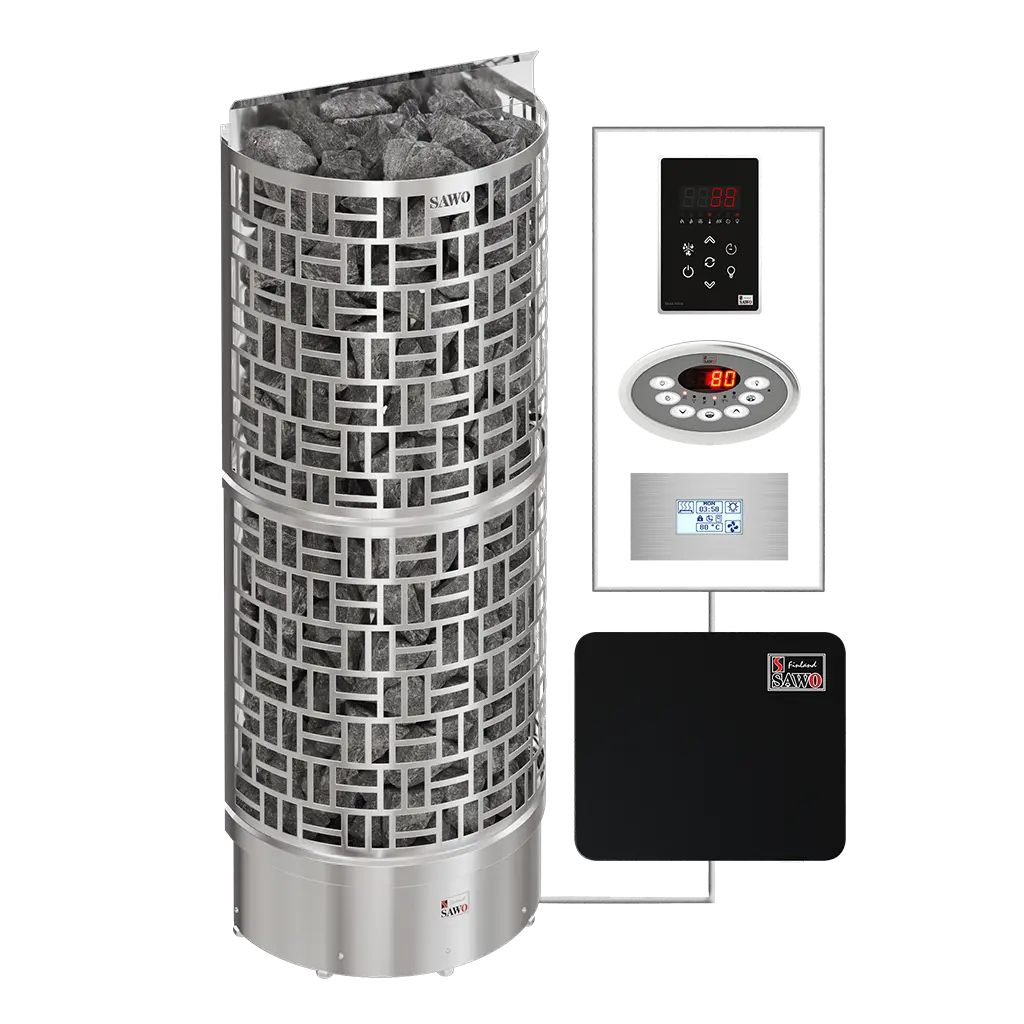

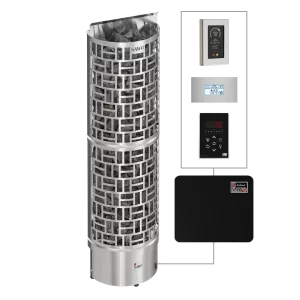

SAWO30 Wall NS

The SAWO30 Wall heater is perfect for maximizing space and adding a minimalist yet stylish aesthetic. Its capacity to hold more stones in its tall, sleek body ensures it delivers an abundant amount steam and humidity. The SAWO30 Wall also comes with a removable stone spacer, which offers two setup options of (1) faster heating, energy efficiency, and a hotter sauna with the spacer, or (2) room for more stones to generate more steam, milder temperature, and energy savings in a commercial setup without the spacer.

» Power range: 4.5 – 24.0kW
» Available controls: Saunova 2.0 (Ni2)
» Stainless steel casing
» Removable upper half for easier loading of stones
» Removable stone spacer
» Optional heater guard
» Optional integration collar

Technical Data

SAWO Wall NS sauna heater installation safety distance chart

Heater Model kW Sauna Room
min. (m3) max.
Size of Heater (mm)
Length Width Height
Stones (kg)
w/o Stone Spacer
Stones (kg)
with Stone Spacer
Control Minimum Safety Distances
A | B
SW3-45NS-WL-P-C 4.5 3 – 6 210 x 390 x 1375 70 60 Separate 100 1900
SW3-60NS-WL-P-C 6.0 5 – 8 210 x 390 x 1375 70 60 Separate 100 1900
SW6-90NS-WL-P-C 9.0 8 – 15 290 x 540 x 1375 160 100 Separate 100 1900
SW6-120NS-WL-P 12.0 11 – 18 290 x 540 x 1375 160 100 Separate 100 2100
SW12-180NS-WL-P 18.0 18 – 30 430 x 780 x 1375 250 165 Separate 100 2300
SW12-210NS-WL-P 21.0 22 – 35 430 x 780 x 1375 250 165 Separate 100 2300
SW12-240NS-WL-P 24.0 24 – 40 430 x 780 x 1375 250 165 Separate 100 2300

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

Wall Heater Guard
(Cedar/Aspen)
Wall Integration Collar
(Cedar/Aspen)
Wall Integration Collar
(Soapstone)
Wall Integration Collar
(Stainless Steel)
Cozy Tank
(Water volume: 0.3L)
Cozy Tank
(Water volume: 0.6L)
Sauna Stones
(Size: 20kg)
