Power Range: 4.5 – 24kW

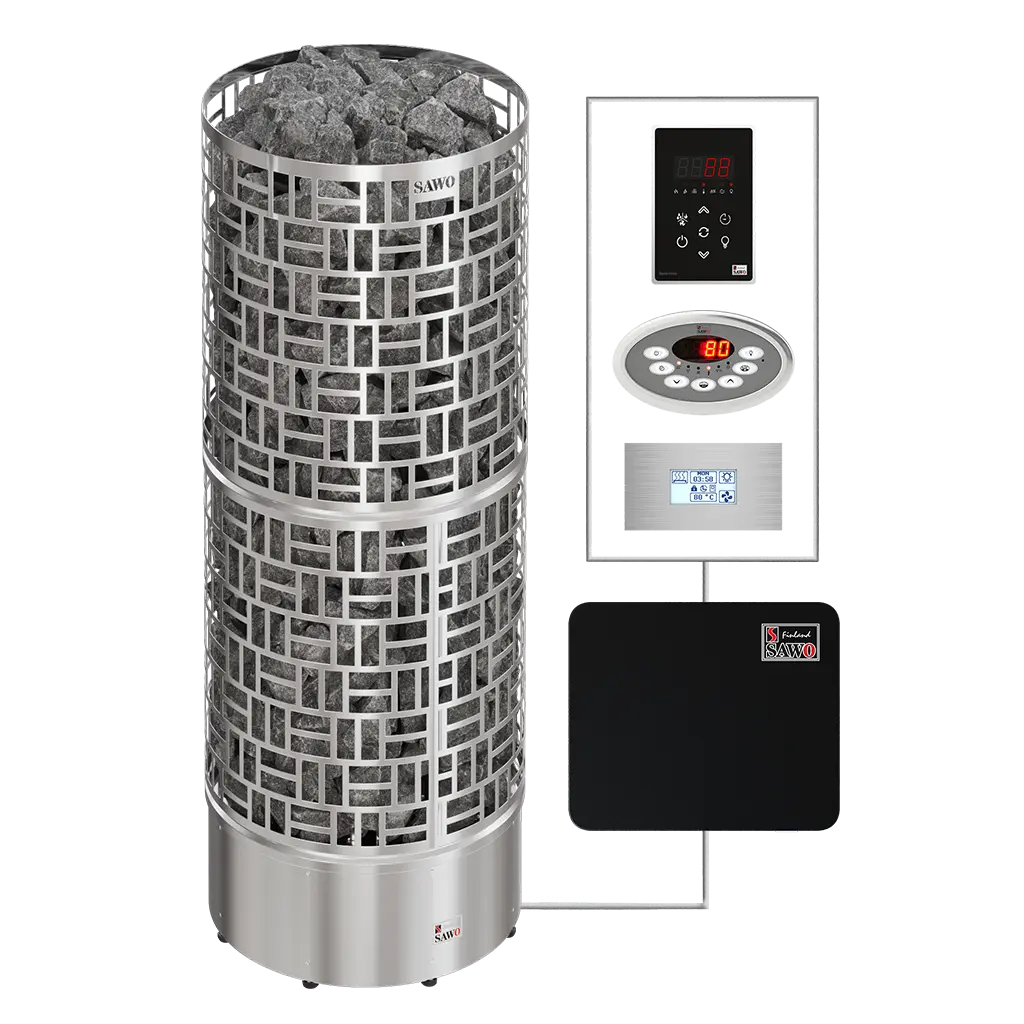

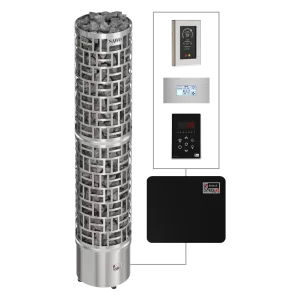

SAWO30 Round NS

The SAWO30 Round is both minimalist and stylish. It can be installed in the middle of the sauna or embedded in a bench. Its height enables even heat distribution, and its capacity to hold more stones ensures a deeply reinvigorating sauna atmosphere. The SAWO30 Round also comes with a removable stone spacer and offers two setup options of (1) faster heating, energy efficiency, and a hotter sauna with the spacer, or (2) room for more stones to generate more steam, milder temperature, and energy savings in a commercial setup without the spacer.

» Power range: 4.5 – 24.0kW

» Available controls: Saunova/Innova (NS)

» Stainless-steel casing

» Removable upper half for easier loading of stones
» Removable stone spacer
» Optional heater guard
» Optional integration collar

Inquire

Specifications

Technical Data

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg) w/o Stone Spacer	Stones (kg) w/ Stone Spacer	Minimum Safety Distances A \| B
SW3-45NS-P-C	4.5	3 – 6	245 x 245 x 1305	70	60	100	1900
SW3-60NS-P-C	6.0	5 – 8	245 x 245 x 1305	70	60	100	1900
SW6-90NS-P-C	9.0	8 – 15	345 x 345 x 1305	160	100	100	1900
SW6-120NS-P	12.0	11 – 18	345 x 345 x 1305	160	100	100	2100
SW12-180NS-P	18.0	18 – 30	515 x 515 x 1305	360	220	100	2300
SW12-210NS-P	21.0	22 – 35	515 x 515 x 1305	360	220	100	2300
SW12-240NS-P	24.0	24 – 40	515 x 515 x 1305	360	220	100	2300

Resources

SAWO30 Round NS Manual

Tower Heater Stone Spacer Brochure

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

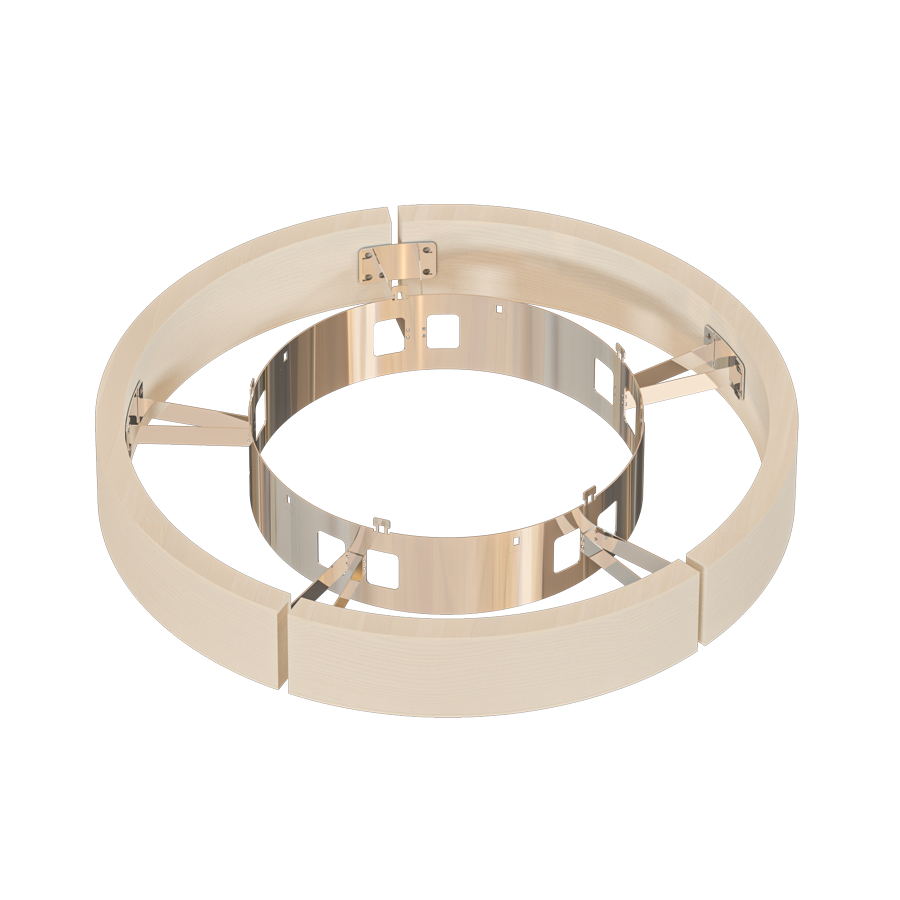

Round Heater Guard

(Cedar/Aspen)

Round Integration Collar

(Cedar/Aspen)

Round Integration Collar

(Soapstone)

Round Integration Collar

(Stainless Steel)

Round Integration Collar

(Stainless Steel)

Cozy Tank

(Water volume: 0.6L)

Sauna Stones

(Size: 20kg)

Model	Material	Size of Guard Rail (mm)
Model	Material	Length	Width	Height
SW-GUARD-W2-D	Cedar	507	507	88
SW-GUARD-W2-A	Aspen	507	507	88
SW-GUARD-W6-D	Cedar	620	620	88
SW-GUARD-W6-A	Aspen	620	620	88
SW-GUARD-W12-D	Cedar	790	790	88
SW-GUARD-W12-A	Aspen	790	790	88

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-W2-D \| A	440	440	45
TH-COLLAR-W4-D \| A	485	485	45
TH-COLLAR-W6-D \| A	540	540	45
TH-COLLAR-W9-D \| A	560	560	45
TH-COLLAR-W12-D \| A	685	685	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-S2	507	507	45
TH-COLLAR-S4	560	560	45
TH-COLLAR-S6	620	620	45
TH-COLLAR-S9	690	690	45
TH-COLLAR-S12	790	790	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-ST2	460	460	42
TH-COLLAR-ST4	540	540	42
TH-COLLAR-ST6	640	640	42
TH-COLLAR-ST9	720	720	42
TH-COLLAR-ST12	820	820	42

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-V2-ST4	420	420	105
