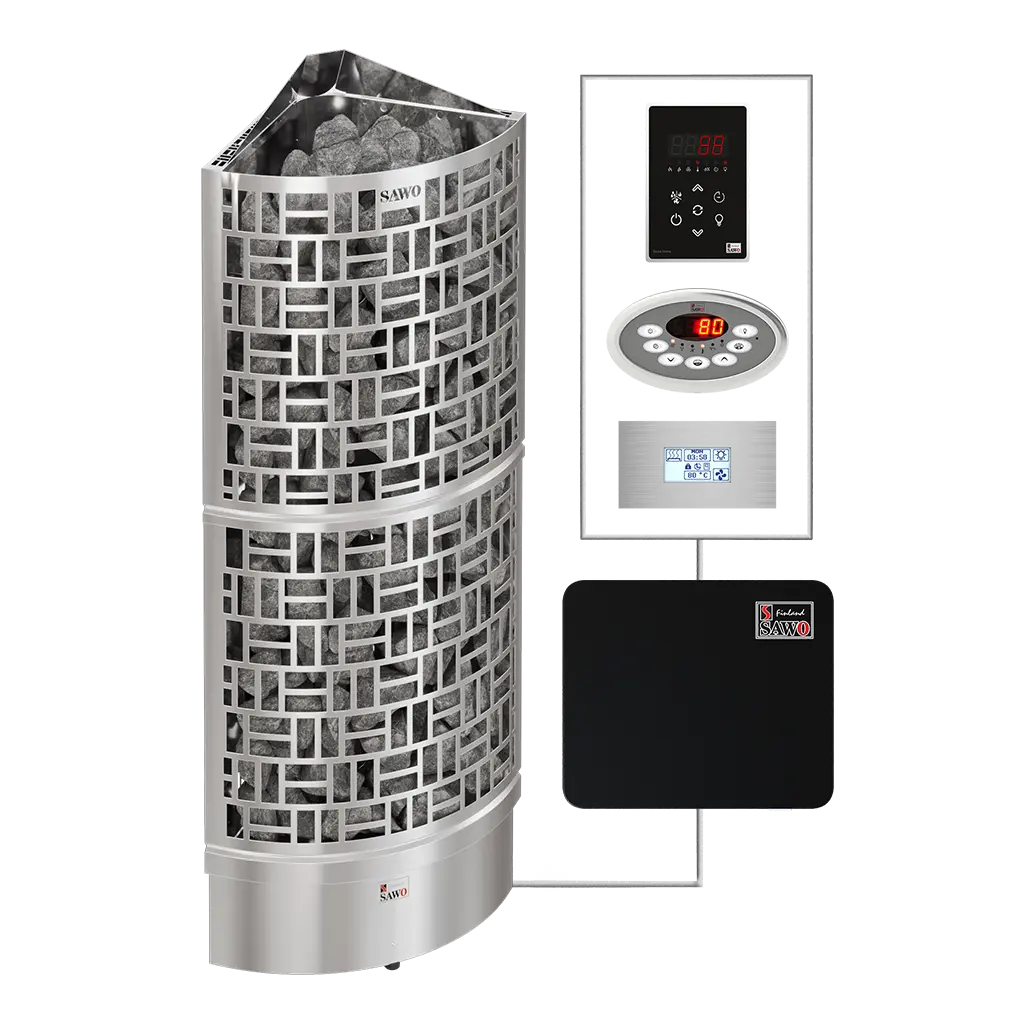

SAWO30 Corner NS

The SAWO30 Corner is designed for sauna layouts where space is at a premium. Like all Tower heaters, its height ensures it delivers evenly distributed heat, from bottom to top. The SAWO30 Corner also comes with a removable stone spacer, which offers two setup options of (1) faster heating, energy efficiency, and a hotter sauna with the spacer, or (2) room for more stones to generate more steam, milder temperature, and energy savings in a commercial setup without the spacer.

» Power range: 4.5 – 12.0kW
» Available controls: Saunova/Innova (NS)
» Stainless steel casing
» Removable upper half for easier loading of stones
» Removable stone spacer
» Optional heater guard
» Optional integration collar

Technical Data

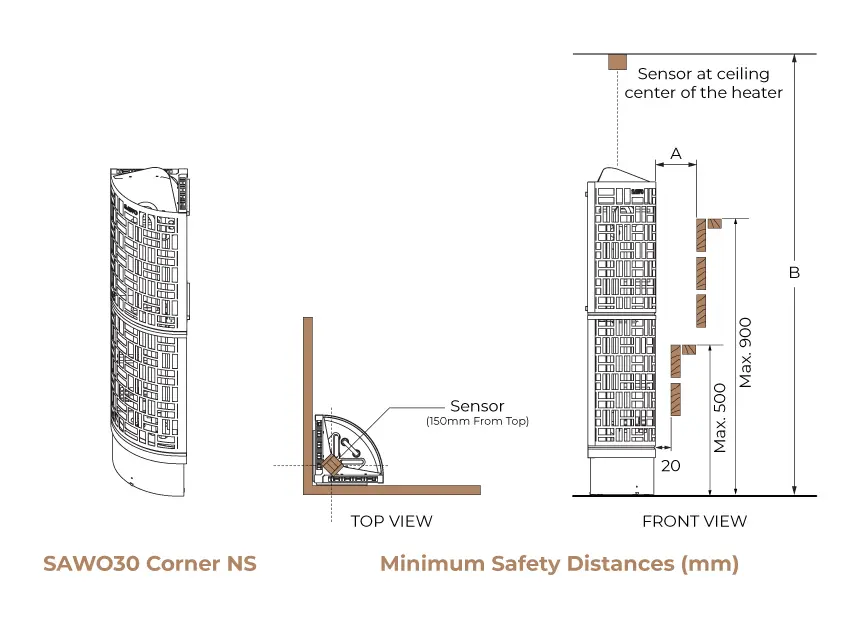

SAWO30 Corner NS sauna heater minimum safety distance diagram for corner installation

Heater ModelkWSauna Room
min. (m3) max.
Size of Heater (mm)
Length Width Height
Stones (kg)
w/o Stone Spacer
Stones (kg)
with Stone Spacer
Minimum Safety Distances
A | B
SW3-45NS-CNR-P-C4.53 – 6300 x 300 x 138070451001900
SW3-60NS-CNR-P-C6.05 – 8300 x 300 x 138070451001900
SW6-90NS-CNR-P-C9.08 – 15415 x 415 x 1380105801001900
SW6-120NS-CNR-P12.011 – 18415 x 415 x 1380105801002100

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

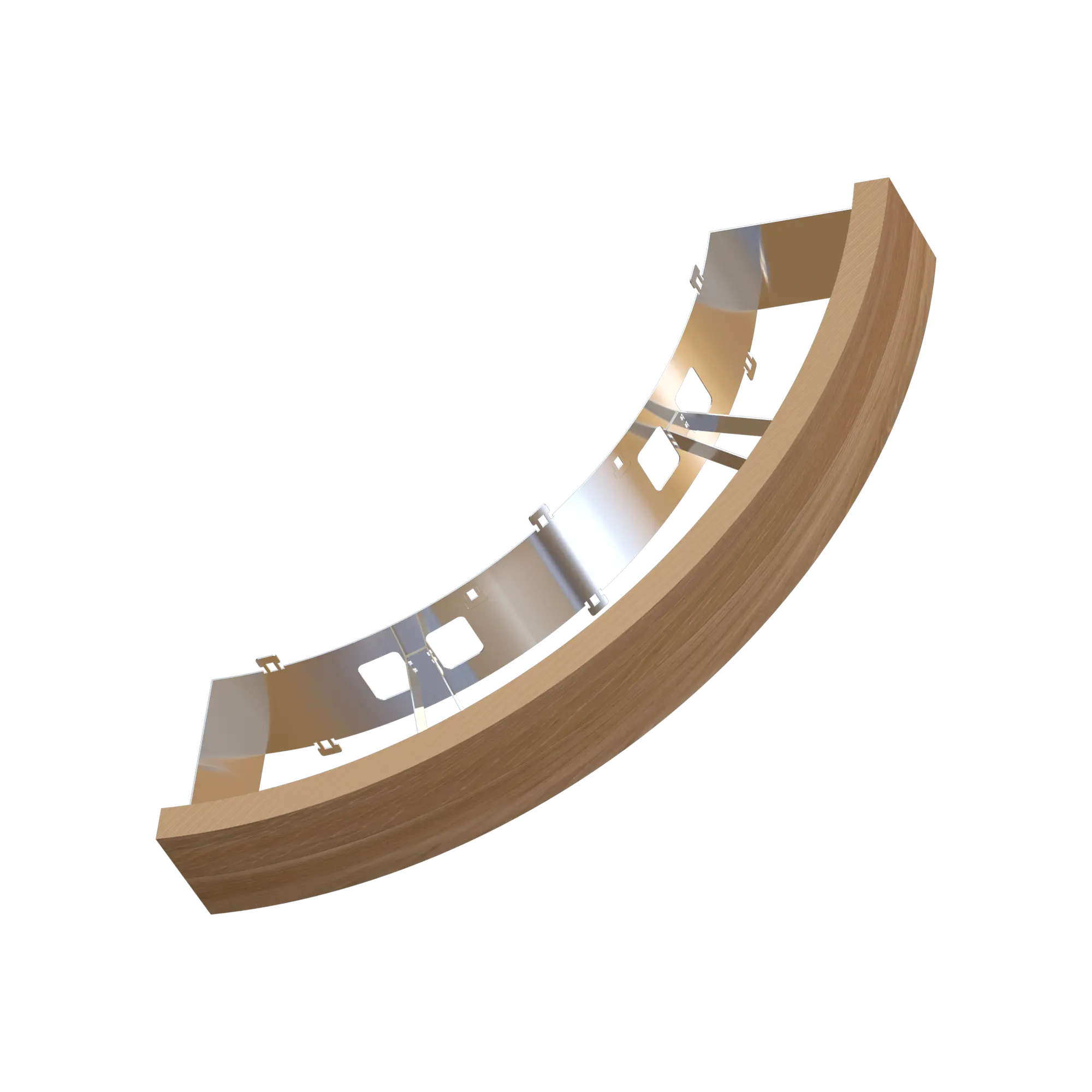

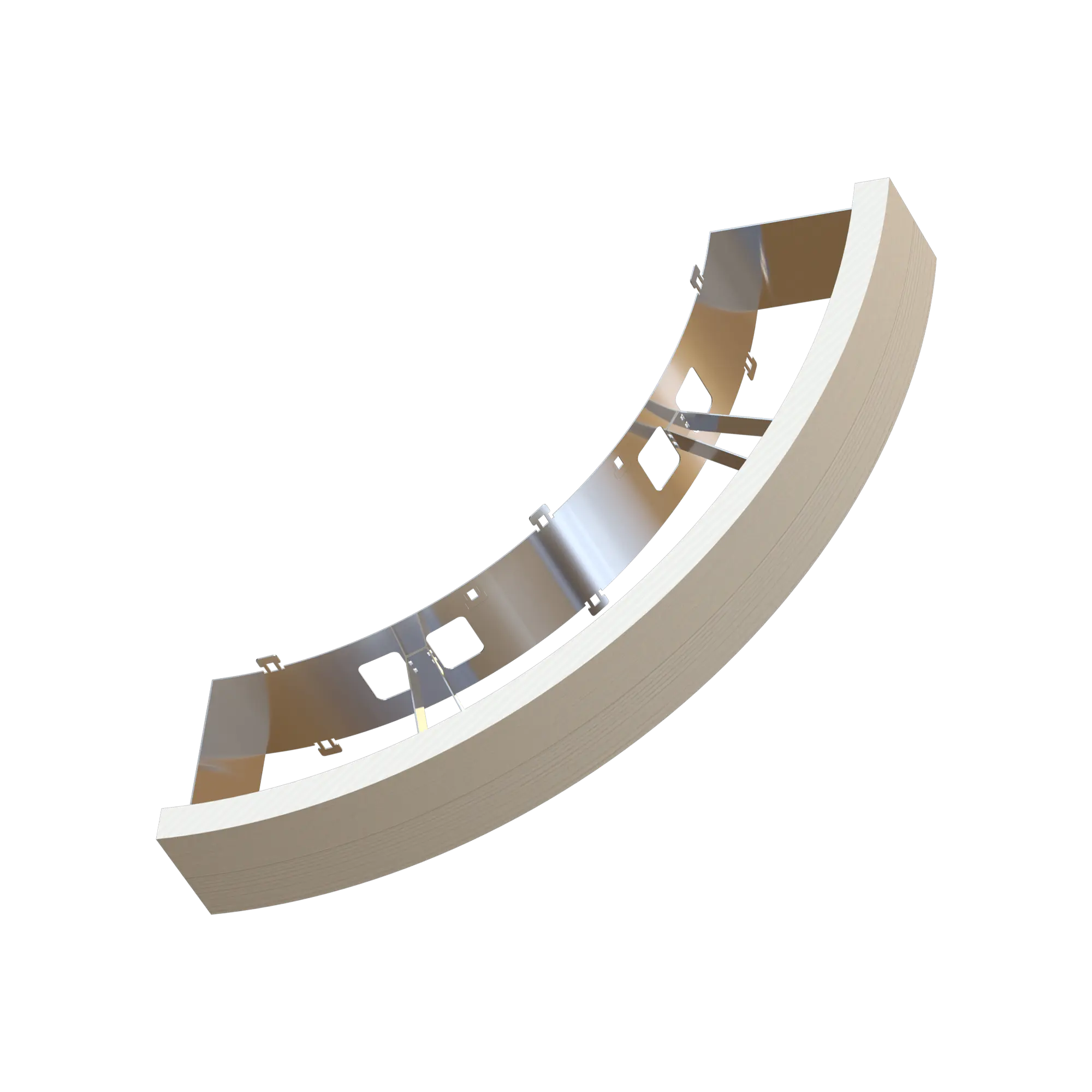

Corner Heater Guard
(Cedar/Aspen)
 Corner Integration Collar
(Cedar/Aspen)
 Corner Integration Collar
(Soapstone)
 Corner Integration Collar
(Stainless Steel)
Sauna Stones
(size: 32kg)
SIMILAR PRODUCTS
  • SAWO30 Corner Black Ni2

    Power Range: 4.5 - 9kW [...]

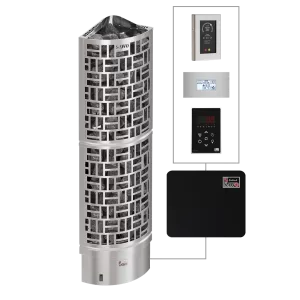

  • SAWO30 Corner NS
