Power rating from 9 – 24kW

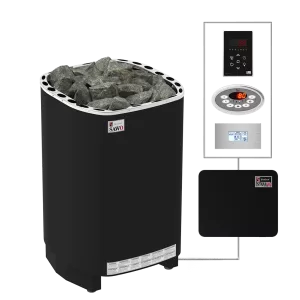

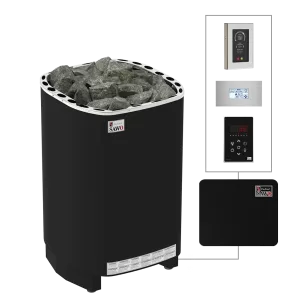

Savonia Fibercoated NS

Savonia models are electric heaters designed to withstand extreme heat with only little care and maintenance. They can handle large amount of stones for more pleasant sauna steam. Savonia heaters are with adjustable leg support that keeps the heater stand leveled on the floor. Suitable for especially for commercial saunas. Perfect especially for medium to large sized saunas to (8m³ – 42m³).

Available with cool-to-touch fiber coating.

» Power range 9.0 – 24.0kW
» Control: Separate
» Sauna Experience: Medium heat, with mild steam

Inquire

Specifications

Technical Data

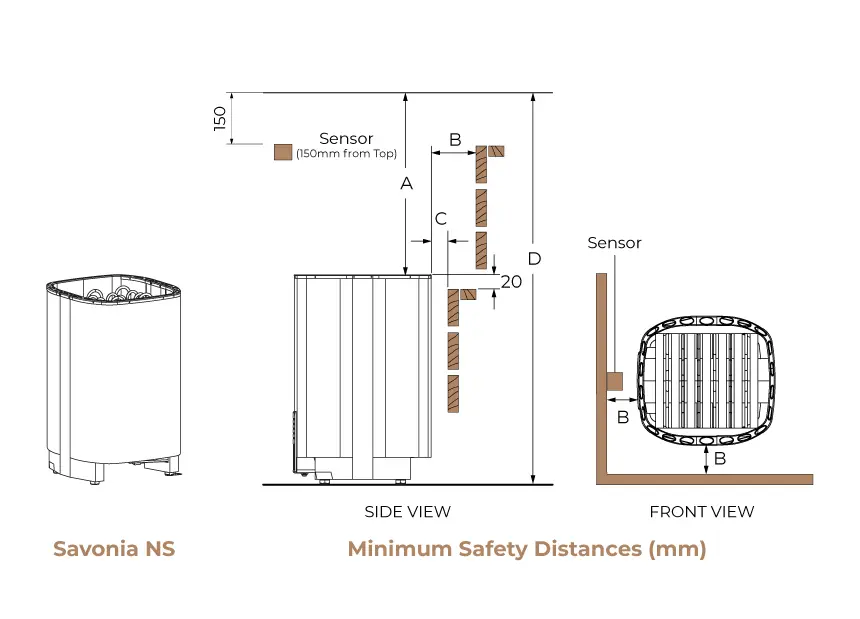

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg)	Minimum Safety Distances A \| B \| C \| D \| E
SAV-90NS-P-F	9.0	8 – 14	440 x 410 x 650	50	1200	110	50	1900
SAV-105NS-P-F	10.5	9 – 15	440 x 410 x 650	50	1200	120	60	1900
SAV-120NS-P-F	12.0	10 – 18	440 x 410 x 650	50	1400	130	70	210
SAV-150NS-P-F	15.0	13 – 23	585 x 415 x 655	75	1400	160	100	2100
SAV-180NS-P-F	18.0	17 – 29	585 x 415 x 655	75	1400	160	100	2100
SAV-180NS-V12-P-F	18.0	18 – 30	740 x 410 x 650	100	1400	160	100	2100
SAV-210NS-V12-P-F	21.0	22 – 35	740 x 410 x 650	100	1400	160	100	2100
SAV-240NS-V12-P-F	24.0	26 – 42	740 x 410 x 650	100	1400	160	100	2100
