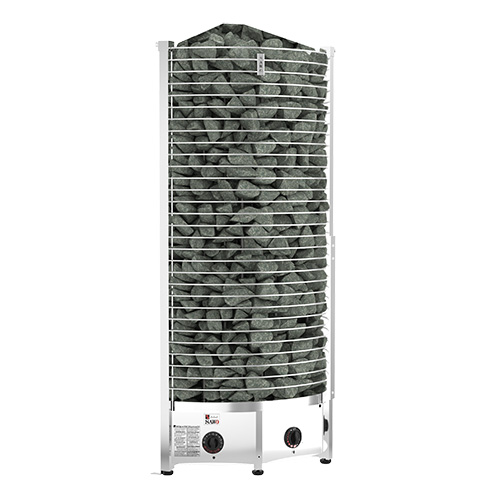

Tower Corner will maximize the free space in your sauna room as it is placed in corner. Design of the heater allows more flexibility with sauna room designing especially when available space is limited.

Tower Corner is available with built-in, separate or integrated (Ni models) Innova control unit.

Power rating is from 3 kW up to 12 kW.

Tower heaters are with heating element spacer that makes heating-up faster as it improves the air circulation inside the heater and prolongs the life of the heating elements. Watch video

Tower Series:

Optional Collars and Guard Rails

Corner Wooden Guard Rail
Corner Wooden Guard RailHeater Guard Rail
Corner Integration Collar
Corner Integration Collar(Wooden)
Corner Integration Collar
Corner Integration Collar (Soapstone)
Corner Integration Collar
Corner Integration Collar (Stainless)

Technical Data

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stones (kG)
w/o Stone Spacer
Stones (kG)
with Stone Spacer
TH2-30NB-CNR 3 2 – 4 8+4h 300 – 300 – 1380 70 45
TH3-35NB-CNR 3,5 3 – 6 8+4h 300 – 300 – 1380 70 45
TH3-45NB-CNR 6 3 – 6 8+4h 300 – 300 – 1380 70 45
TH3-60NB-CNR 6 5 – 8 8+4h 300 – 300 – 1380 70 45
TH2-30NS-CNR 3 2 – 4 separate 300 – 300 – 1380 70 45
TH3-35NS-CNR 3,5 3 – 6 separate 300 – 300 – 1380 70 45
TH3-45NS-CNR 4,5 3 – 6 separate 300 – 300 – 1380 70 45
TH3-60NS-CNR 6 5 – 8 separate 300 – 300 – 1380 70 45
TH4-60NB-CNR 6 5 – 9 8+4h 355 – 355 – 1380 105 70
TH4-60NS-CNR 6 5 – 9 separate 355 – 355 – 1380 105 70
TH5-80NS-CNR 8 7 – 13 separate 355 – 355 – 1380 105 70
TH5-80NB-CNR 8 7 – 13 8+4h 355 – 355 – 1380 105 70
TH5-90NS-CNR 9 8 – 14 separate 355 – 355 – 1380 105 70
TH6-80NB-CNR 8 7 – 14 8+4h 415 – 415 – 1380 160 80
TH6-90NB-CNR 9 8 – 15 8+4h 415 – 415 – 1380 160 80
TH6-80NS-CNR 8 7 – 14 separate 415 – 415 – 1380 160 80
TH6-90NS-CNR 9 8 – 15 separate 415 – 415 – 1380 160 80
TH6-105NS-CNR 10,5 9 – 16 separate 415 – 415 – 1380 160 80
TH6-120NS-CNR 12 11 – 18 separate 415 – 415 – 1380 160 80

Ni Version (Built-In Innova Controller)

Compatible controls are: Stainless Steel Touch, Innova Touch, Classic and Classic 2.0

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stones (kG)
w/o Stone Spacer
Stones (kG)
with Stone Spacer
TH6-105Ni-CNR 10,5 9 – 16 innova 415 – 415 – 1380 160 80
TH6-120Ni-CNR 12 11 – 18 innova 415 – 415 – 1380 160 80

Ni2 Heaters (Built-In Saunova 2.0 Controller)

Compatible control: Saunova 2.0

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stones (kG)
w/o Stone Spacer
Stones (kG)
with Stone Spacer
TH2-30Ni2-CNR 3 2 – 4 Saunova 2.0 300 – 300 – 1380 70 45
TH3-35Ni2-CNR 3,5 3 – 6 Saunova 2.0 300 – 300 – 1380 70 45
TH3-45Ni2-CNR 4,5 3 – 6 Saunova 2.0 300 – 300 – 1380 70 45
TH3-60Ni2-CNR 6 5 – 8 Saunova 2.0 300 – 300 – 1380 70 45
TH4-60Ni2-CNR 6 5 – 9 Saunova 2.0 355 – 355 – 1380 105 70
TH5-80Ni2-CNR 8 7 – 13 Saunova 2.0 355 – 355 – 1380 105 70
TH5-90Ni2-CNR 9 8 – 14 Saunova 2.0 355 – 355 – 1380 105 70
TH6-80Ni2-CNR 8 7 – 14 Saunova 2.0 415 – 415 – 1380 160 80
TH6-90Ni2-CNR 9 8 – 15 Saunova 2.0 415 – 415 – 1380 160 80
