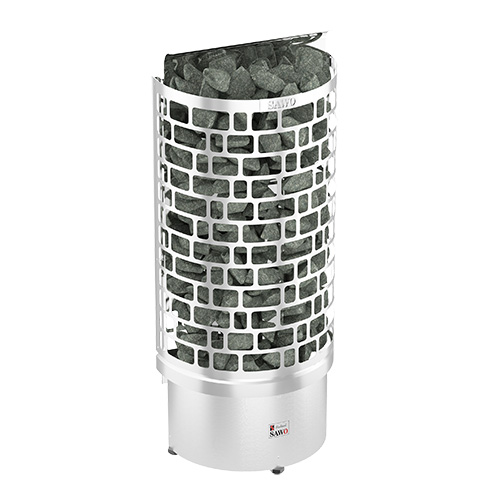

Wall Aries heater is best for narrow benches as it can lean on the sides of the wall. These heaters suit well if you plan to upgrade your old wall mounted heaters.

The wide and tall body of wall tower heaters will perfectly cover the markings on the wall made from your previous heater. One of the advantage of Aries built-in heater is that the thermostat and the timer controls can switch sides! The access of the controls is much more flexible.

Tower Series:

Collars and Guards

Wall Wooden Heater
Wall Wooden HeaterHeater Guard Rail
Wall Integration Collar
Wall Integration Collar(Wooden)
Wall Integration Collar
Wall Integration Collar (Soapstone)
Wall Integration Collar
Wall Integration Collar (Stainless)

Technical Data

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stone
(kG)
ARI3-45NB-WL 4,5 3 – 6 8+4h 415 – 250 – 1030 65
ARI3-60NB-WL 6 5 – 8 8+4h 415 – 250 – 1030 65
ARI3-75NB-WL 7,5 7 – 13 8+4h 415 – 250 – 1030 65
ARI3-90NB-WL 9 8 – 14 8+4h 415 – 250 – 1030 65
ARI3-45NS-WL 4,5 3 – 6 separate 415 – 250 – 1030 65
ARI3-60NS-WL 6 5 – 8 separate 415 – 250 – 1030 65
ARI3-75NS-WL 7,5 7 – 13 separate 415 – 250 – 1030 65
ARI3-90NS-WL 9 8 – 14 separate 415 – 250 – 1030 65

Compatible control: Saunova 2.0

Heater Model KW Sauna Room
min (m3) max
Control Size of heater (mm)
WIDTH DEPTH HEIGHT
Stone
(kG)
ARI3-45Ni2-WL 4,5 3 – 6 Saunova 2.0 415 – 250 – 1030 65
ARI3-60Ni2-WL 6 5 – 8 Saunova 2.0 415 – 250 – 1030 65
ARI3-75Ni2-WL 7,5 7 – 13 Saunova 2.0 415 – 250 – 1030 65
ARI3-90Ni2-WL 9 8 – 14 Saunova 2.0 415 – 250 – 1030 65
