Power Range: 9 – 24kW

Nimbus NS

The Nimbus is the only SAWO heater with an all-soapstone casing. With this material, heating the sauna stones can take a bit longer to heat, but once heat has been generated, the soapstone casing helps maintain the heat, enabling the heater release warm and humid steam for hours. It’s a great heater for long, leisurely sauna sessions. The Nimbus is compatible with the Saunova and Innova controls (NS) and is available in Combi.

» Power range: 9.0 – 24.0kW

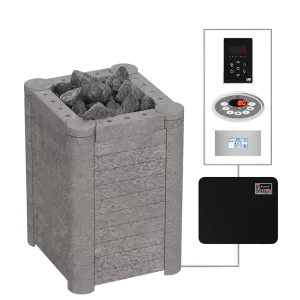

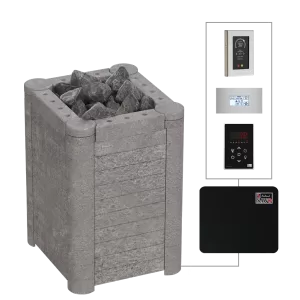

» Available controls: Saunova/Innova (NS)

Inquire

Specifications

Technical Data

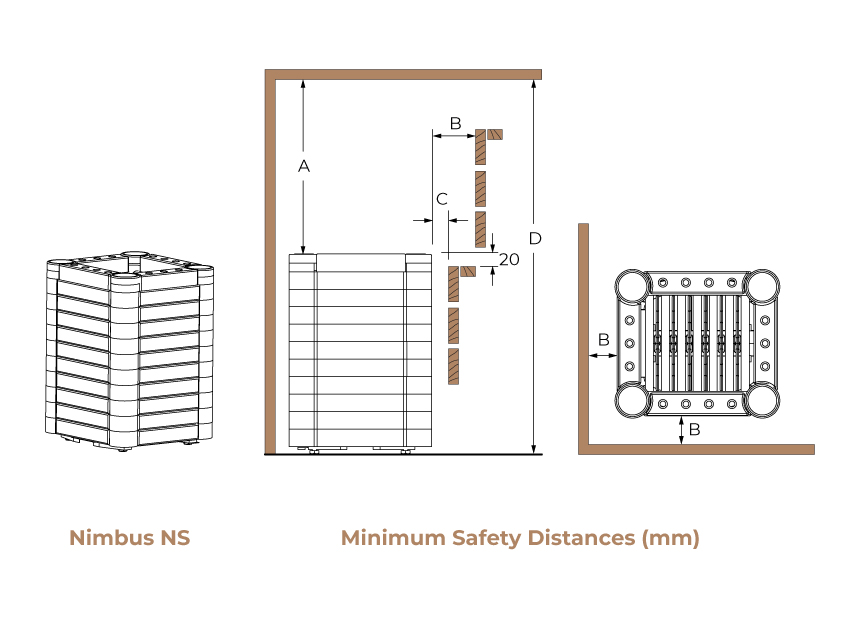

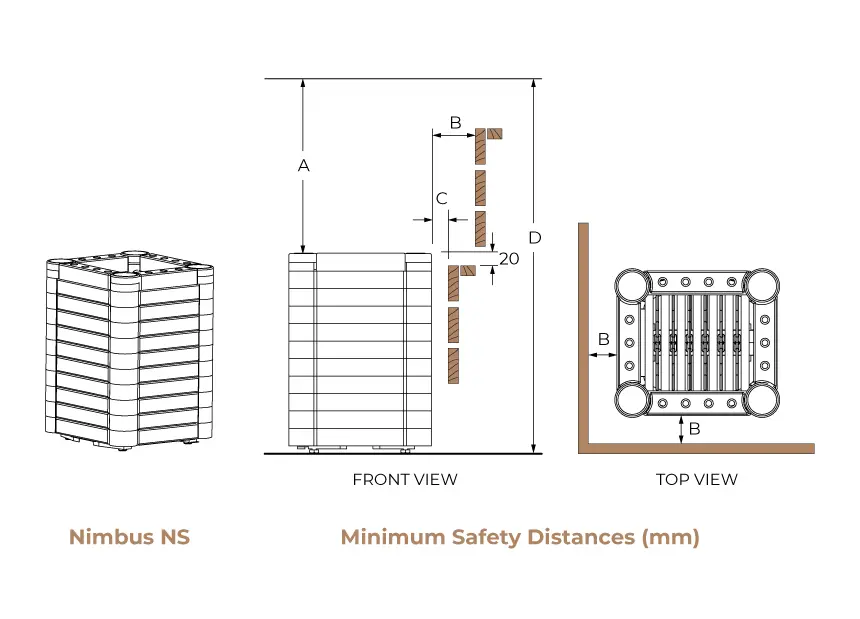

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg)	Minimum Safety Distances A \| B \| C \| D
NIM-90NS-P	9.0	8 – 14	520 x 470 x 690	40 – 50	1200	110	50	1900
NIM-105NS-P	10.5	9 – 15	520 x 470 x 690	40 – 50	1200	120	60	1900
NIM-120NS-P	12.0	10 – 18	520 x 470 x 690	40 – 50	1400	130	70	2100
NIM-150NS-P	15.0	13 – 23	660 x 470 x 690	60 – 75	1400	160	100	2100
NIM-180NS-P	18.0	17 – 29	660 x 470 x 690	60 – 75	1400	160	100	2100
NIM-180NS-V12-P	18.0	18 – 30	820 x 470 x 690	80 – 100	1400	160	100	2100
NIM-210NS-V12-P	21.0	22 – 35	820 x 470 x 690	80 – 100	1400	160	100	2100
NIM-240NS-V12-P	24.0	26 – 42	820 x 470 x 690	80 – 100	1400	160	100	2100
