Power Range: 3 – 24kW

Heaterking Round NS

The Heaterking Round by Stefan Lindfors delivers king-size heat and style. Its impressive height enables it to hold a large amount of stones, generating consistent, evenly circulated rejuvenating heat. Bathers can enjoy smooth or sharp and dry heat by throwing water onto either the bottom or the top of the pillar. Like all Heaterkings, the Round model’s unique Junglefire-pattern stainless steel casing imbues any sauna room with bold elegance.

» Power range: 3.0 – 24.0kW

» Available controls: Innova (Ni)
» Stainless steel with intricate Junglefire pattern

» Stone spacer to prolong the life span of the heating elements

» Stone capacity: 60kg to 360kg

» Optional heater guard

Inquire

Specifications

Technical Data

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg) w/o Stone Spacer	Stones (kg) with Stone Spacer	Minimum Safety Distances A \| B
DRFT2-30NS-P	3.0	2 – 4	250 x 250 x 1325	70	60	150	1900
DRFT3-35NS-P-C	3.5	3 – 6	250 x 250 x 1325	70	60	100	1900
DRFT3-45NS-P-C	4.5	3 – 6	250 x 250 x 1325	70	60	100	1900
DRFT3-60NS-P-C	6.0	5 – 8	250 x 250 x 1325	70	60	150	1900
DRFT4-60NS-P-C	6.0	5 – 9	295 x 295 x 1325	105	90	100	1900
DRFT5-80NS-P-C	8.0	7 – 13	295 x 295 x 1325	105	90	200	1900
DRFT5-90NS-P-C	9.0	8 – 14	295 x 295 x 1325	105	90	200	1900
DRFT6-80NS-P-C	8.0	7 – 14	355 x 355 x 1325	160	100	100	1900
DRFT6-90NS-P-C	9.0	8 – 15	355 x 355 x 1325	160	100	100	1900
DRFT6-105NS-P	10.5	9 – 16	355 x 355 x 1325	160	100	150	1900
DRFT6-120NS-P	12.0	11 – 18	355 x 355 x 1325	160	100	200	2100
DRFT9-105NS-P	10.5	10 – 16	425 x 425 x 1325	230	165	150	2100
DRFT9-120NS-P	12.0	11 – 20	425 x 425 x 1325	230	165	150	2100
DRFT9-150NS-P	15.0	14 – 25	425 x 425 x 1325	230	165	200	2100
DRFT9-180NS-P	18,0	18 – 28	425 x 425 x 1325	230	165	200	2100
DRFT12-150NS-P	15.0	15 – 26	525 x 525 x 1325	360	220	200	2300
DRFT12-180NS-P	18.0	18 – 30	525 x 525 x 1325	360	220	200	2300
DRFT12-210NS-P	21.0	22 – 35	525 x 525 x 1325	360	220	200	2300
DRFT12-240NS-P	24.0	24 – 40	525 x 525 x 1325	360	220	200	2300

Resources

Heaterking Round NS Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

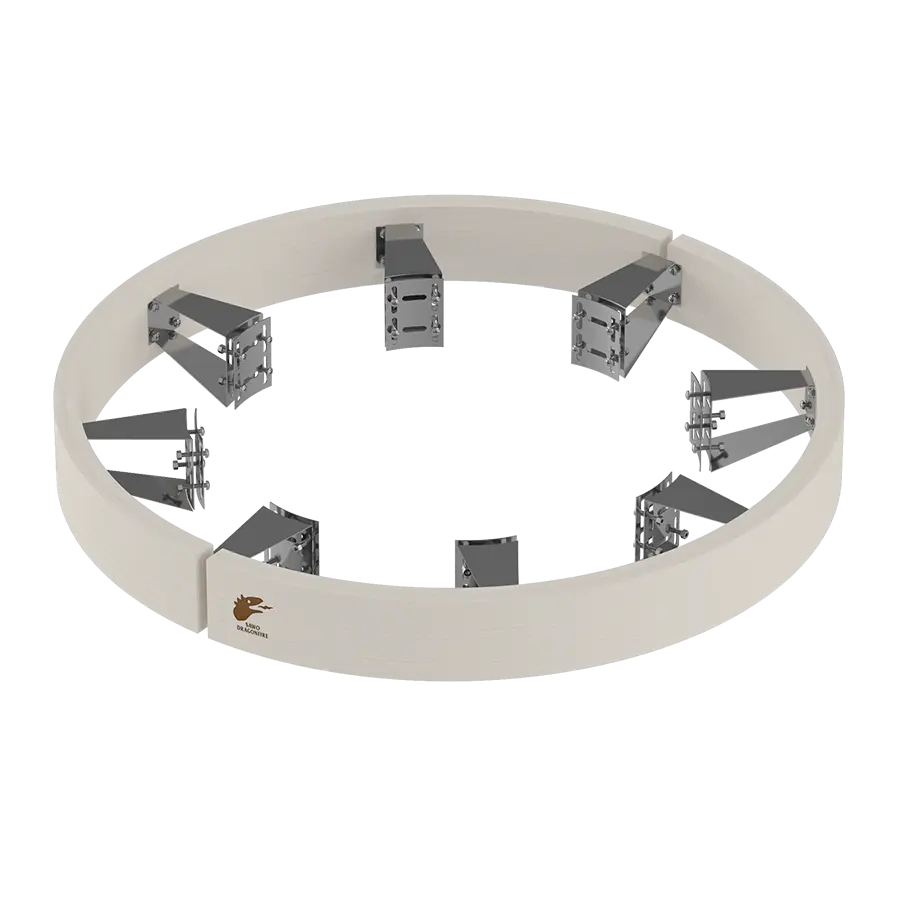

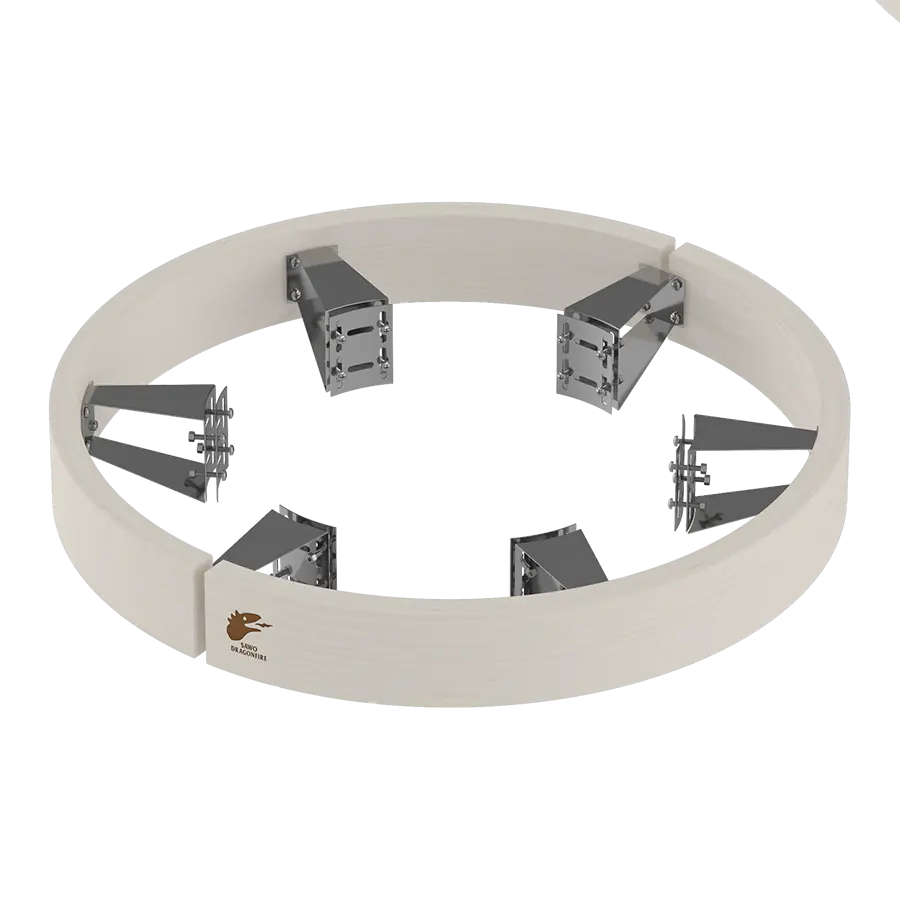

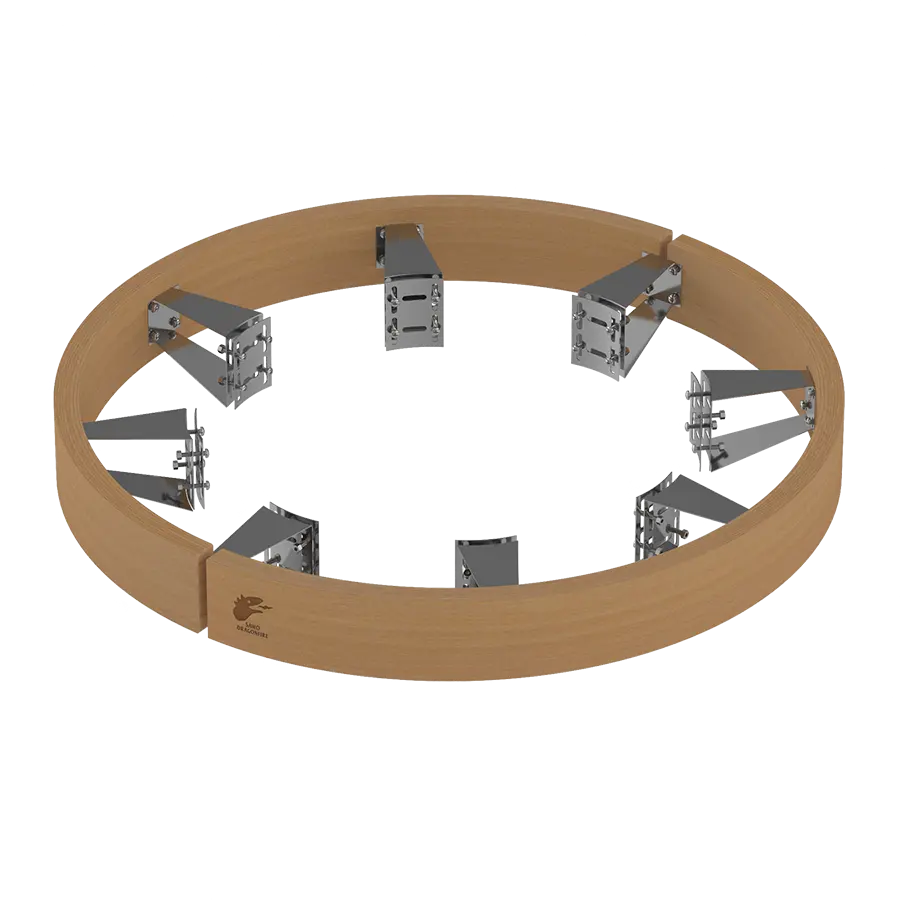

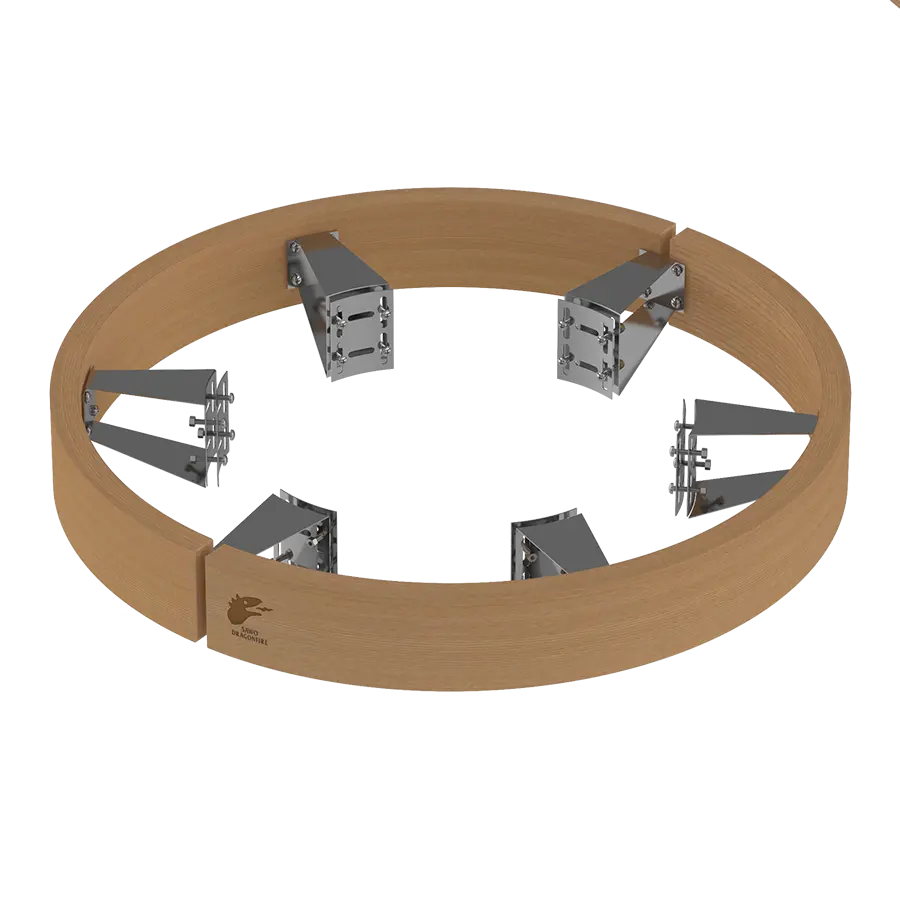

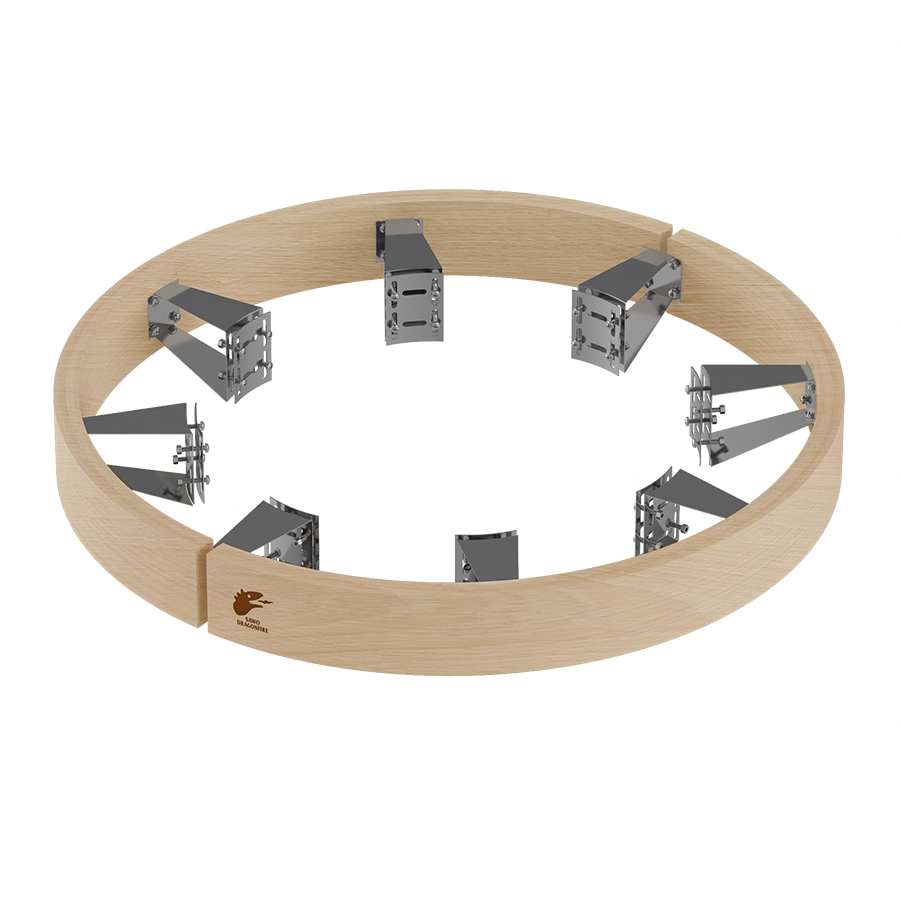

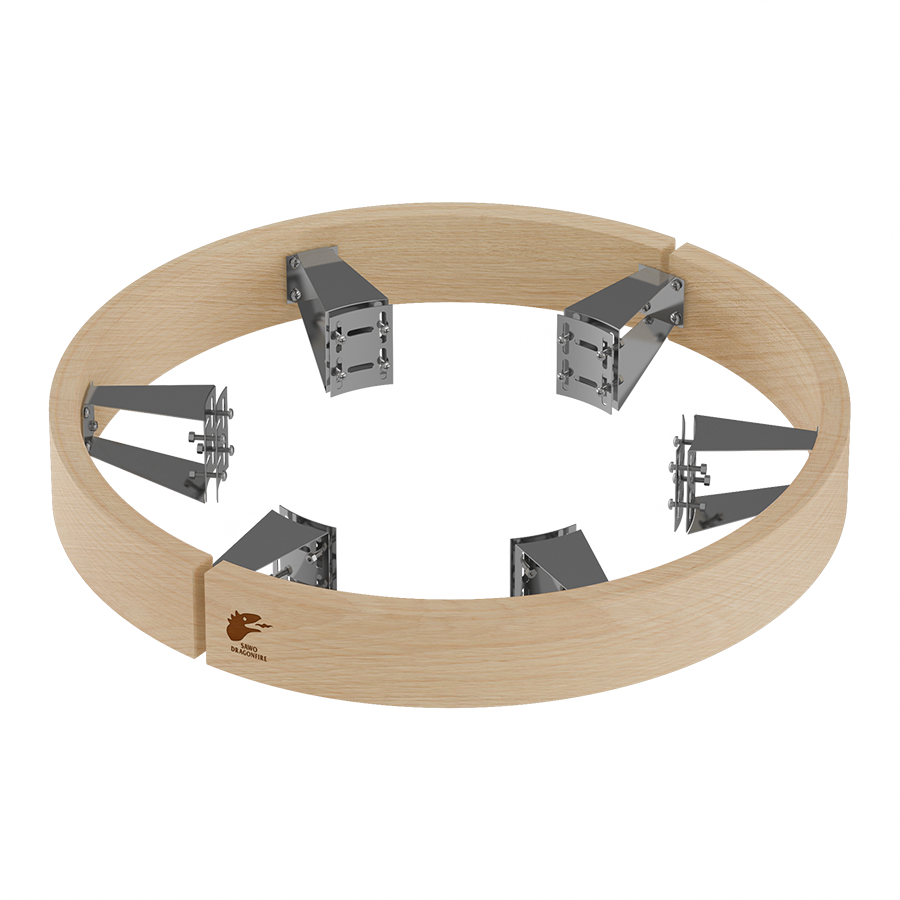

Wooden Heater Guard

(Cedar/Aspen)

Cozy Tank

(Water volume: 0.6L)

Sauna Stones

(Size: 20kg)

Model	Size of Guard Rail (mm)
Model	Width	Depth	Height

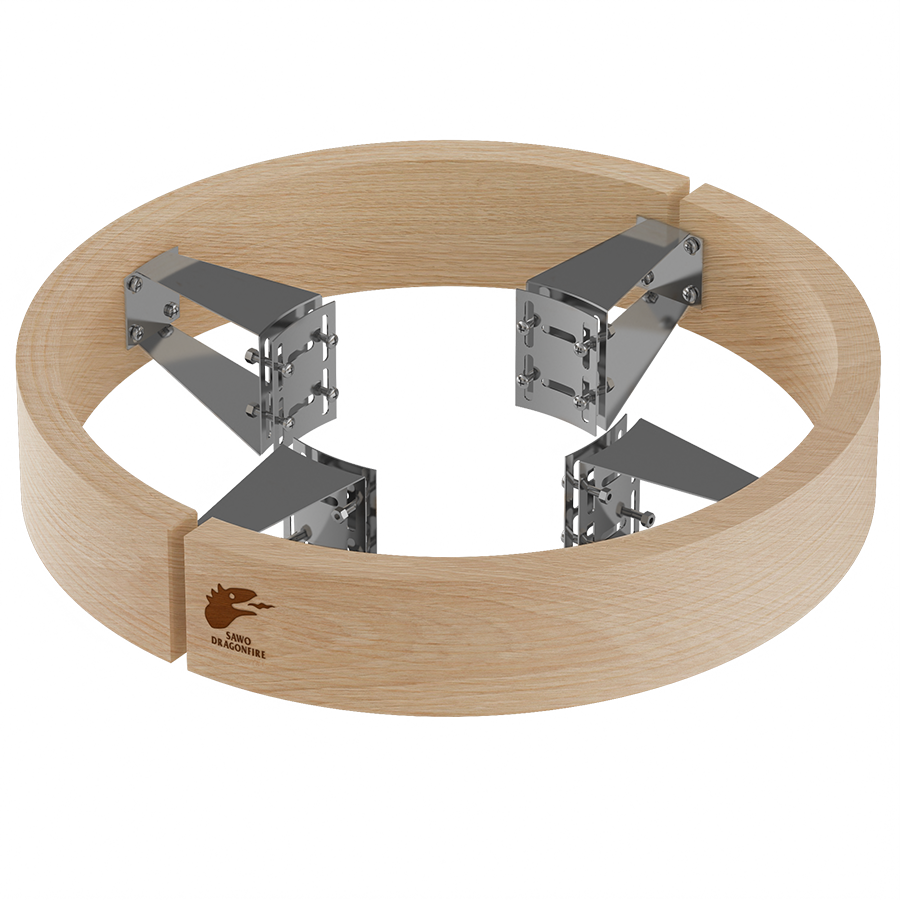

DRFT-W2-D	510	510	105

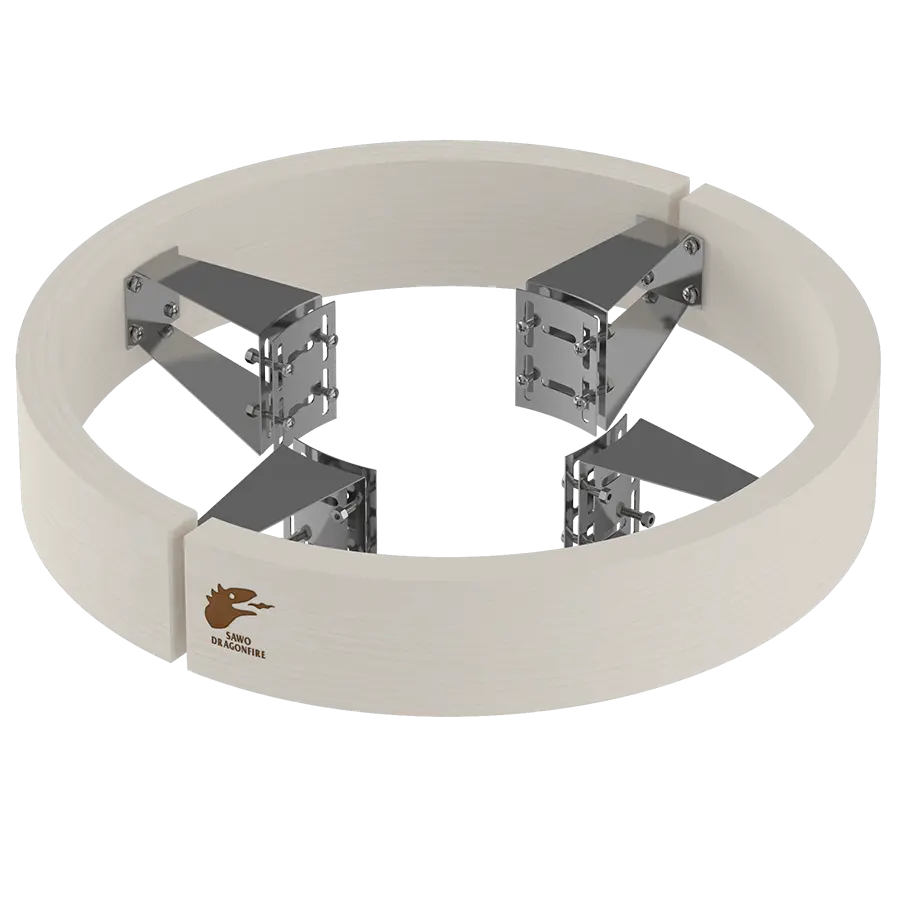

DRFT-W2-A	510	510	105

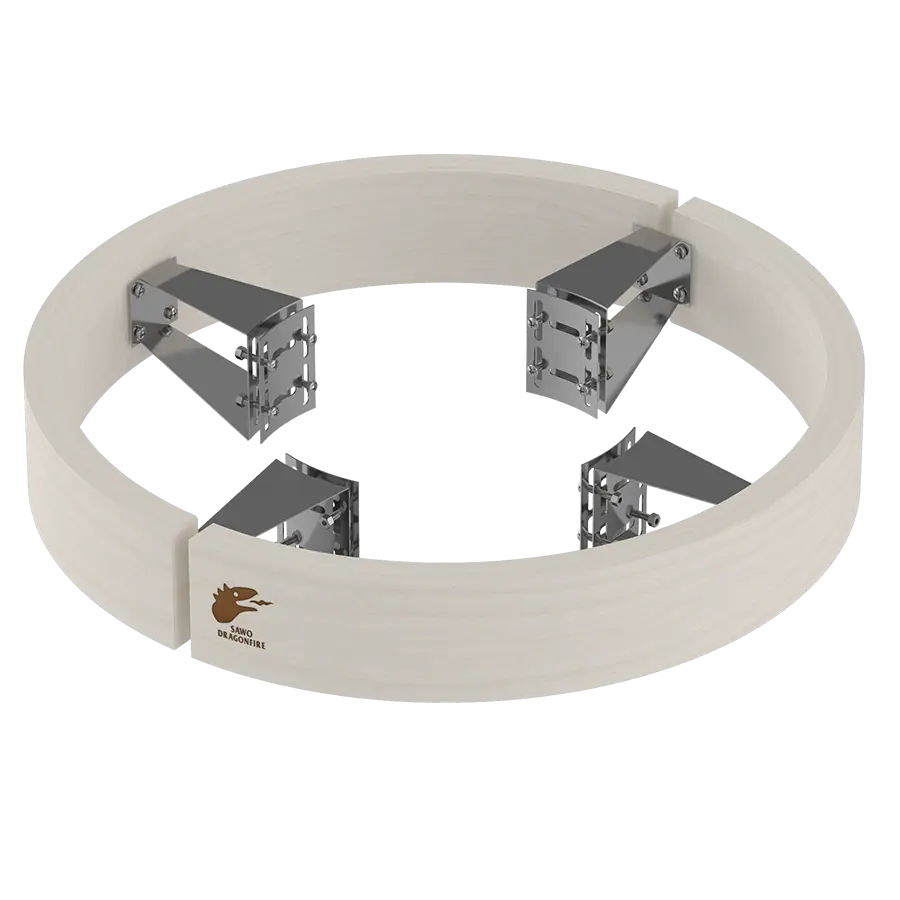

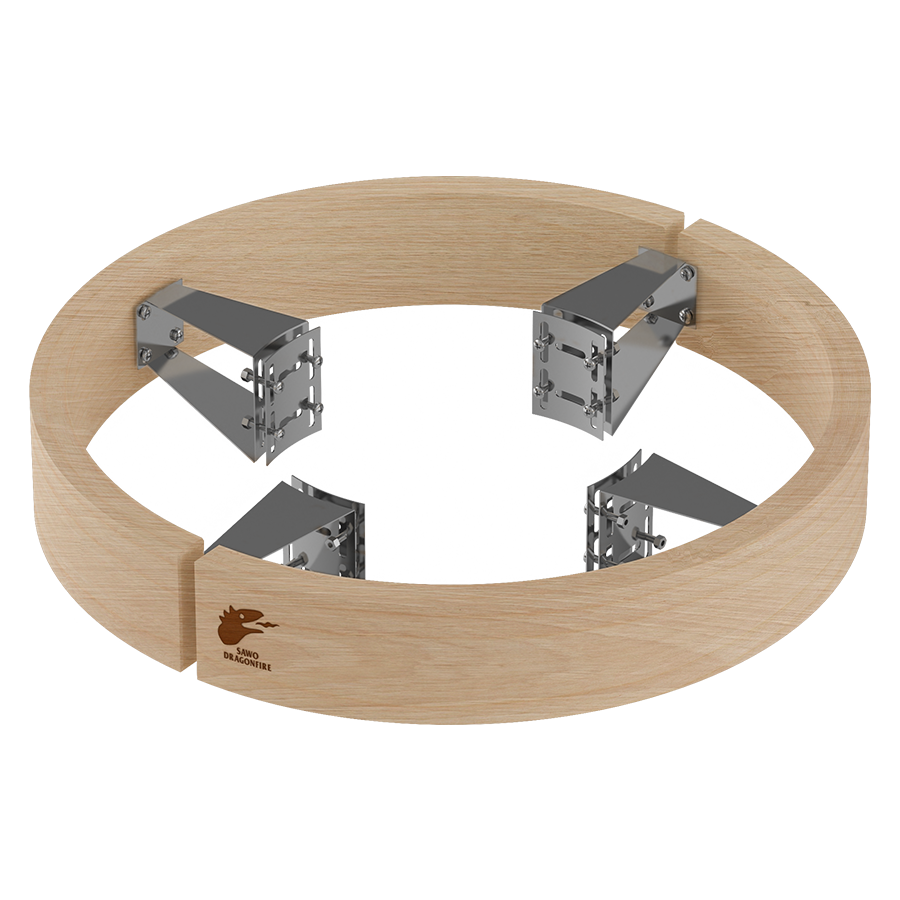

DRFT-W4-D	560	560	105
DRFT-W4-A	560	560	105

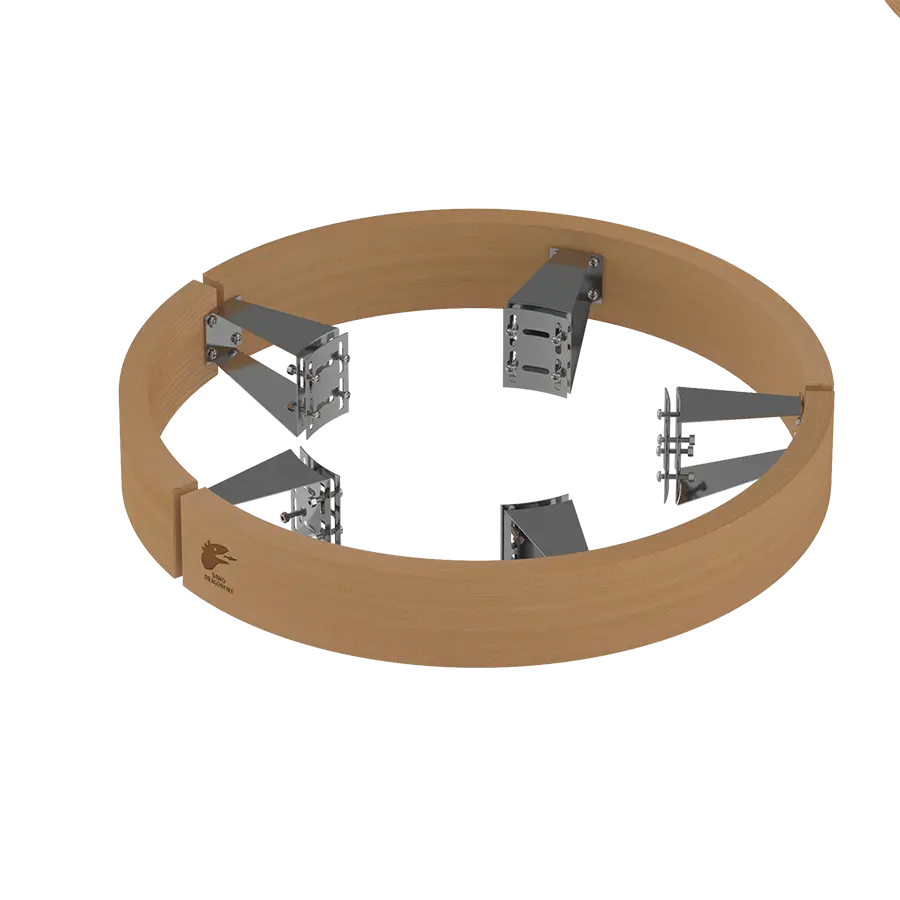

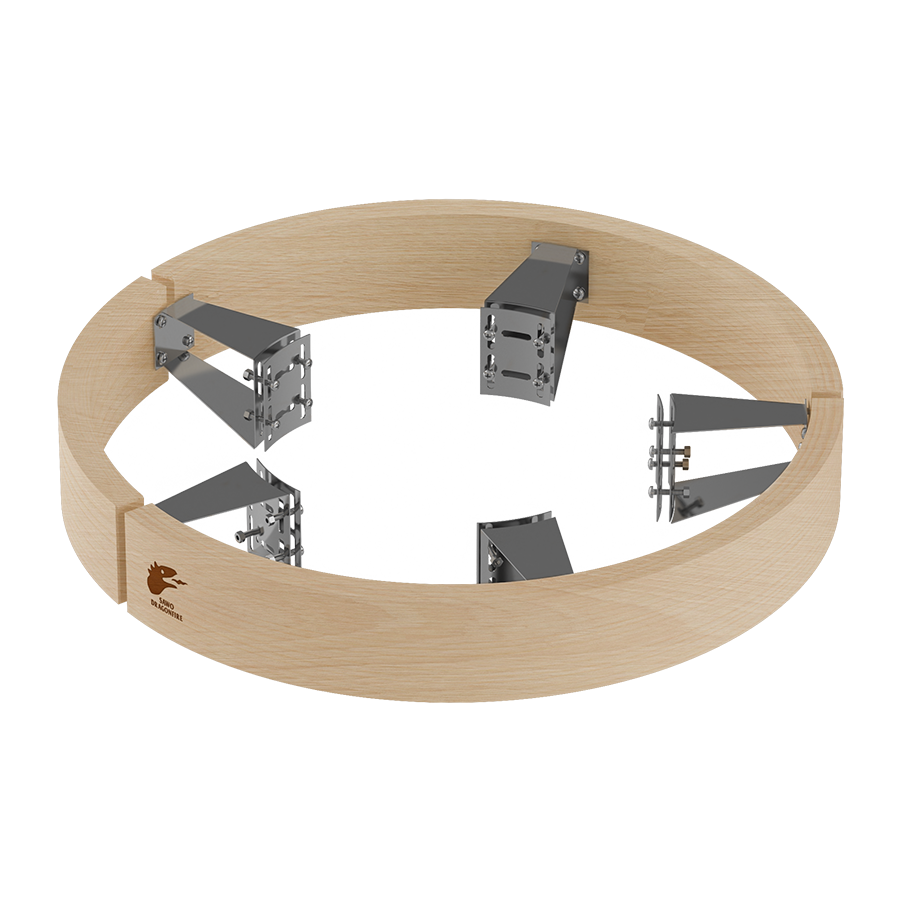

DRFT-W6-D	620	620	105

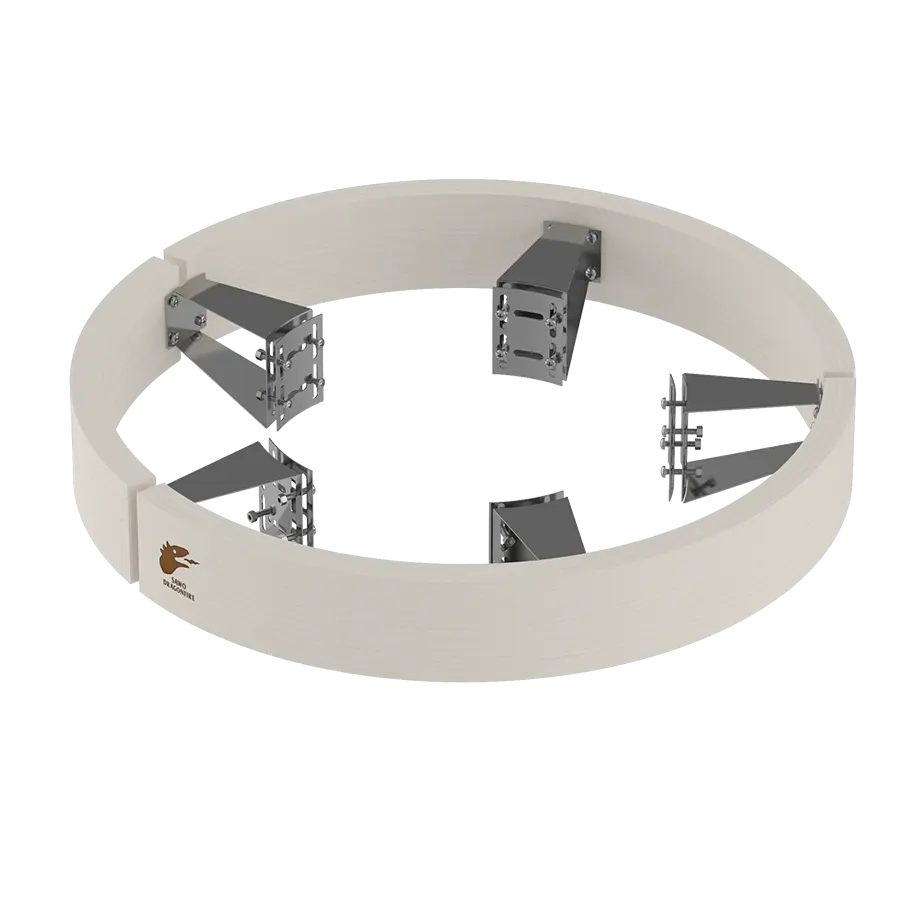

DRFT-W6-A	620	620	105

Heaterking Round NS
