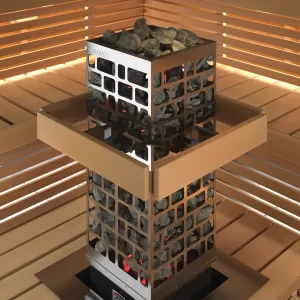

  • Cubos w/ Heaterguard - Tower Series

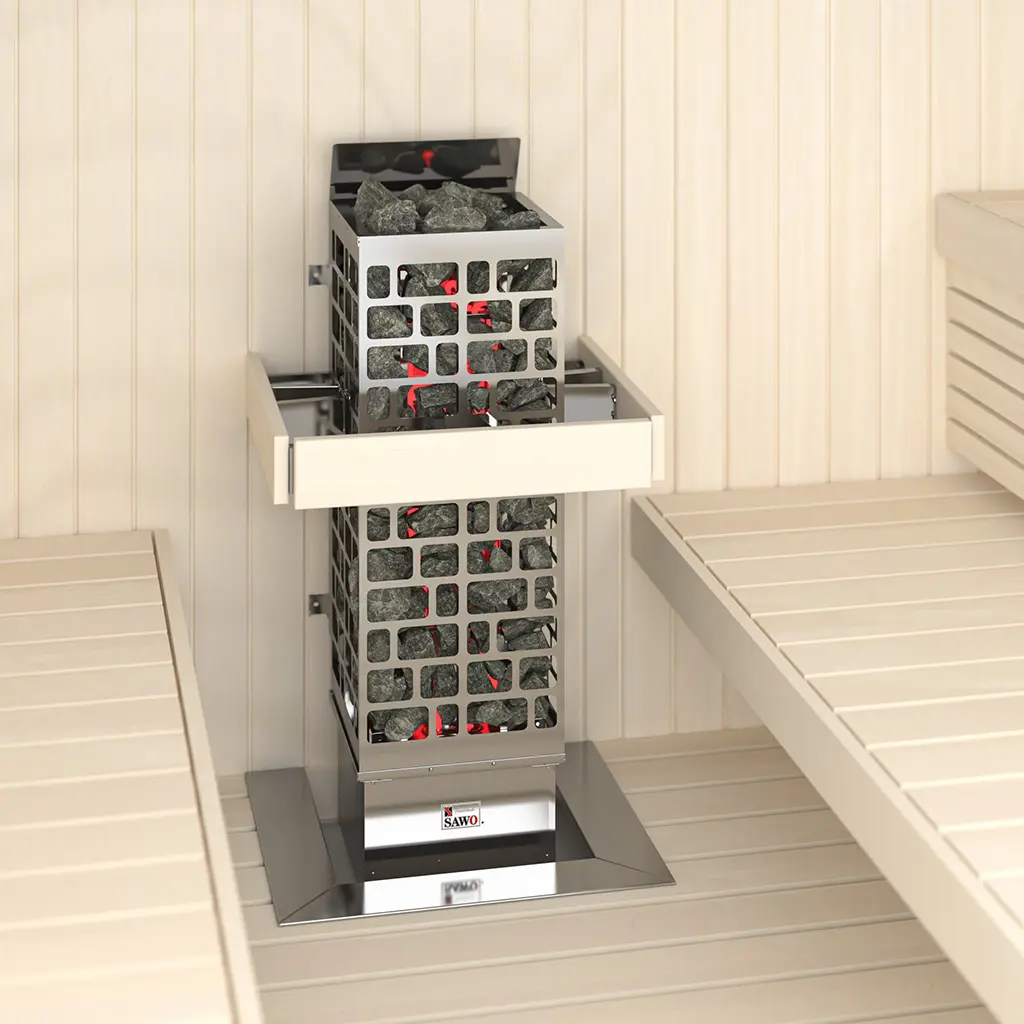

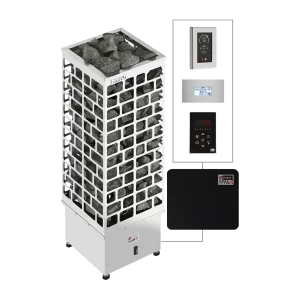

Cubos NS

The Cubos is ideal for limited spaces. It offers 3-in-1 flexibility: One sleek modern design, three placement options—middle, corner, or wall installation. It comes with a protective cover for additional support for wall and corner installations, as well as a reflector that directs heat even to the lowest parts of the sauna room. The Cubos also has a built-in stone spacer, ensuring faster heating time and longer-lasting heating elements.

» Power range: 4.5 – 9.0kW
» Available control: Saunova/Innova (NS)
» Built-in stone spacer
» Adjustable legs
» Stainless steel casing
» Optional heater guard
» Optional integration collar

Technical Data

Heater Model kW Sauna Room
min. (m3) max.
Size of Heater (mm)
Length Width Height
Stones
(kg)

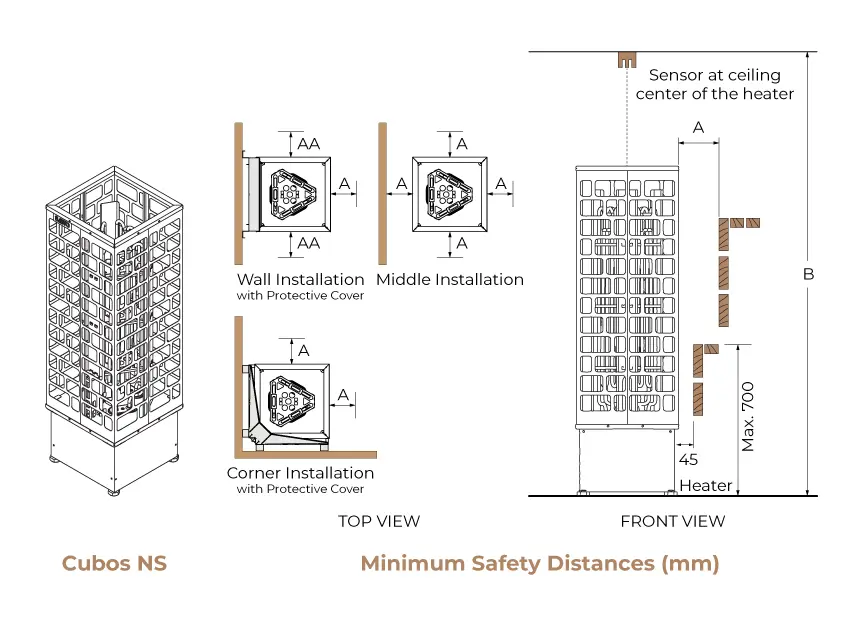

Control Minimum Safety Distances
A | AA | B
CUB3-45NS-P-C 4.5 3 – 6 290 x 290 x 930 75 Separate 100 100 1900
CUB3-60NS-P-C 6.0 5 – 9 290 x 290 x 930 75 Separate 100 100 1900
CUB3-75NS-P-C 7.5 7 – 13 290 x 290 x 930 75 Separate 100 135 1900
CUB3-90NS-P-C 9.0 8 – 14 290 x 290 x 930 75 Separate 125 135 1900

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

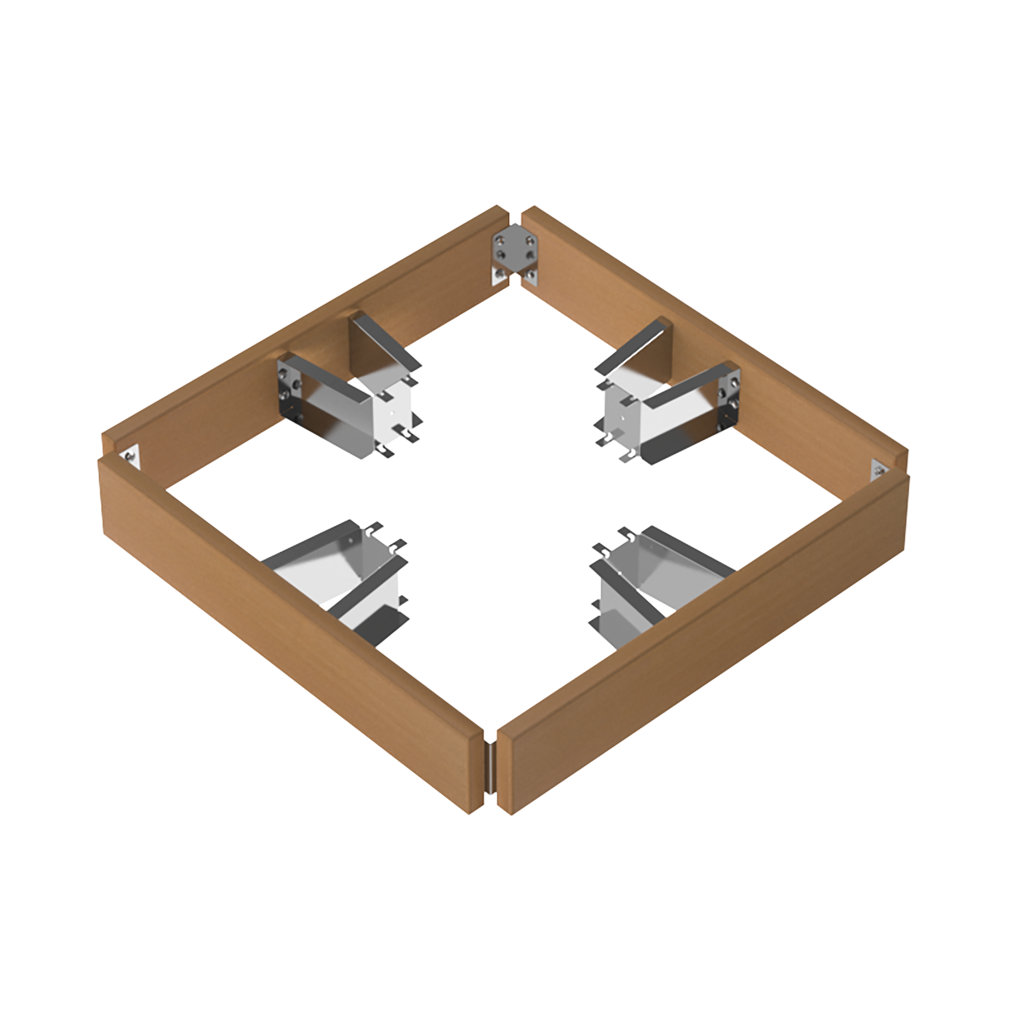

Middle Heater Guard
(Cedar/Aspen)

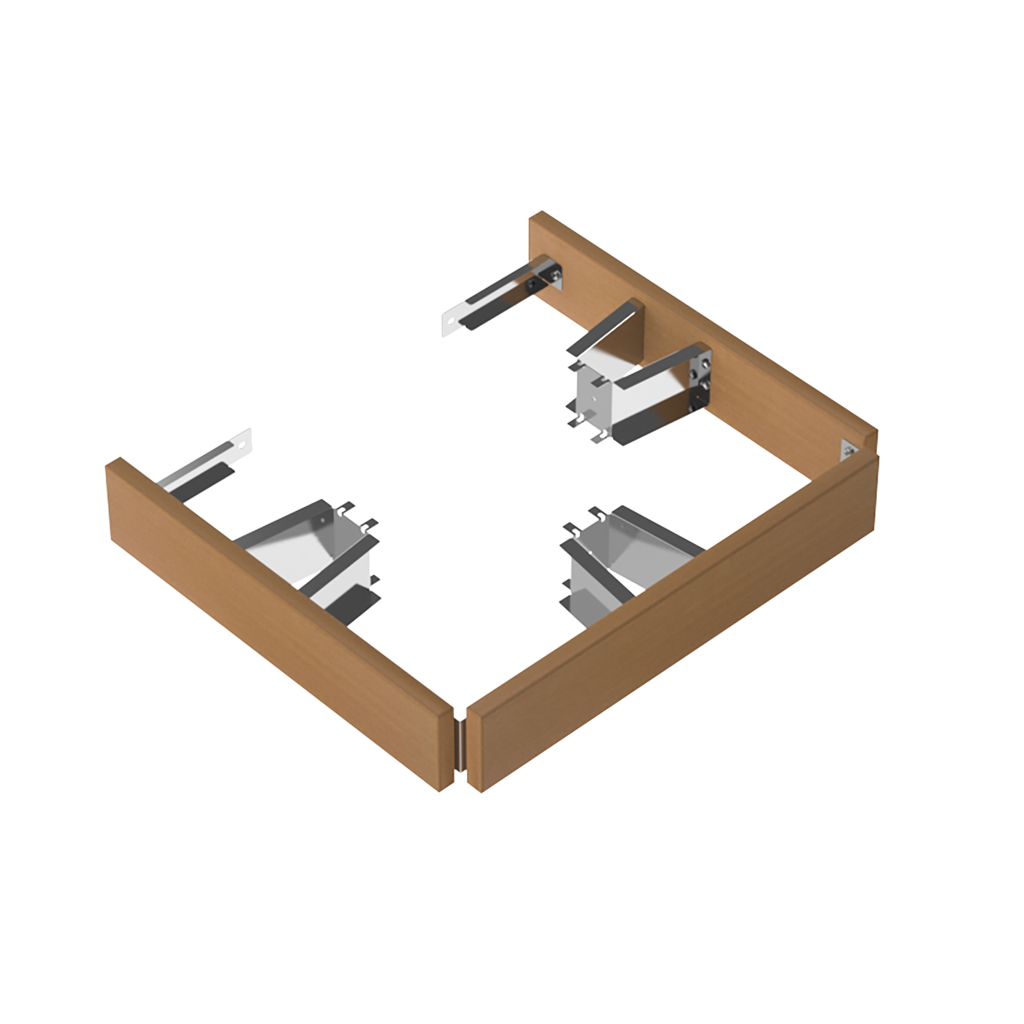

Wall Heater Guard
(Cedar/Aspen)

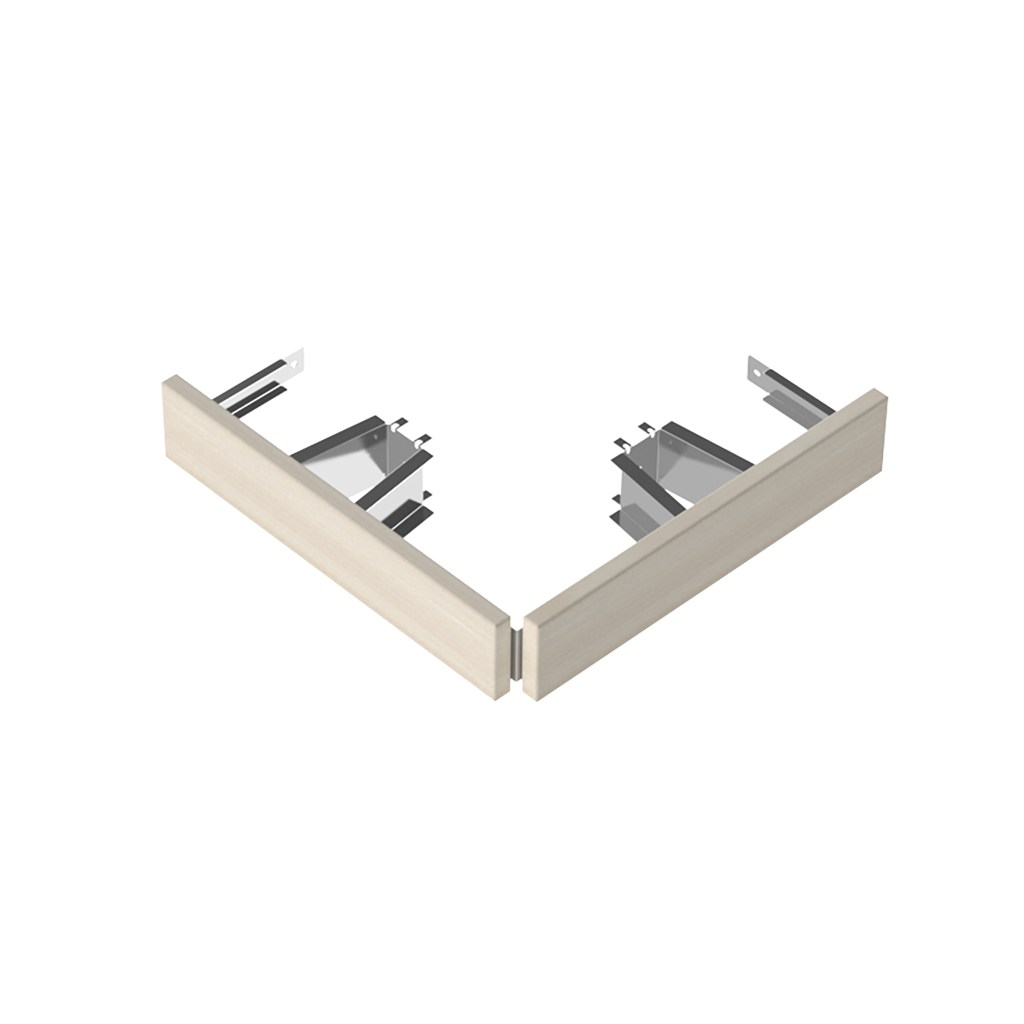

Corner Heater Guard
(Cedar/Aspen)
Middle Integration Collar
(Cedar/Aspen)

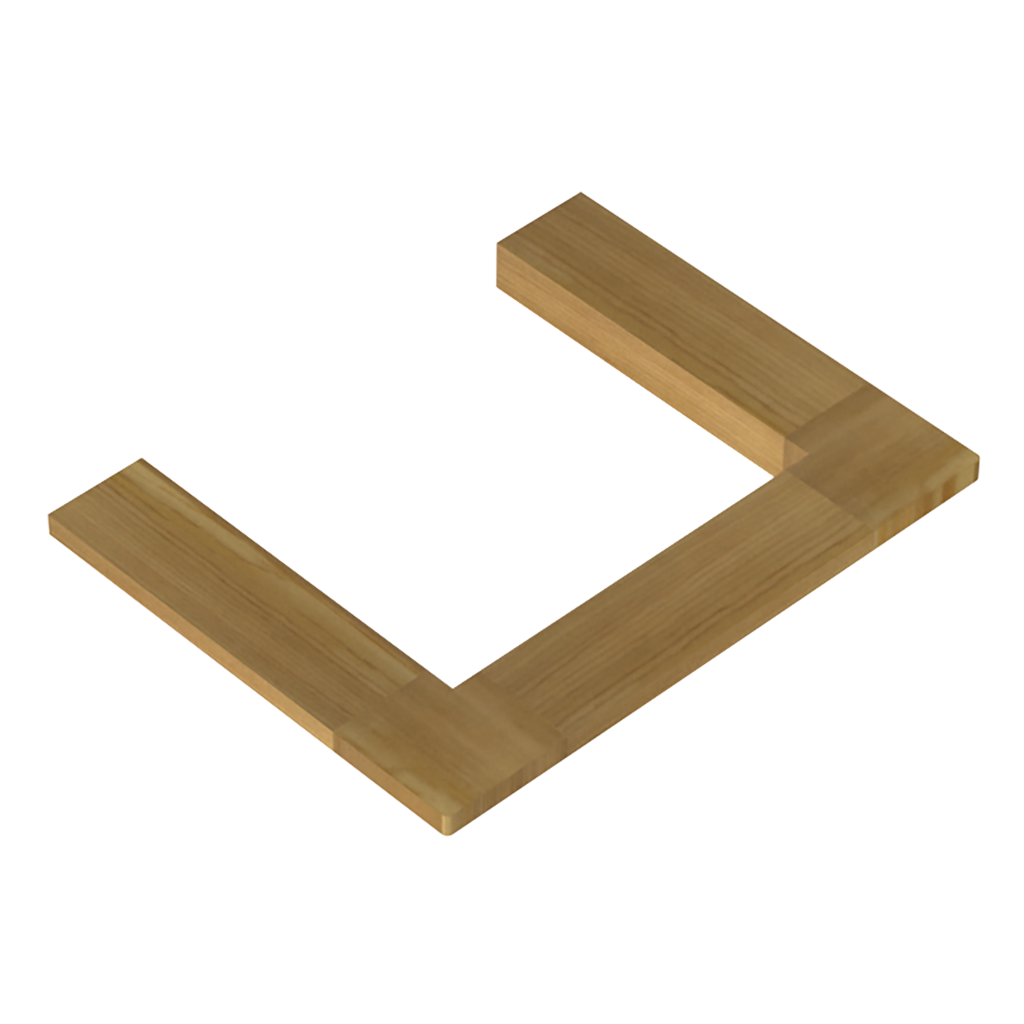

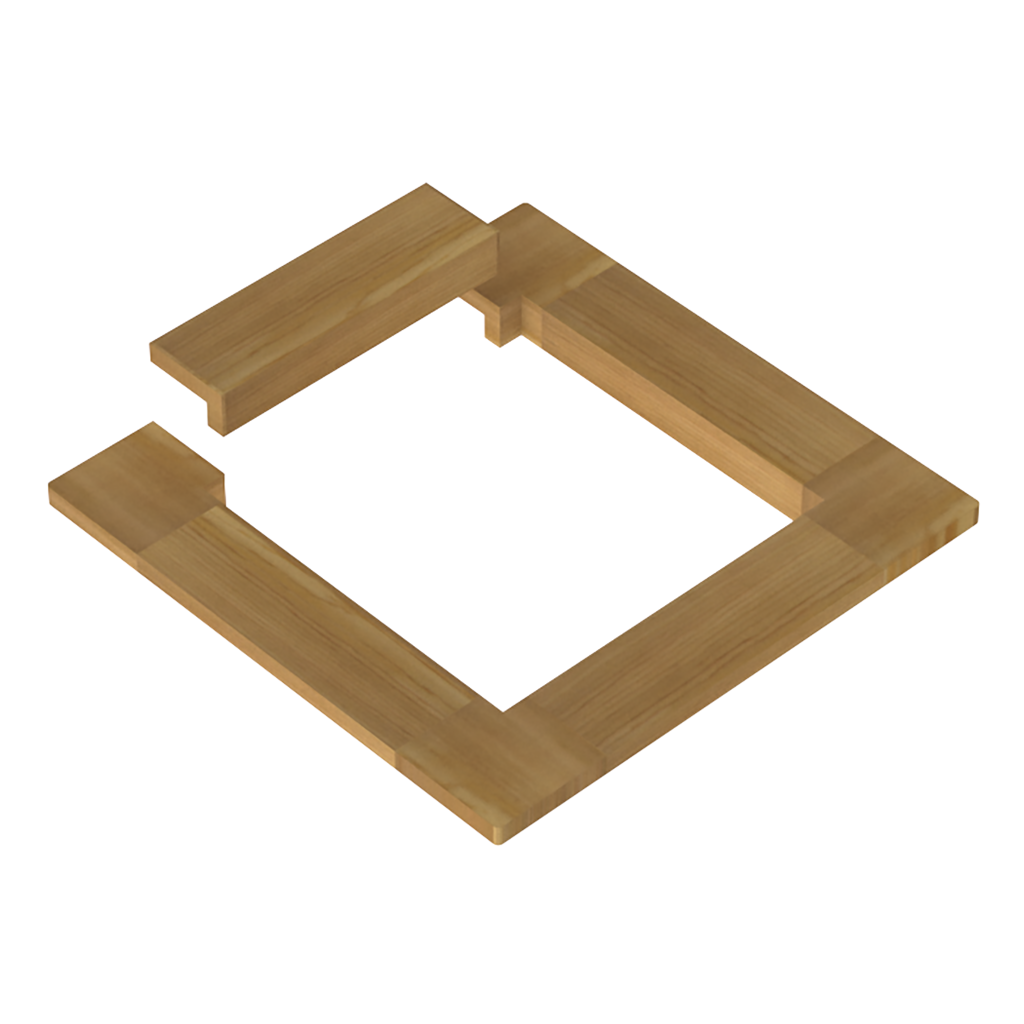

Wall Integration Collar
(Cedar/Aspen)

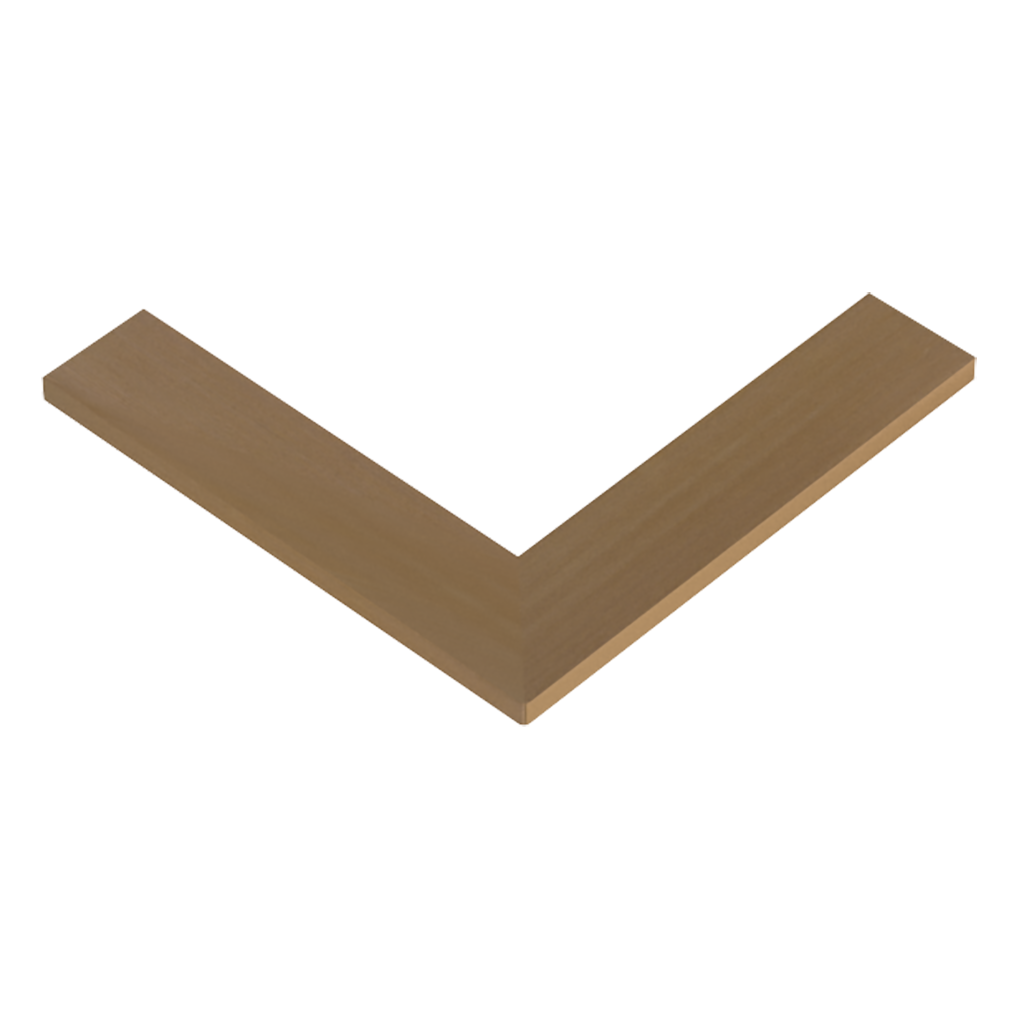

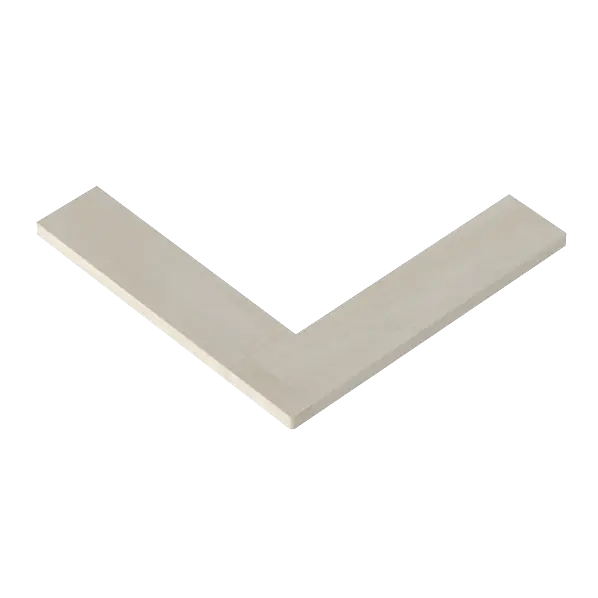

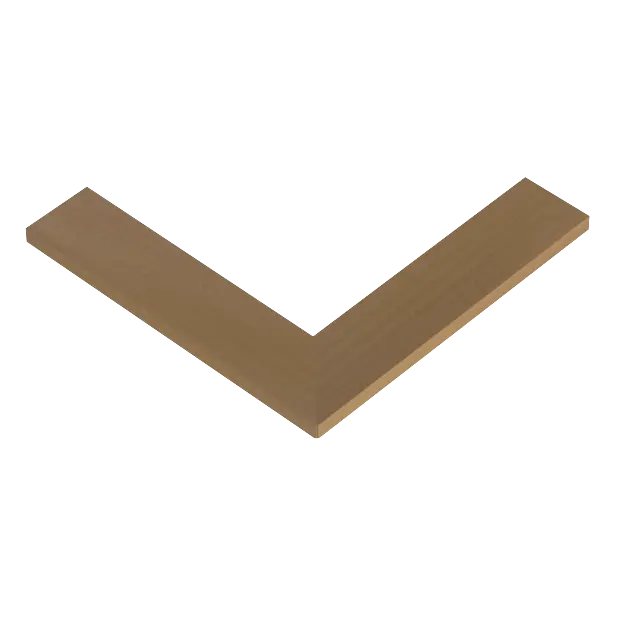

Corner Integration Collar
(Cedar/Aspen)

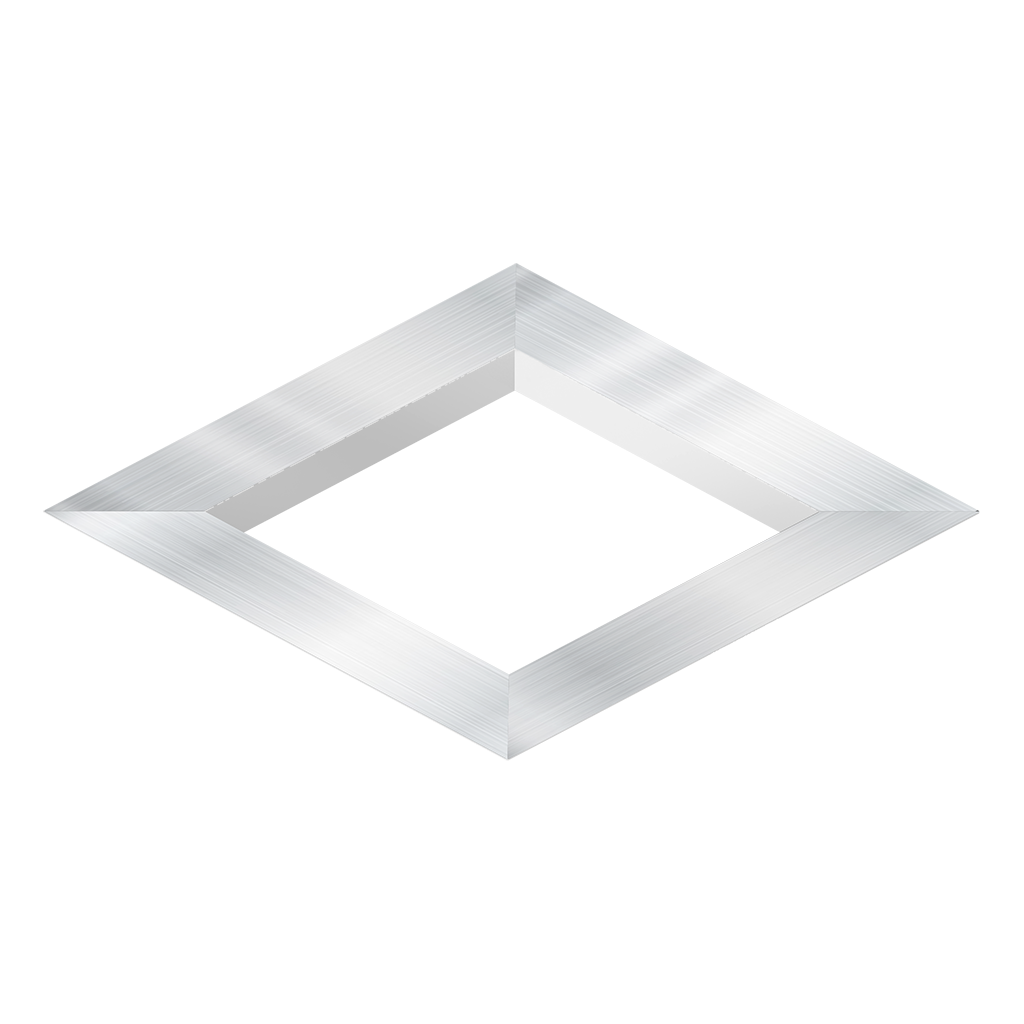

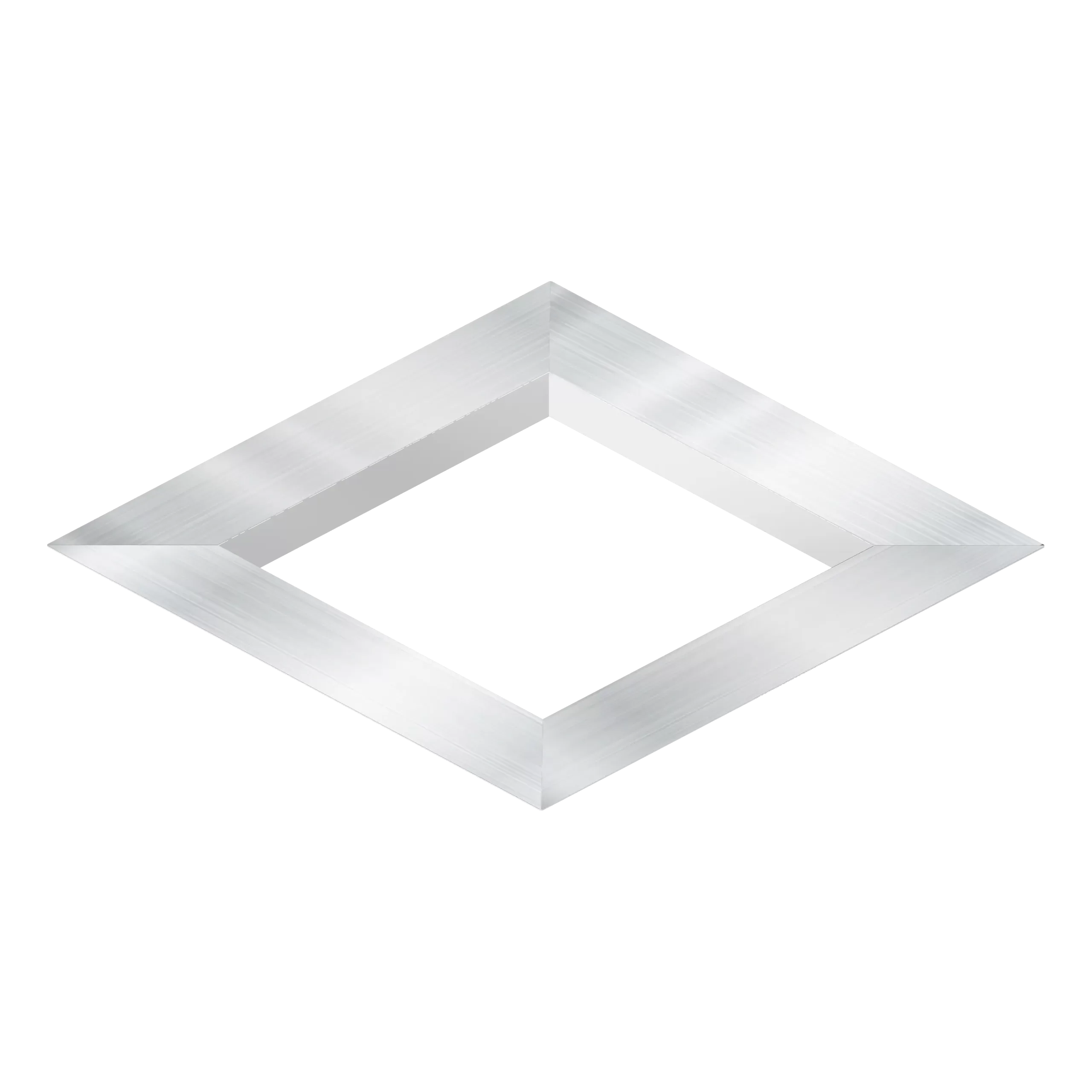

Middle Integration Collar
(Stainless Steel)

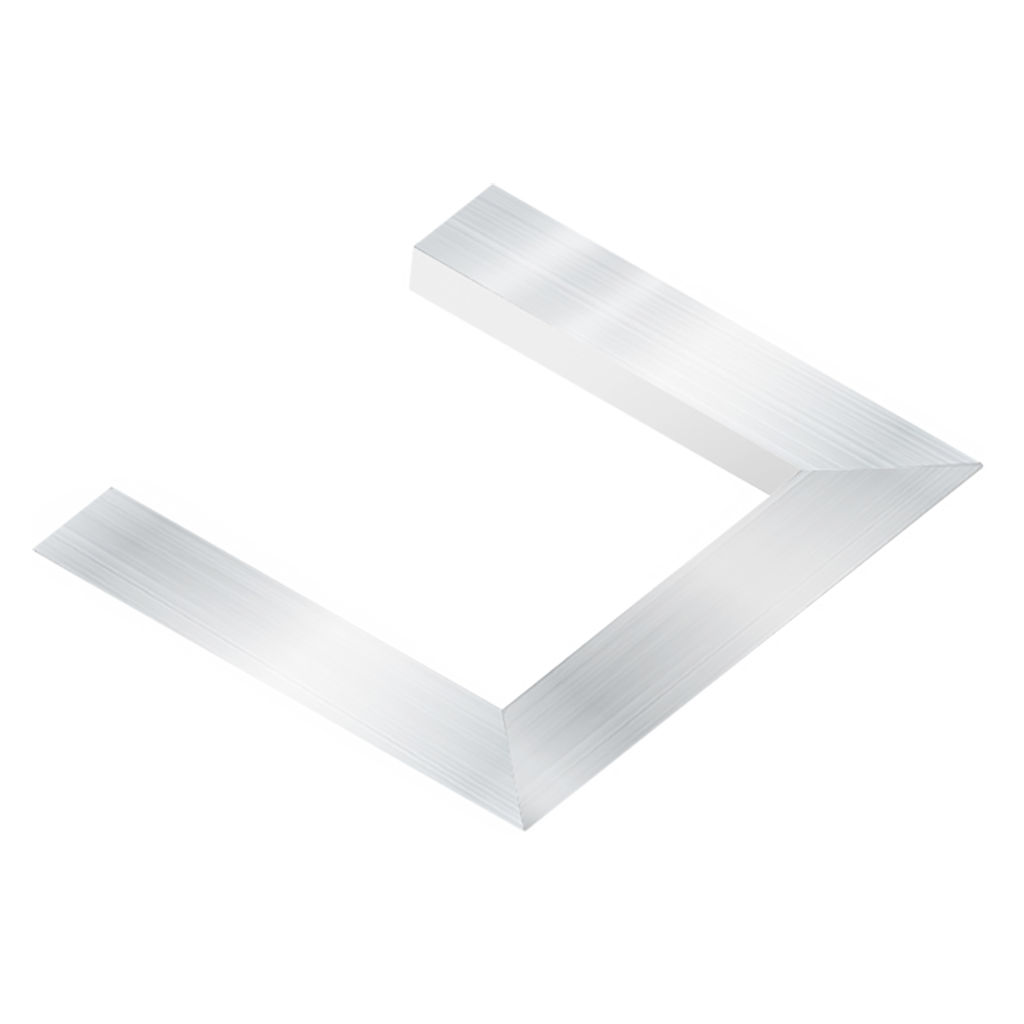

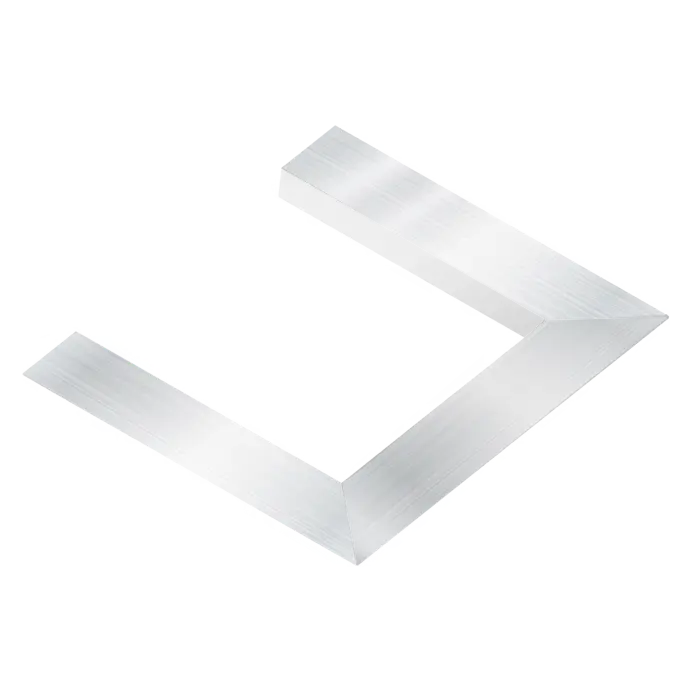

Wall Integration Collar
(Stainless Steel)

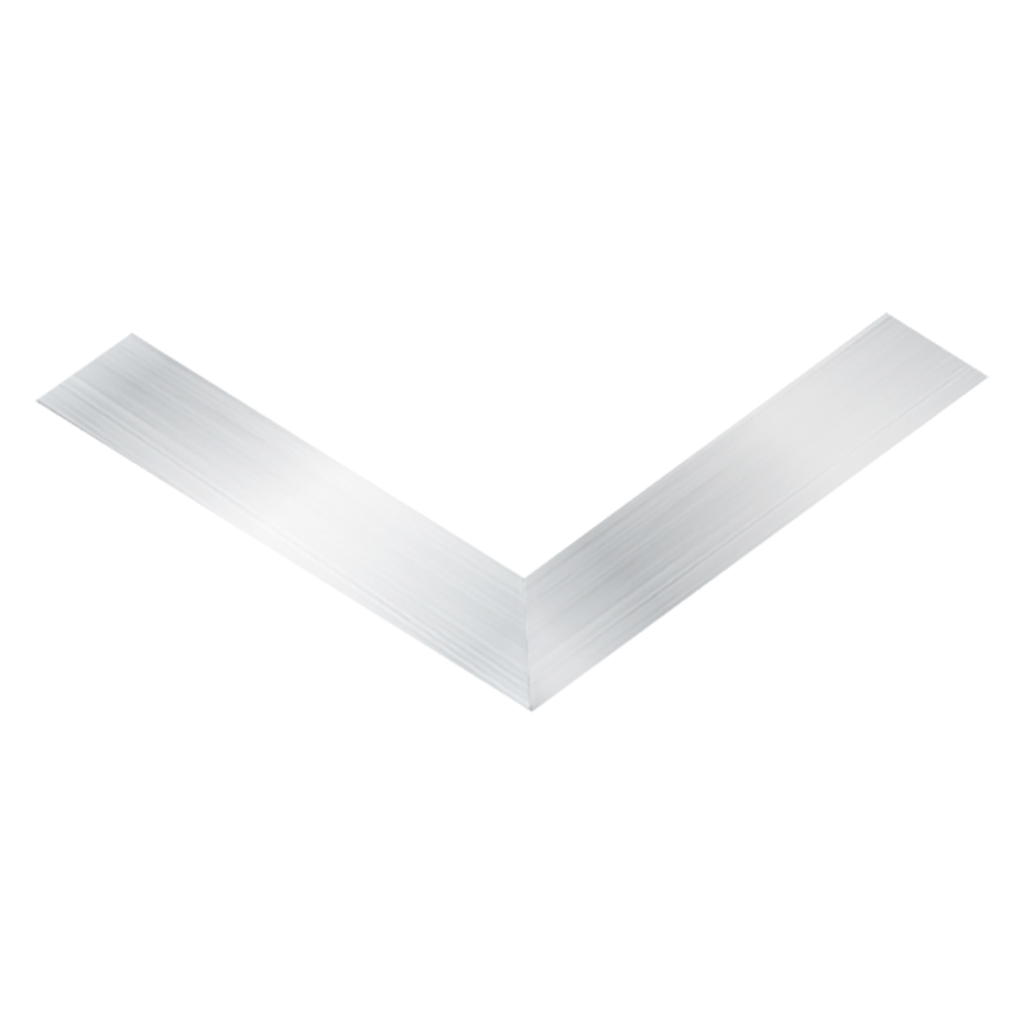

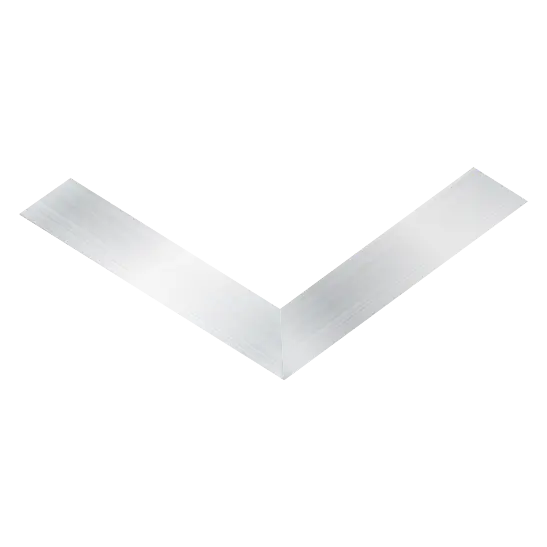

Corner Integration Collar
(Stainless Steel)

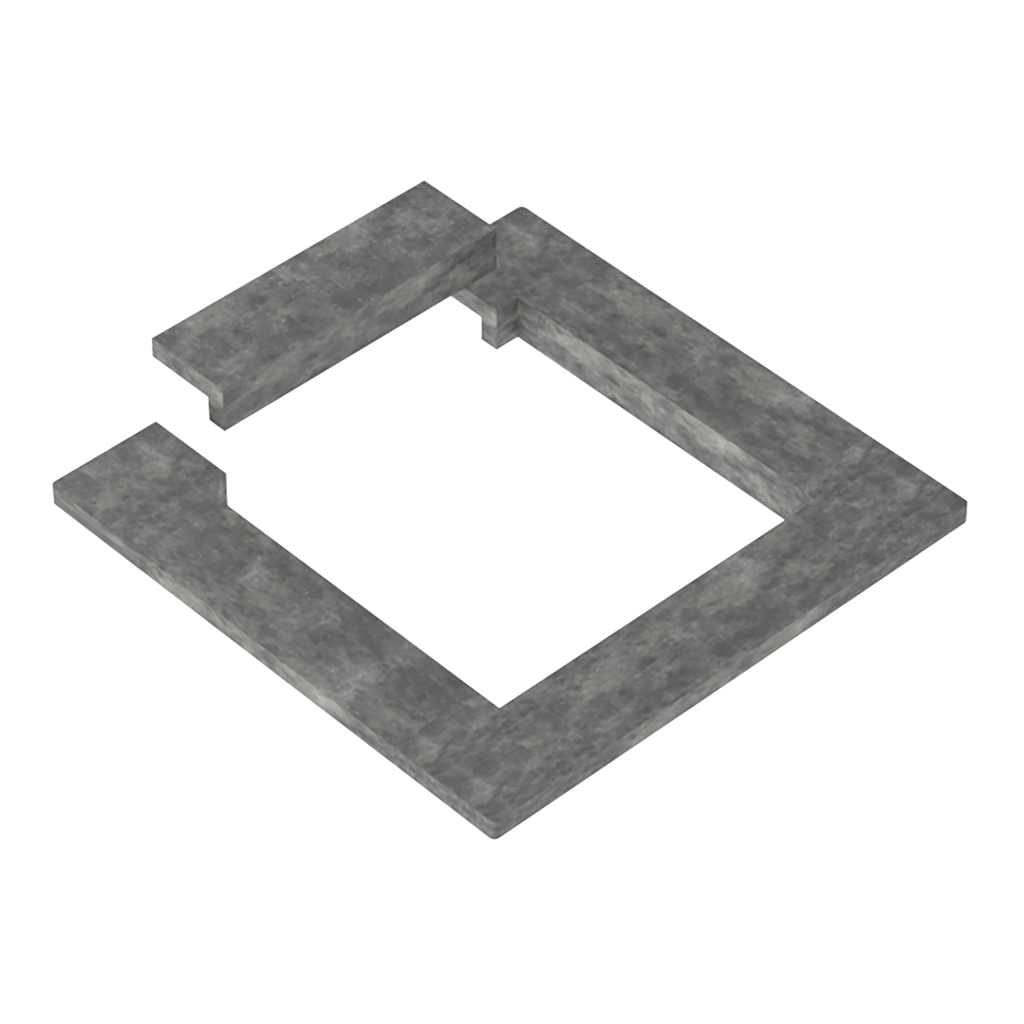

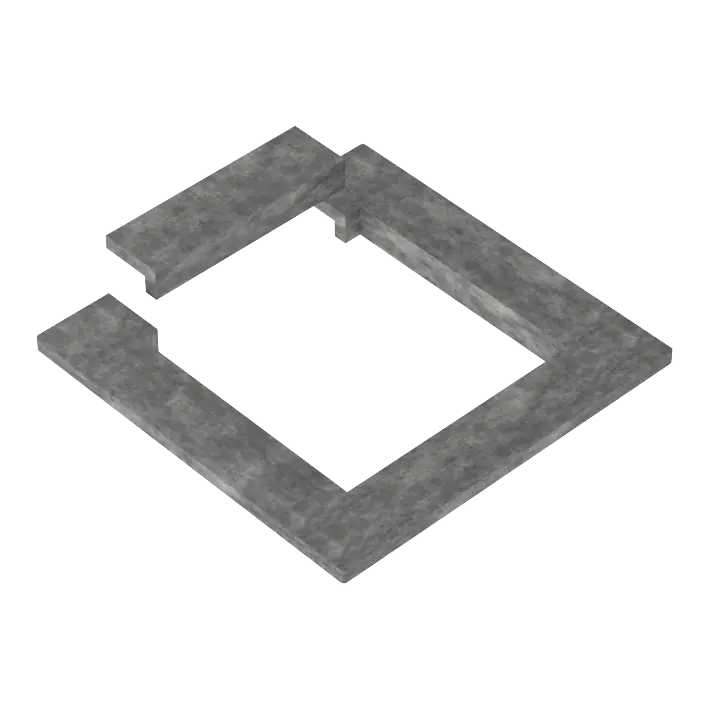

Middle Integration Collar
(Soapstone)

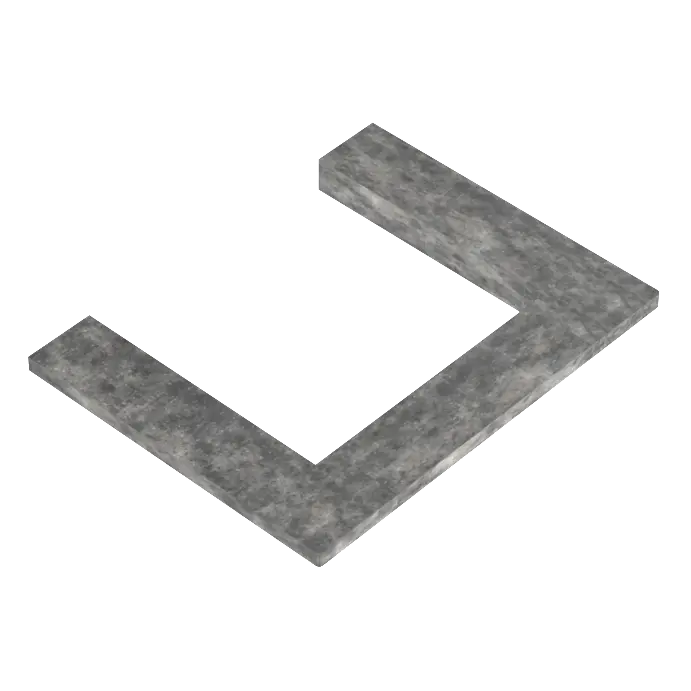

Wall Integration Collar
(Soapstone)

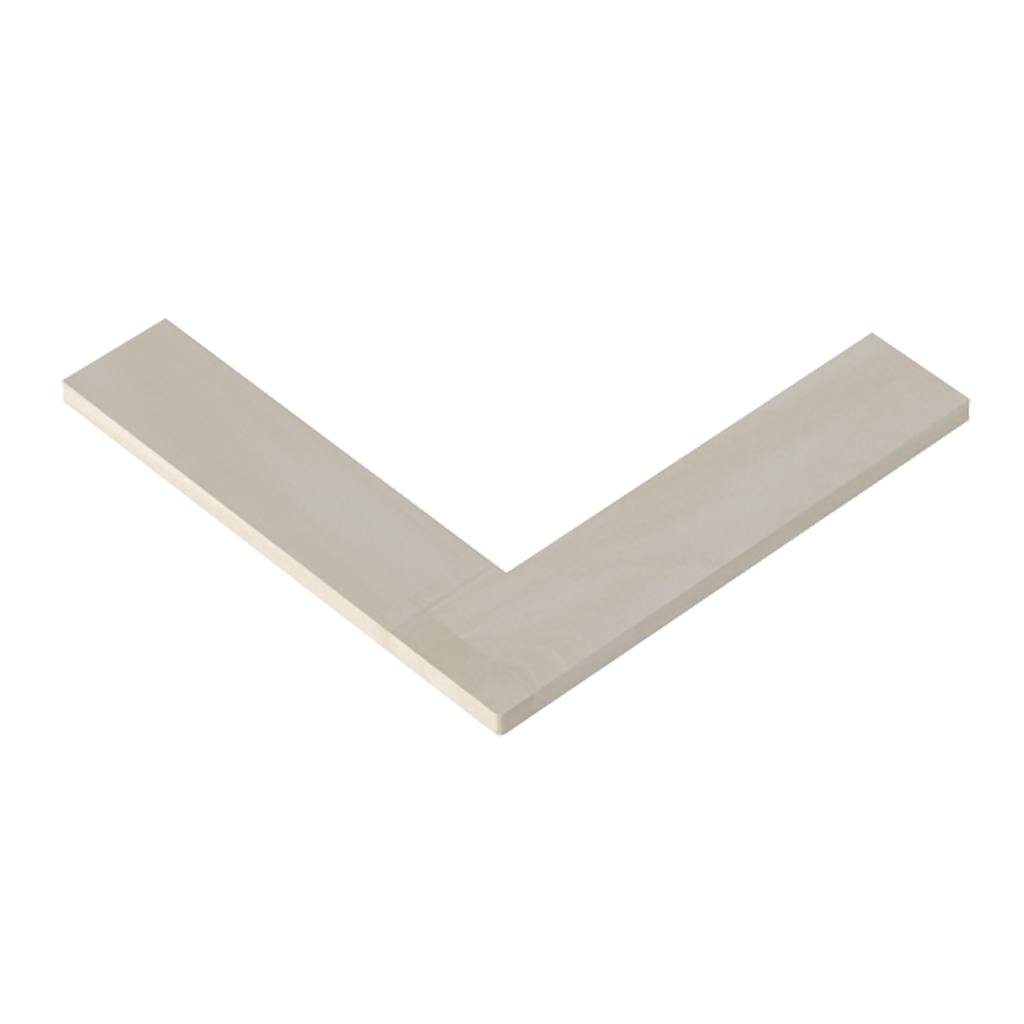

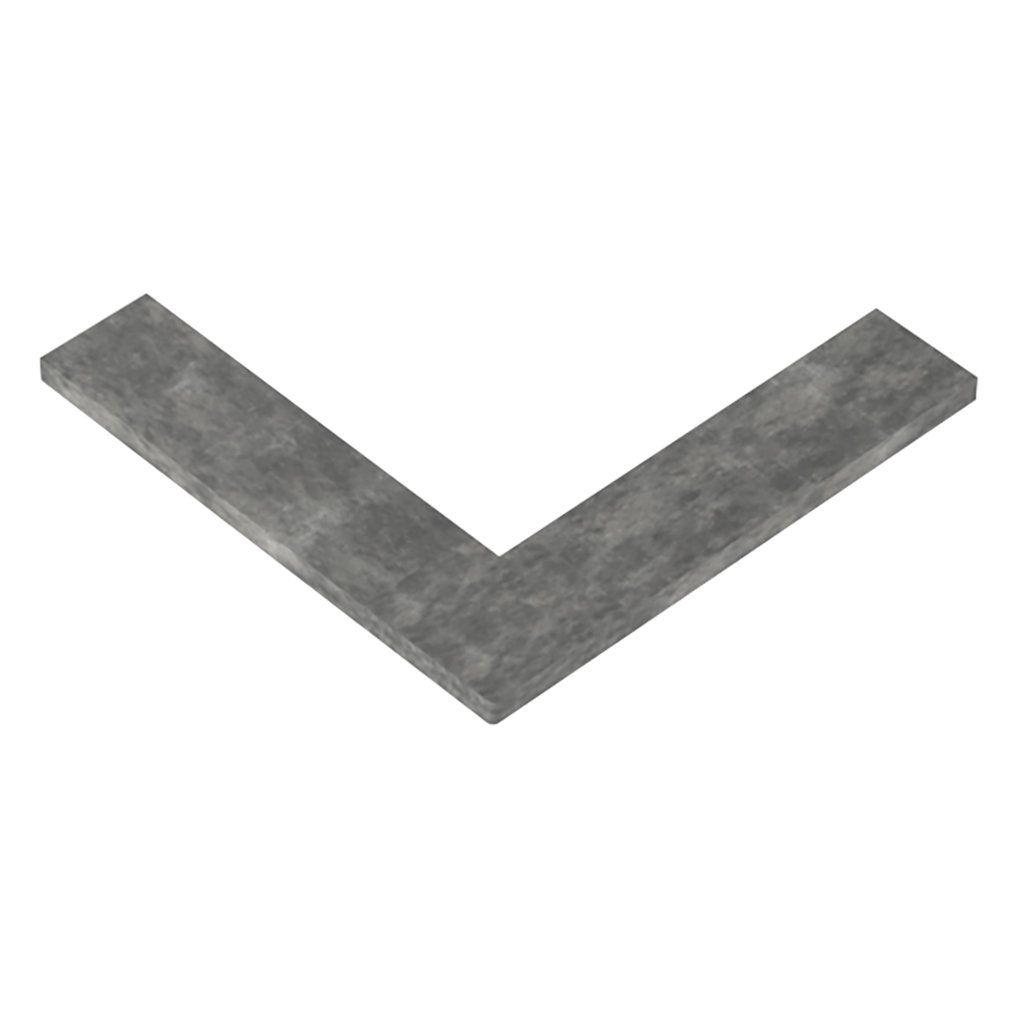

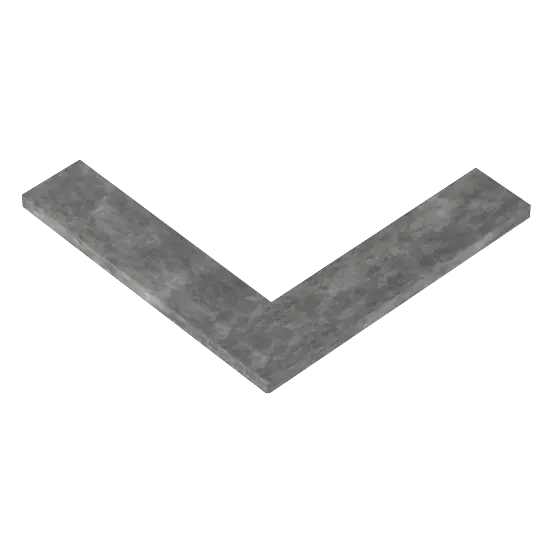

Corner Integration Collar
(Soapstone)

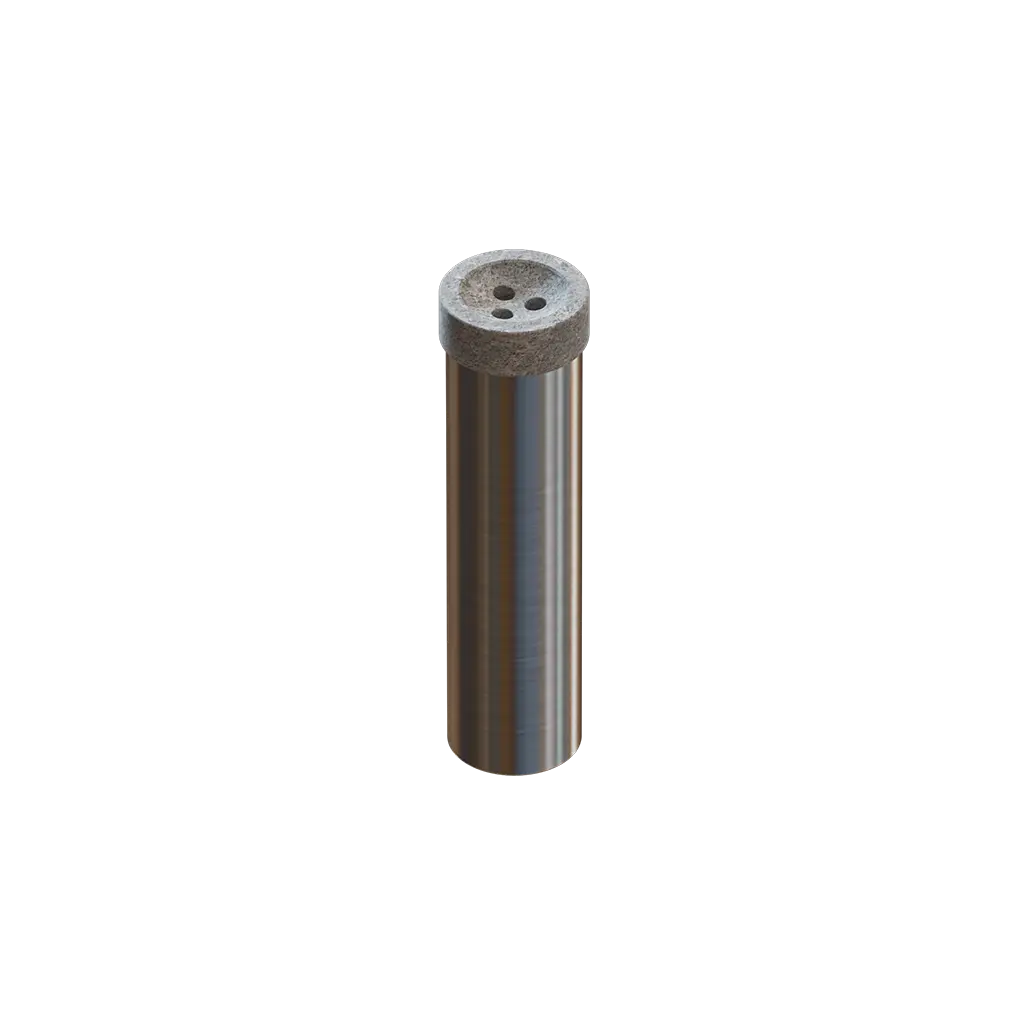

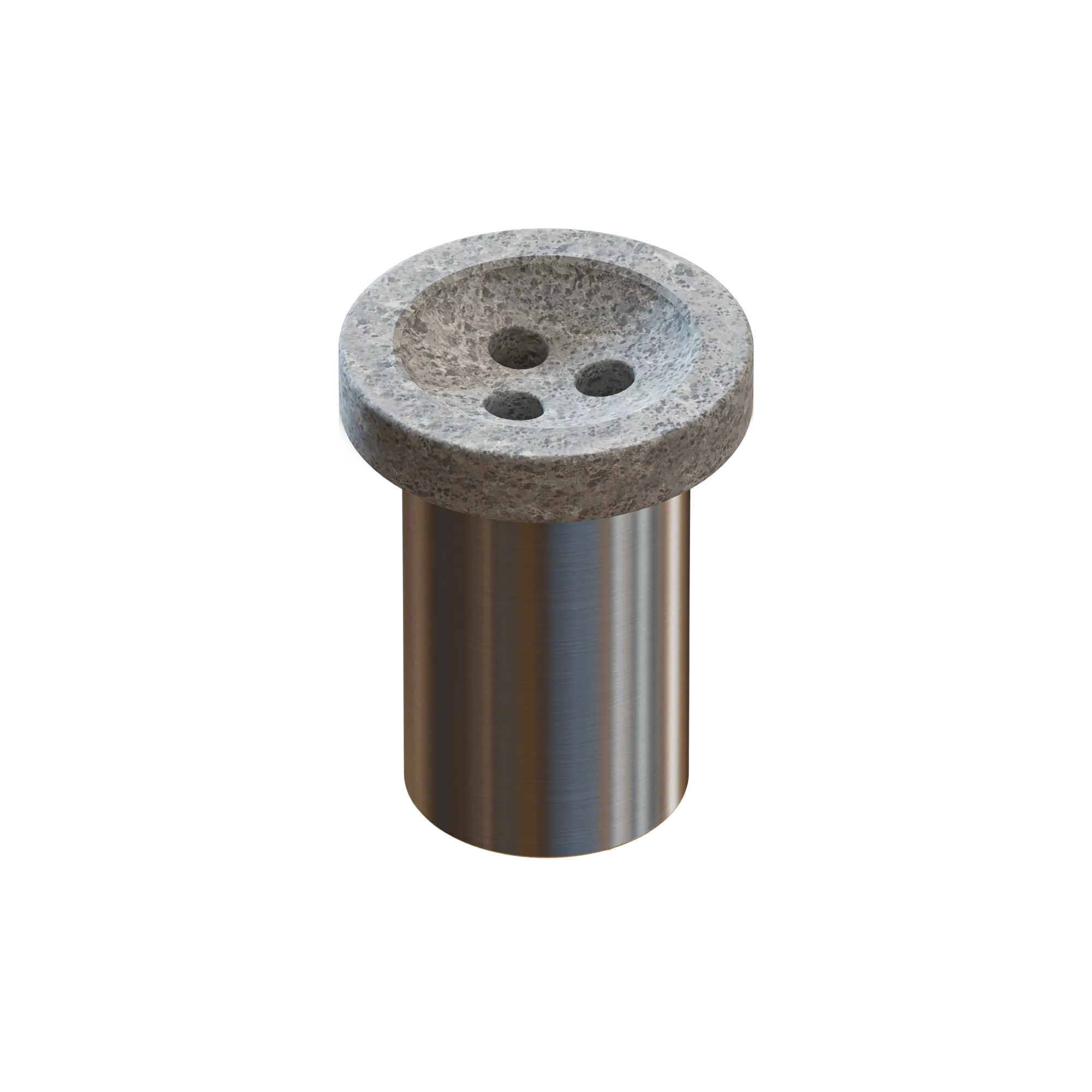

Cozy Tank
(Water volume: 0.3L)
Cozy Tank
(Water volume: 0.6L)
Sauna Stones
(Size: 20kg)
Protective Cover Accessory

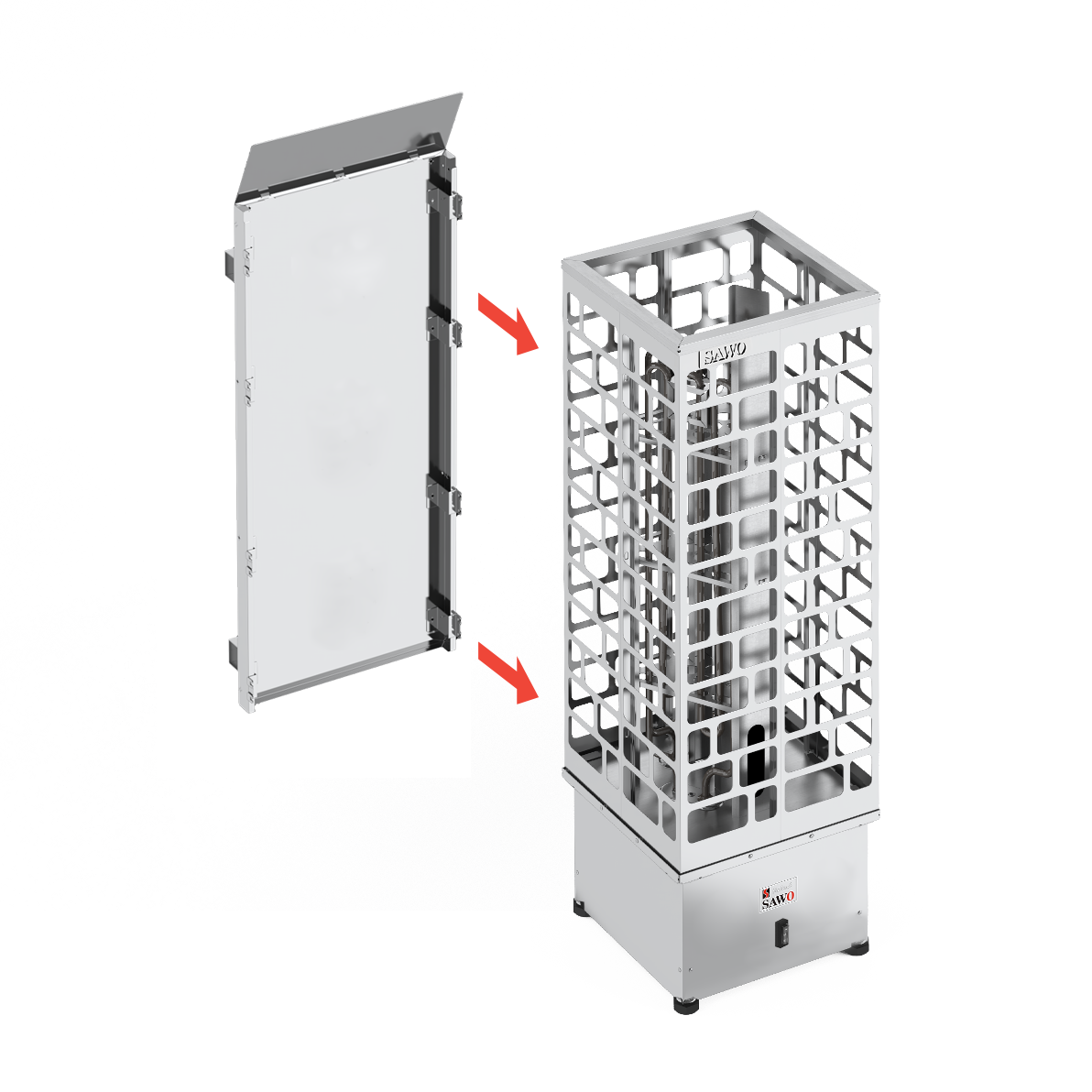

Wall Installation

The Wall Protective Cover set includes a cover sheet and a reflector that directs heat even to the lowest parts of the sauna room.

Model Size of Cover (mm)
Length Width Height
CUB-PROCOV-WL 25 x 285 x 645

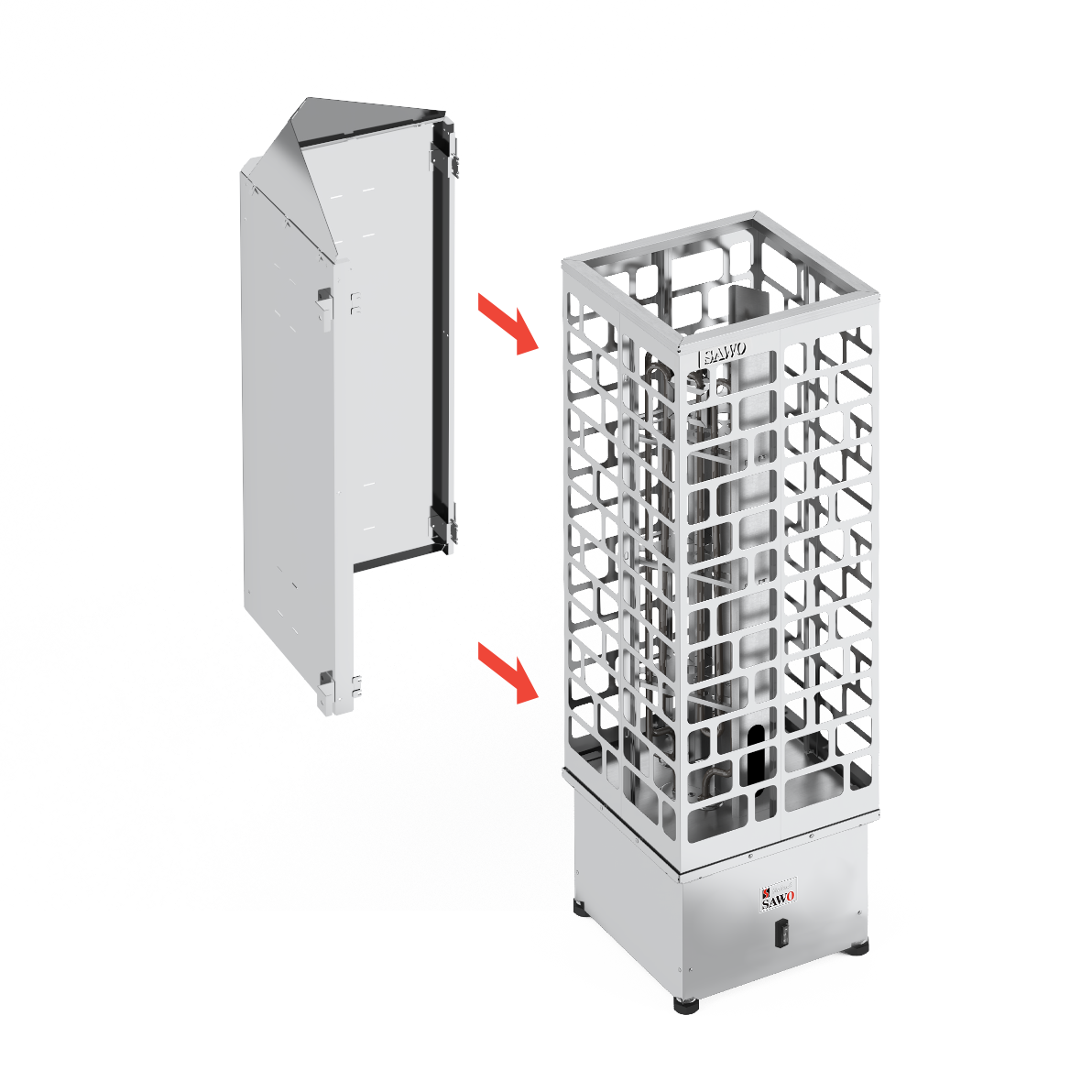

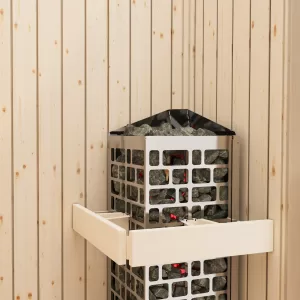

Corner Installation

The Corner Protective Cover easily turns the Cubos heater into a corner model, saving space and enabling different bench layouts. This protective cover set includes two pieces of coversheet, a connection rod and a heat reflector.

Model Size of Cover (mm)
Length Width Height
CUB-PROCOV-CNR 285 x 285 x 645
