Power Range: 4.5 – 18kW

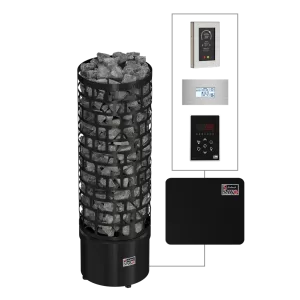

Aries Round Black NS

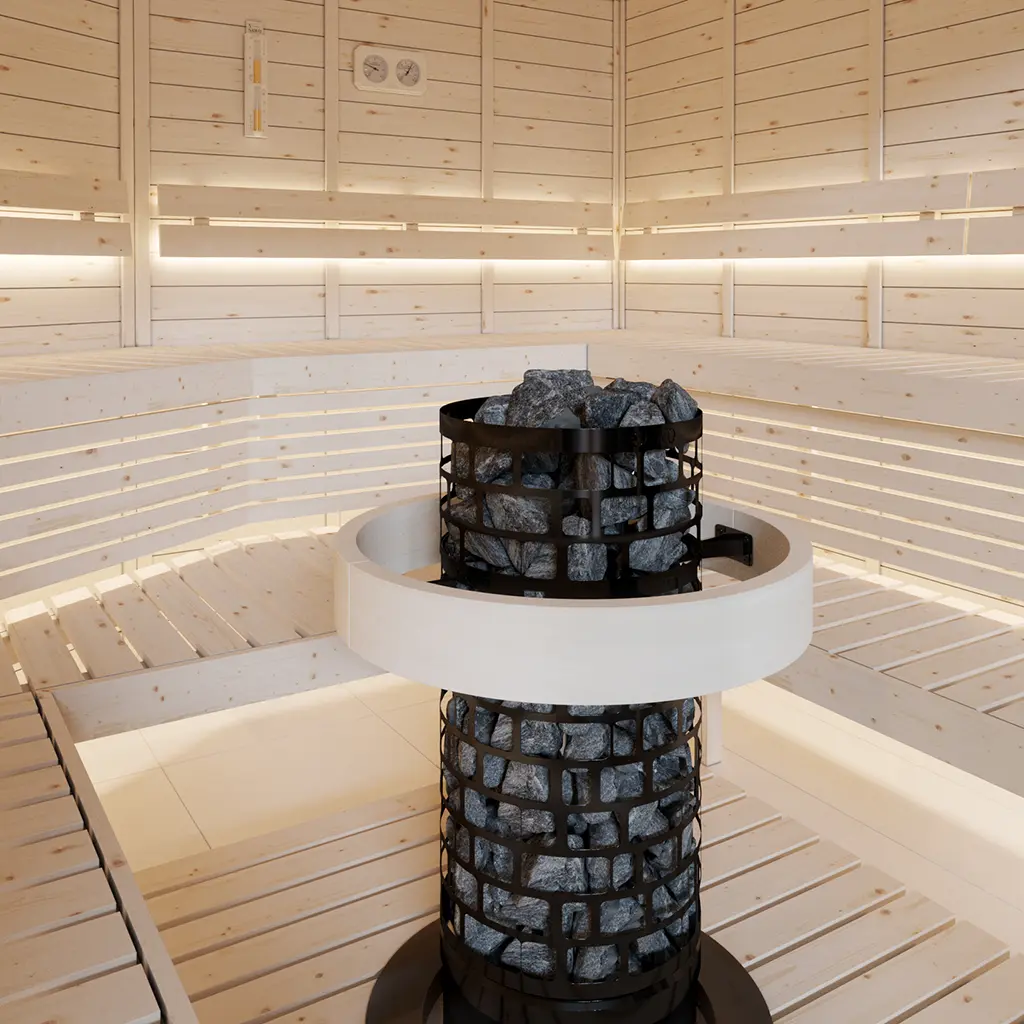

The Aries Round shares the minimalist elegance of all Tower heaters. Tall and space-saving, it distributes heat evenly and is ideal for installation in the center of the sauna or embedded into a bench. Its built-in stone spacer ensures faster, efficient heating of the sauna stones and a longer life span for the heating elements.

» Power range: 4.5 – 9.0kW

» Available control: Saunova/Innova (NS)
» Built-in stone spacer

» Adjustable legs
» Black metal casing

» Optional heater guard
» Optional integration collar

Inquire

Specifications

Technical Data

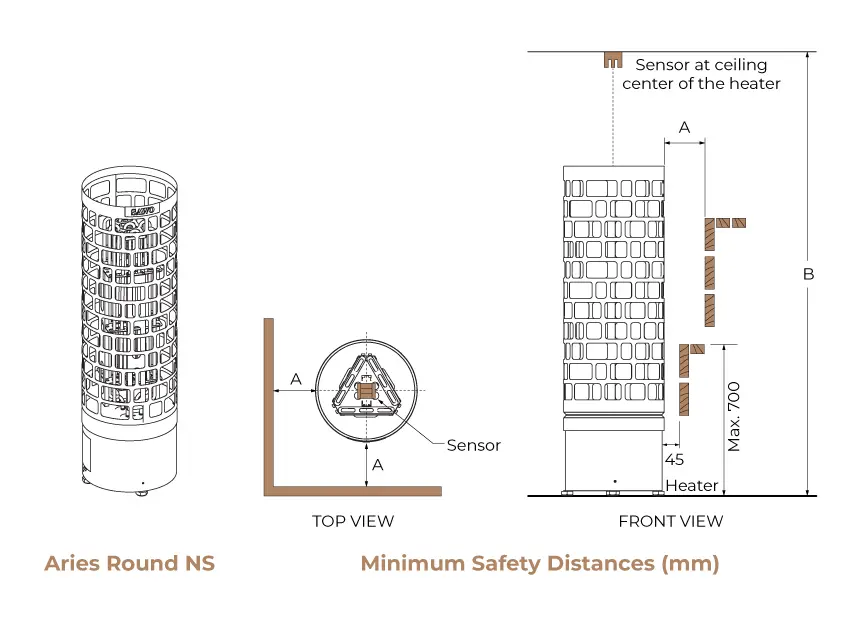

Heater Model	kW	Sauna Room min. (m3) max.	Size of Heater (mm) Length Width Height	Stones (kg)	Control	Minimum Safety Distances A \| B
ARI3-45NS-BL-P-C	4.5	3 – 6	300 x 300 x 930	60	Separate	100	1900
ARI3-60NS-BL-P-C	6.0	5 – 9	300 x 300 x 930	60	Separate	100	1900
ARI3-75NS-BL-P-C	7.5	7 – 12	300 x 300 x 930	60	Separate	100	1900
ARI3-90NS-BL-P-C	9.0	8 – 14	300 x 300 x 930	60	Separate	100	1900
ARI6-90NS-BL-P-C	9.0	8 – 14	460 x 460 x 960	110	Separate	100	1900
ARI6-105NS-BL-P	10.5	9 – 15	440 x 440 x 930	110	Separate	100	1900
ARI6-120NS-BL-P	12.0	10 – 18	440 x 440 x 930	110	Separate	100	2100
ARI6-150NS-BL-P	15.0	13 – 23	440 x 440 x 930	110	Separate	100	2100
ARI6-180NS-BL-P	18.0	15 – 26	440 x 440 x 930	110	Separate	125	2100

Resources

Aries Round Black NS Manual

Safety Features

Energy Efficiency

Durable Design

Efficient Heating

User-Friendly Controls

ACCESSORIES

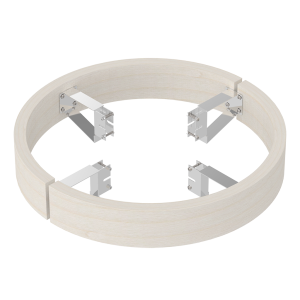

Round Heater Guard

(Cedar/Aspen)

Round Integration Collar

(Cedar/Aspen)

Round Integration Collar

(Soapstone)

Round Integration Collar

(Stainless Steel)

Round Stainless Collar

(Stainless Steel)

Cozy Tank

(Water volume: 0.3L)

Cozy Tank

(Water volume: 0.6L)

Sauna Stones

(Size: 20kg)

Decorative Stones

(Size: 32 pieces)

Safety Switch

(Stainless Steel)

Model	Size of Collar (mm)
Model	Length	Width	Height
ARI-GUARD-W3-D	570	570	110
ARI-GUARD-W3-A	570	570	110
ARI-GUARD-W6-D	700	700	110
ARI-GUARD-W6-A	700	700	110

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-W4-D \| A	485	485	45
TH-COLLAR-W6-D \| A	540	540	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-S2	507	507	45
TH-COLLAR-S4	560	560	45
TH-COLLAR-S6	620	620	45
TH-COLLAR-S9	690	690	45
TH-COLLAR-S12	790	790	45

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-ST2	460	460	42
TH-COLLAR-ST4	540	540	42
TH-COLLAR-ST6	640	640	42
TH-COLLAR-ST9	720	720	42
TH-COLLAR-ST12	820	820	42

Model	Size of Collar (mm)
Model	Length	Width	Height
TH-COLLAR-V2-ST4	420	420	105

Aries Round Black NS
